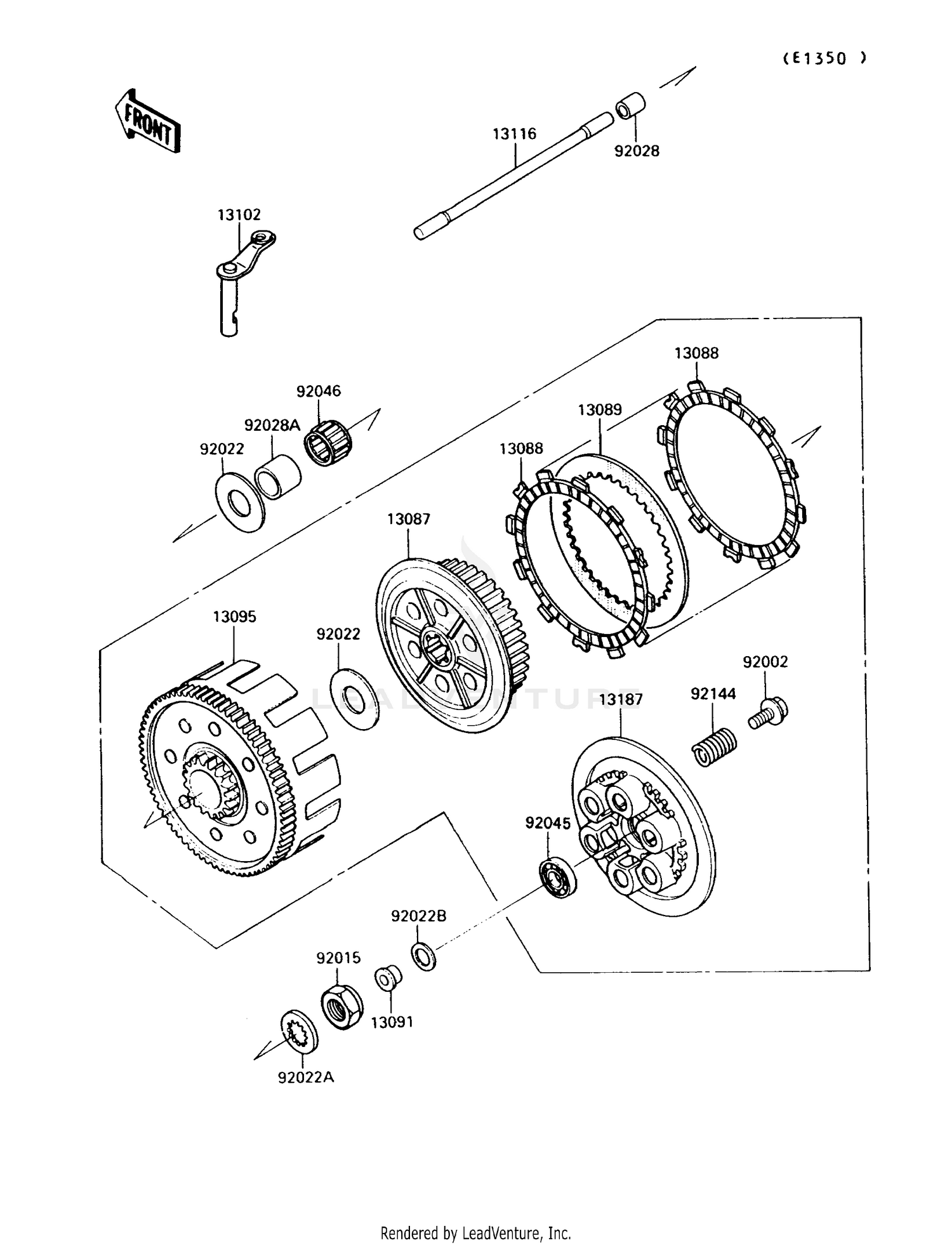

1989 Kawasaki KX250G1 CLUTCH OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13087
HUB-CLUTCH
13087-1098
Superseded by 13087-1138
|
$129.00 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-1069
Superseded by 13088-1114
|
$16.79 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE-CLUTCH
13089-1079
|
$15.28 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,ROD
13091-1582
|
$58.91 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-1171
|
$381.33 | ||
|
Available to order. Add to View Price |
|||
|
#13102
RELEASE-COMP-CLUTCH
13102-1101
|
$52.46 | ||
|
Unavailable |
|||
|
#13116
ROD-PUSH,L=202
13116-1125
|
$26.18 | ||
|
Available to order. Add to View Price |
|||
|
#13187
PLATE-CLUTCH OPERATIN
13187-1060
|
$81.35 | ||
|
Available to order. Add to View Price |
|||
|
#92002
WASHER,4.3X12.5X1
92022-1949
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,20MM
92015-1725
|
$17.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,22.3X38X2.0
92022-1836
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER
92022-1942
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,PLAIN
92022-269
|
$1.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92028
BUSHING
92028-1551
|
$33.46 | ||
|
Available to order. Add to View Price |
|||
|
#92028A
BUSHING
92028-1587
|
$27.98 | ||
|
Unavailable |
|||
|
#92045
BEARING-BALL,6001C3ML01
92045-1235
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE
92046-1193
|
$32.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92144
SPRING,CLUTCH
92144-1351
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
