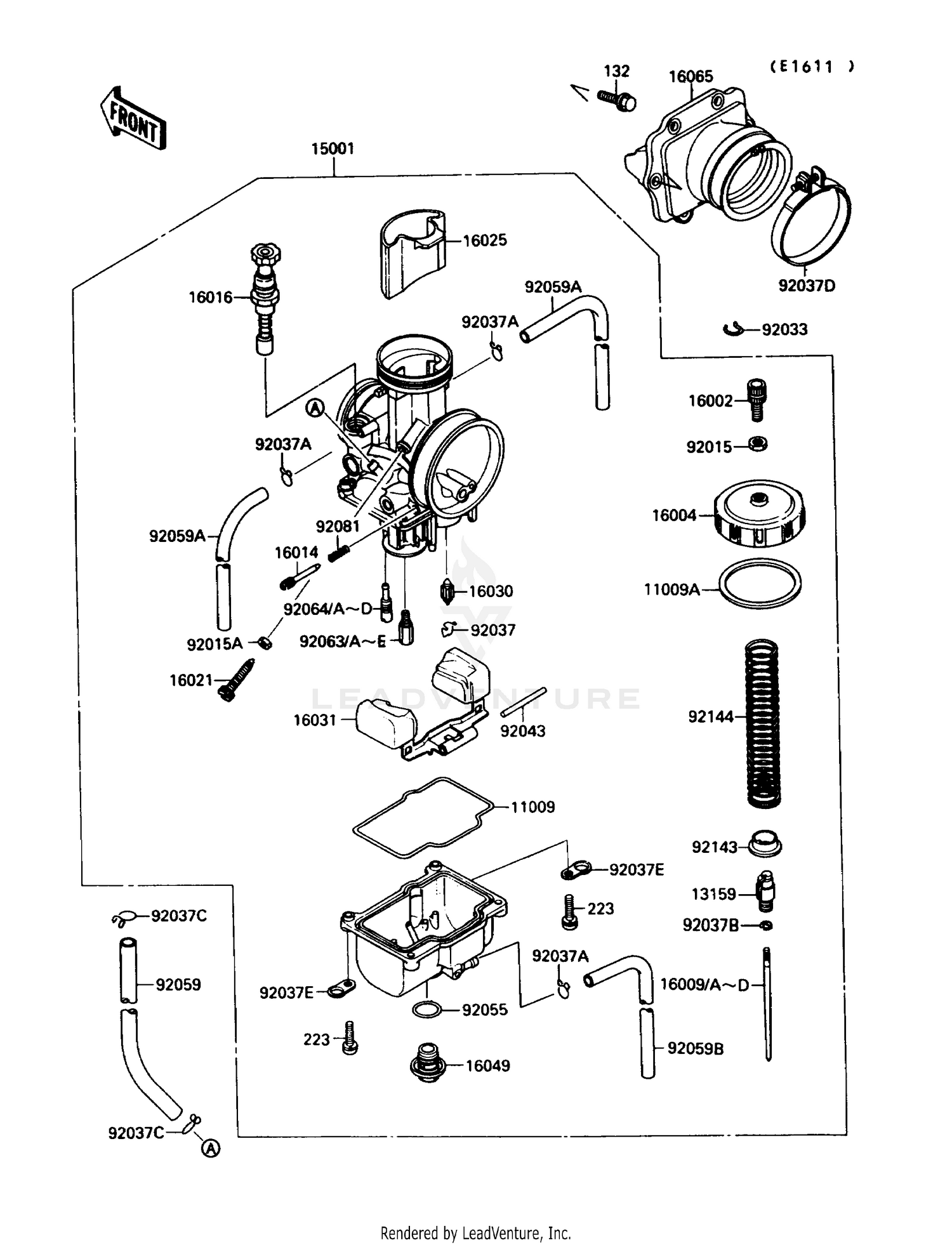

1989 Kawasaki KX250G1 CARBURETOR OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FLOAT CHAMBER
11009-1716
|
$14.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11009A
GASKET,CHAMBER CAP
11009-1717
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR,THROTTLE CA
13159-1060
Superseded by 13159-1063
|
$20.19 | ||
|
Available to order. Add to View Price |
|||
|
#15001
CARBURETOR-ASSY
15001-1464
|
$480.78 | ||
|
Available to order. Add to View Price |
|||
|
#16002
ADJUSTER-CABLE
16002-1056
|
$22.47 | ||
|
Available to order. Add to View Price |
|||
|
#16004
CAP-CHAMBER,MIXING
16004-1061
|
$50.80 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET,R1366J
16009-1406
|
$22.80 | ||
|
Available to order. Add to View Price |
|||
|
#16009A
NEEDLE-JET,R1367J
16009-1407
|
$31.58 | ||
|
Available to order. Add to View Price |
|||
|
#16009B
NEEDLE-JET,R1368J
16009-1408
|
$31.58 | ||
|
Available to order. Add to View Price |
|||
|
#16009C
NEEDLE-JET,R1369J
16009-1409
|
$31.58 | ||
|
Available to order. Add to View Price |
|||
|
#16009D
NEEDLE-JET,R1370J
16009-1410
|
$31.58 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1058
|
$19.31 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER,STARTER
16016-1075
|
$38.04 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1124
|
$23.02 | ||
|
Available to order. Add to View Price |
|||
|
#16025
VALVE-THROTTLE,CA7
16025-1151
Superseded by 16025-1163
|
$162.41 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1057
|
$44.04 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1067
|
$56.01 | ||
|
Available to order. Add to View Price |
|||
|
#16049
COVER-MAIN JET
16049-1051
|
$30.34 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1168
|
$121.13 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CABLE ADJUST LOCK
92015-1574
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,THROTTLE STOP SCR
92015-1707
|
$4.76 | ||
|
Unavailable |
|||
|
#92033
RING-SNAP
92036-018
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,FLOAT VALVE
16044-007
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-1396
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,JET NEEDLE
92037-1401
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP,TUBE
92037-147
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#92037D
CLAMP,55MM
92037-1486
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#92037E
CLAMP,HOSE
92037-1969
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,FLOAT
92043-1207
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,MAIN JET COVER
92055-1167
|
$8.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92059
TUBE,2.5X5.8X270
92059-1888
Superseded by 92059-3731
|
$8.54 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,4X7X360
92059-1898
Superseded by 92059-1941
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,3.5X6.5X390
92059-1899
|
$10.12 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN
92063-1371
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN
92063-1372
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,#172
92063-1373
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN
92063-1374
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,#178
92063-1375
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,#192
92063-1381
|
$15.68 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#52
92064-1130
|
$17.85 | ||
|
Available to order. Add to View Price |
|||
|
#92064A
JET-PILOT
92064-1144
|
$16.62 | ||
|
Available to order. Add to View Price |
|||
|
#92064B
JET-PILOT,#55
92064-1145
|
$17.85 | ||
|
Available to order. Add to View Price |
|||
|
#92064C
JET-PILOT
92064-1146
|
$18.70 | ||
|
Available to order. Add to View Price |
|||
|
#92064D
JET-PILOT
92064-1147
|
$18.70 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,ADJUST SCREW
92081-1555
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,THROTTLE VALVE
92143-1201
|
$23.07 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,THROTTLE VALVE
92144-1305
|
$17.48 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X20
132G0620
Superseded by 132BA0620
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS,4X16
223C0416
Superseded by 223AB0416
|
$3.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
