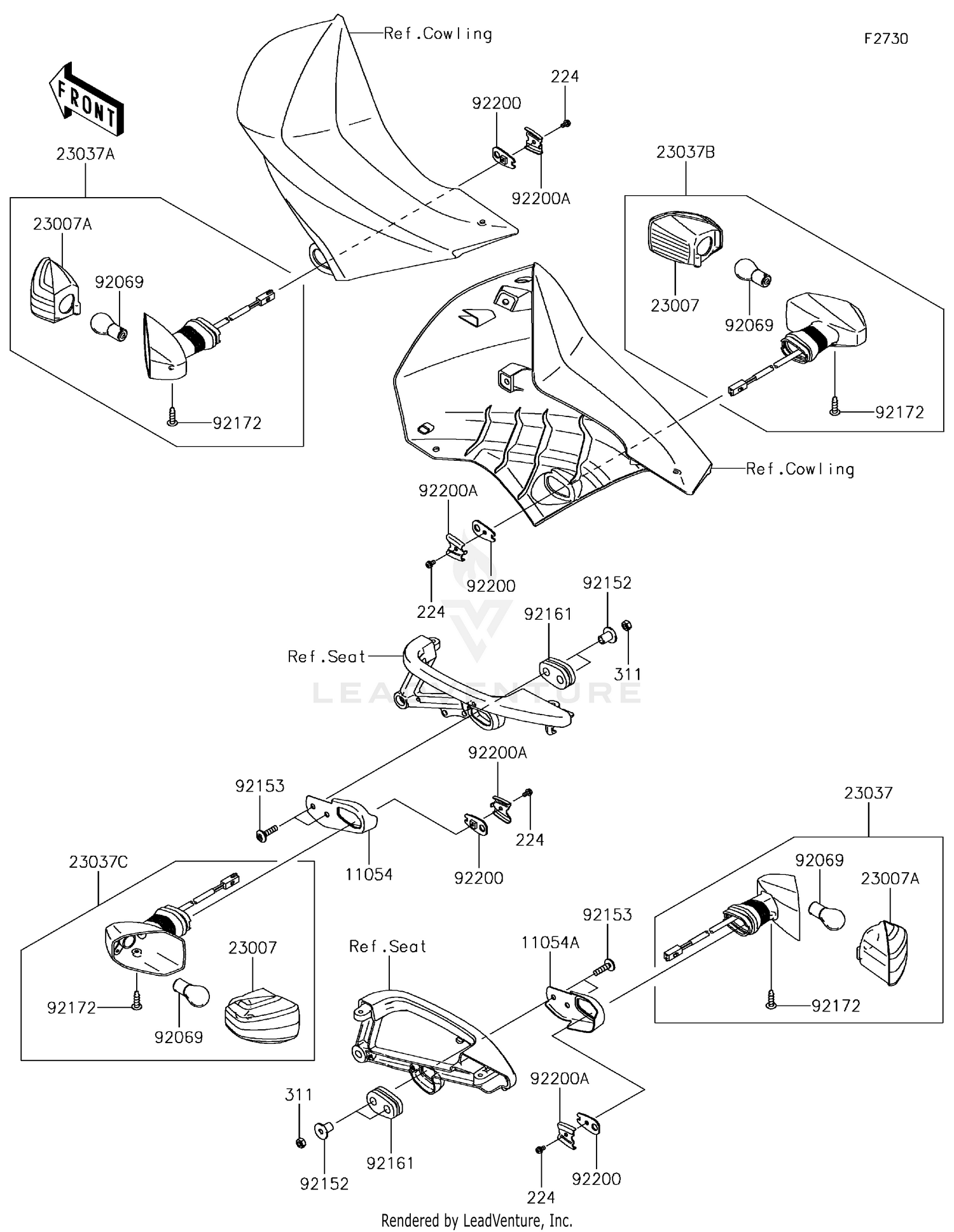

2018 Kawasaki KLR 650 CAMO Turn Signals OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#11054 BRACKET,SIGNAL LAMP,L 11054-1931-18R	$35.15
Available: Ships in 7-12 days. Add to View Price
#11054A BRACKET,SIGNAL LAMP,R 11054-1941-18R	$35.15
Available: Ships in 7-12 days. Add to View Price
#224 SCREW-PAN-WP-CROS,4X8 224AB0408	$3.41
Available: Ships in 7-12 days. Add to View Price
#23007 LENS-COMP,SIGNAL LAMP 23007-0063	$26.86
Available: Ships in 7-12 days. Add to View Price
#23007A LENS-COMP,SIGNAL LAMP 23007-0064	$26.86
Available: Ships in 7-12 days. Add to View Price
#23037 LAMP-ASSY-SIGNAL,RR,R 23037-0124	$79.01
Available: Ships in 7-12 days. Add to View Price
#23037A LAMP-ASSY-SIGNAL,FR,L 23037-0134	$66.37
Available: Ships in 7-12 days. Add to View Price
#23037B LAMP-ASSY-SIGNAL,FR,R 23037-0135	$66.37
Available: Ships in 7-12 days. Add to View Price
#23037C LAMP-ASSY-SIGNAL,RR,L 23037-0136	$66.37
Available: Ships in 7-12 days. Add to View Price
#311 NUT-HEX,6MM 311BA0600	$2.19
Available: Ships in 7-12 days. Add to View Price
#92069 BULB,12V 21W 92069-1125	$7.92
Available: Ships in 7-12 days. Add to View Price
#92152 COLLAR 92152-0604	$8.07
Available: Ships in 7-12 days. Add to View Price
#92153 BOLT,SOCKET,6X23 92153-1267	$2.62
Available: Ships in 7-12 days. Add to View Price
#92161 DAMPER,SIGNAL LAMP 92161-0526	$5.26
Available: Ships in 7-12 days. Add to View Price
#92172 SCREW,TAPPING 4X12 92172-0242	$3.55
Available: Ships in 7-12 days. Add to View Price
#92200 WASHER,SIGNAL LAMP 92200-0164	$3.59
Available: Ships in 7-12 days. Add to View Price
#92200A WASHER,SIGNAL LAMP 92200-0165	$3.59
Available: Ships in 7-12 days. Add to View Price
