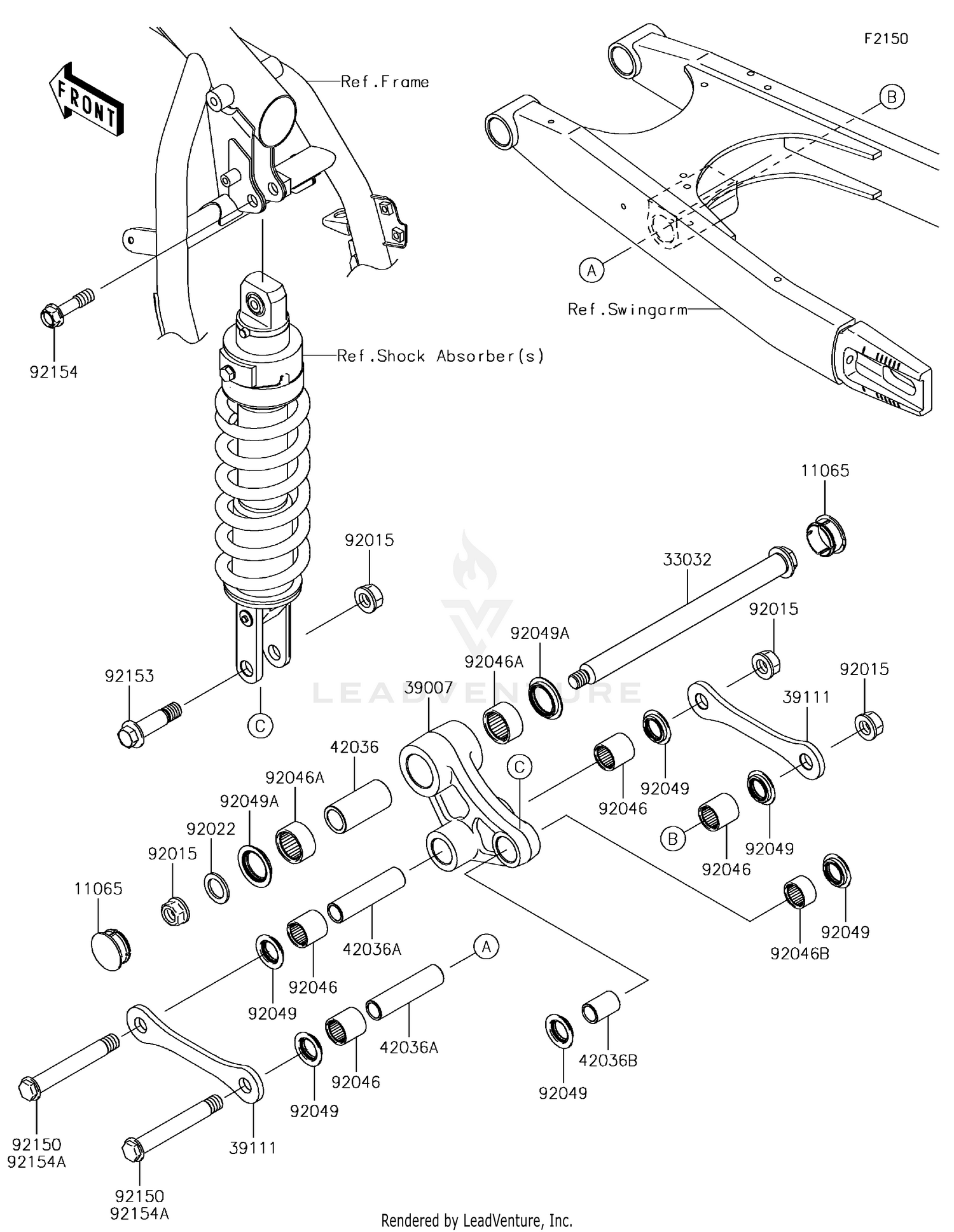

2018 Kawasaki KLR 650 CAMO Rear Suspension OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11065
CAP,32X14
11065-0822
|
$6.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33032
SHAFT-SWING ARM
33032-0026
|
$74.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39007
ARM-SUSP,UNI TRAK
39007-0075
|
$222.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39111
ROD-TIE,SUSPENSION
39111-0077
|
$25.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42036
SLEEVE,20X28X60
42036-0071
|
$28.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42036A
SLEEVE,15X20X82
42036-0072
|
$26.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42036B
SLEEVE,15X20X30
42036-0073
|
$15.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015
NUT,14MM
92015-1459
|
$9.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022
WASHER,20X30X2.3
92022-1568
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,BM202726
92046-1110
|
$22.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,BM2817
92046-1111
|
$20.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92046B
BEARING-NEEDLE,BM202715
92046-1112
|
$19.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92049
SEAL-OIL,ARM
92049-1109
|
$8.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92049A
SEAL-OIL,28X34X5.7
92049-1181
|
$8.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92153
BOLT,FLANGED,14X56
92153-1692
|
$20.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154
BOLT,FLANGED,12X45
92154-0366
|
$7.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154A
BOLT,FLANGED,14X108
92154-1427
|
$18.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
