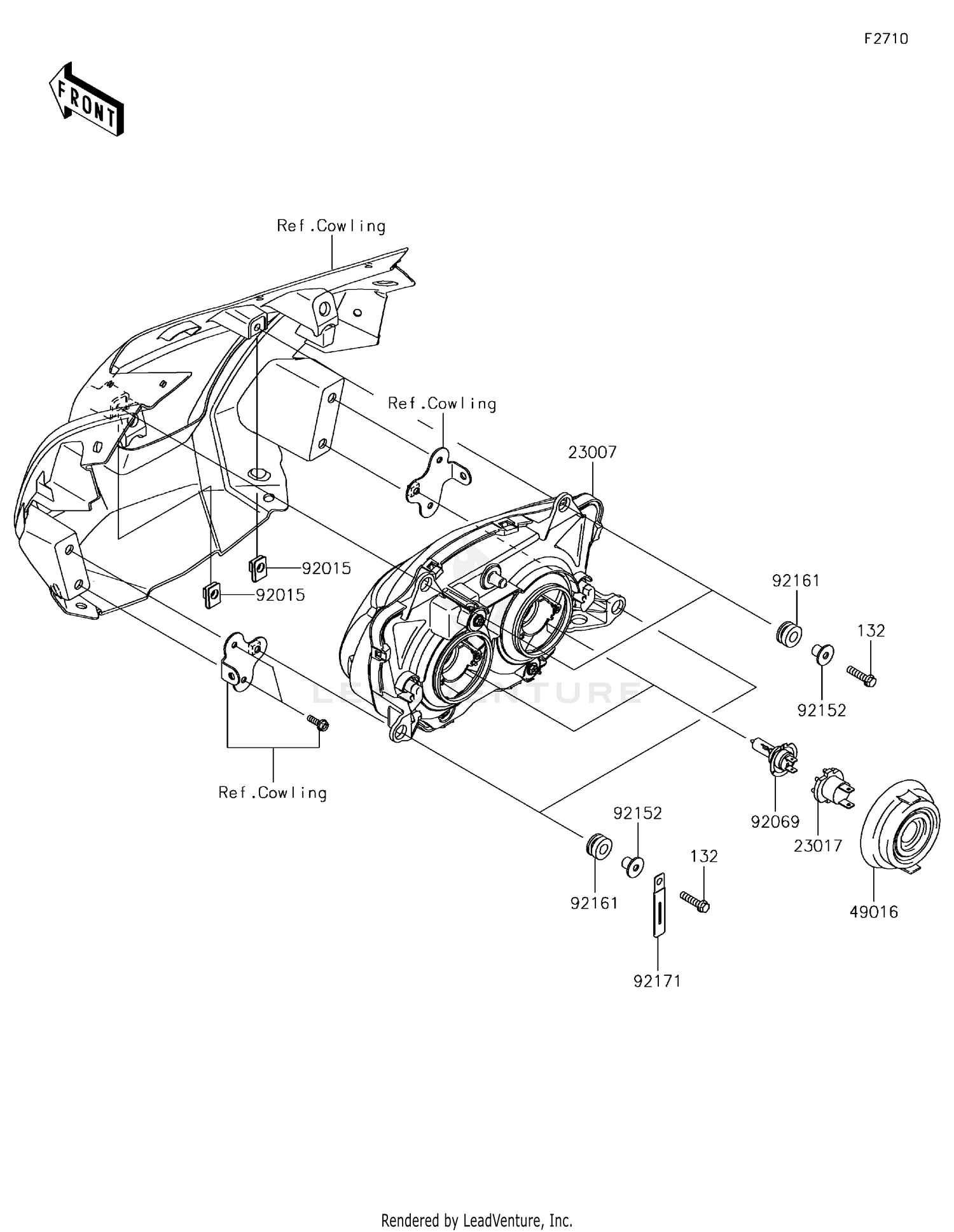

2018 Kawasaki KLR 650 CAMO Headlight(s) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X25
132BB0625
|
$2.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23007
LENS-COMP,HEAD LAMP
23007-0093
|
$455.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23017
SOCKET,HEAD LAMP
23017-0004
|
$21.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49016
COVER-SEAL,HEAD LAMP
49016-0043
|
$17.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1602
|
$6.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92069
BULB,12V 55W,H7
92069-0053
|
$39.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92152
COLLAR
92152-0599
|
$6.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92161
DAMPER
92161-0036
|
$2.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92171
CLAMP,WIRING HARNESS,L=60
92171-1425
|
$1.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
