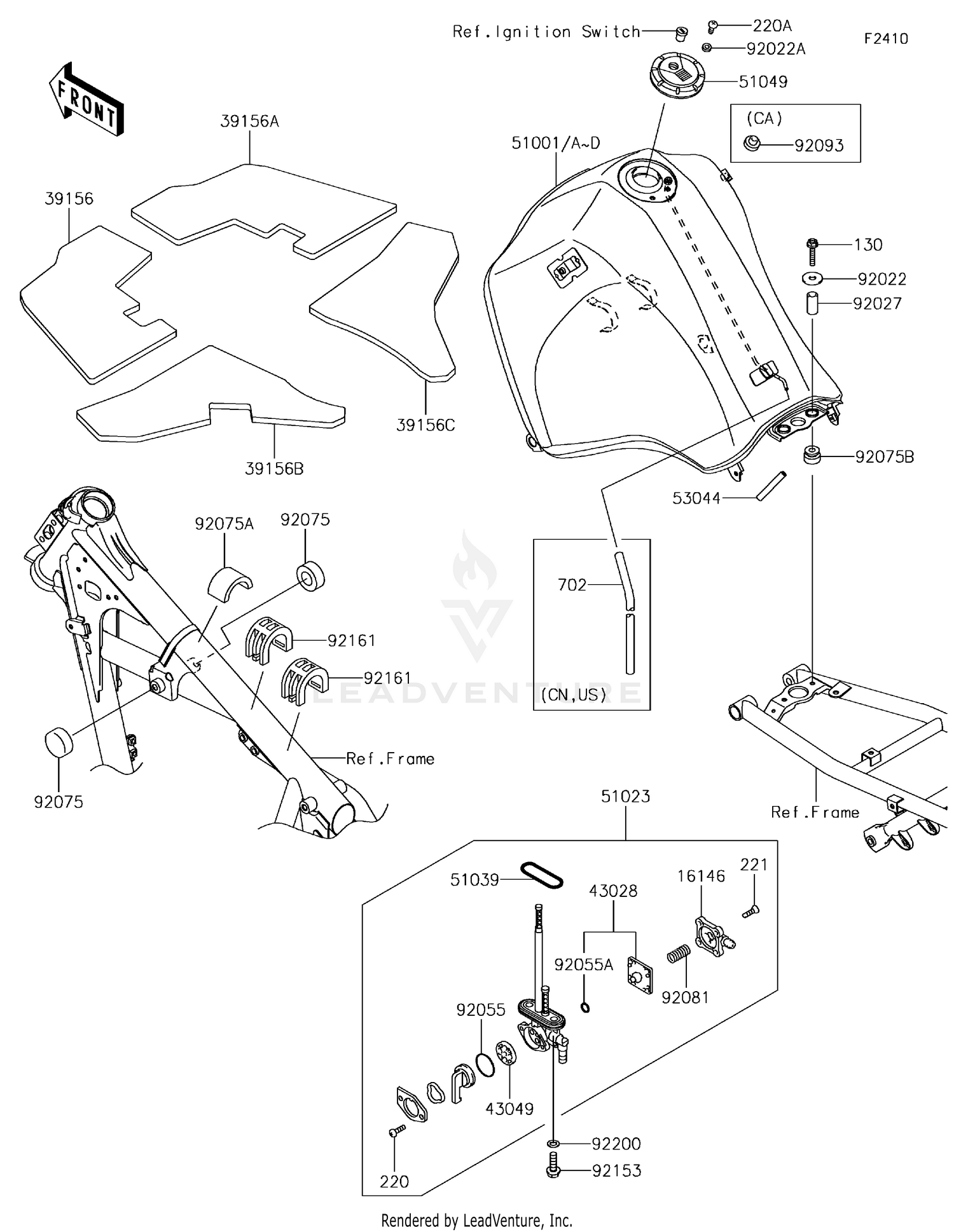

2018 Kawasaki KLR 650 CAMO Fuel Tank OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X30
130BB0630
|
$4.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16146
COVER-ASSY,TAP DIAPHR
16146-1010
|
$22.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,3X8
220AA0308
|
$0.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,5X10
220AA0510
|
$0.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#221
SCREW-CSK-CROS,4X14
221AA0414
|
$3.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39156
PAD,FUEL TANK,FR,LH
39156-0620
|
$32.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39156A
PAD,FUEL TANK,CNT,RH
39156-0621
|
$32.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39156B
PAD,FUEL TANK,RR,LH
39156-0622
|
$32.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39156C
PAD,FUEL TANK,LWR,RH
39156-0623
|
$32.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-1033
|
$21.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43049
PACKING
43049-1103
|
$5.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51001B
TANK-COMP-FUEL,M.M.C.
51001-0367-51B
|
$848.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51001D
TANK-COMP-FUEL,M.M.C.
51001-0368-51B
|
$848.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51023
TAP-ASSY,FUEL
51023-0003
Superseded by 51023-0715
|
$108.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51039
O RING
51039-003
|
$5.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-0049
|
$100.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#53044
TRIM,L=60
53044-1249
|
$6.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#702
TUBE,5X1430
702A05620
Superseded by 702A051430
|
$27.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022A
WASHER,5.1X10X1.0
92022-1977
|
$3.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92027
COLLAR,6.8X10X20
92027-1856
|
$5.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92055
RING-O
92055-1085
Superseded by 92055-3722
|
$3.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92055A
RING-O
92055-1664
|
$4.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92075
DAMPER,FUEL TANK
92075-101
|
$5.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92075A
DAMPER
92075-1507
|
$9.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92075B
DAMPER
92075-1660
|
$7.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92081
SPRING,DIAPHRAGM VALV
92081-1240
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92153
BOLT,FLANGED,6X20
92153-0746
|
$1.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92161
DAMPER,FUEL TANK
92161-1686
|
$14.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200
WASHER,6.5X11.5X0.8
92200-0117
|
$2.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
