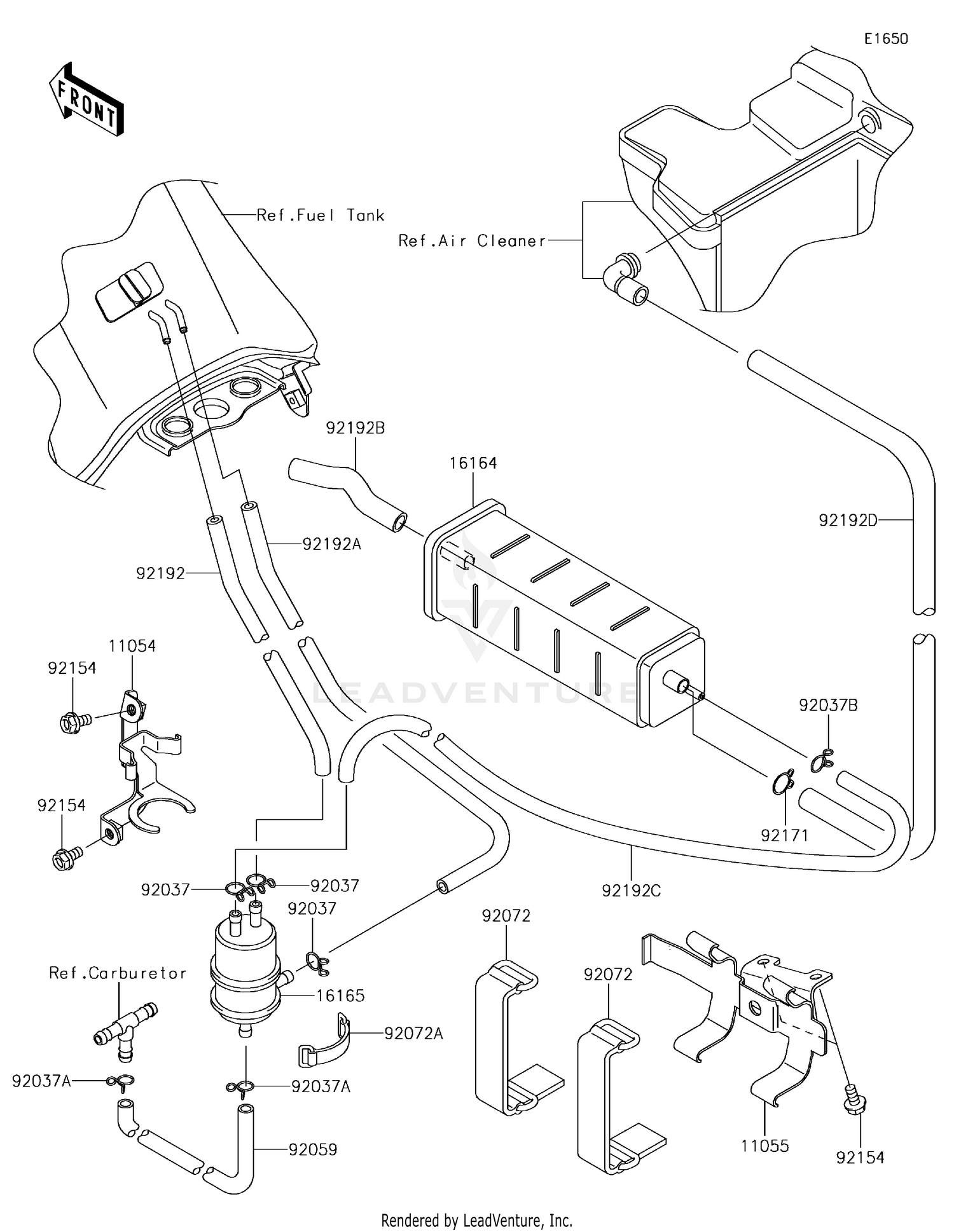

2018 Kawasaki KLR 650 CAMO Fuel Evaporative System(CA) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#11054 BRACKET,SEPARATOR 11054-0494	$36.44
Available: Ships in 7-12 days. Add to View Price
#11055 BRACKET,CANISTER 11055-1266	$28.74
Available: Ships in 7-12 days. Add to View Price
#16164 CANISTER 16164-0009	$129.23
Available: Ships in 7-12 days. Add to View Price
#16165 SEPARATOR 16165-1001	$84.12
Available: Ships in 7-12 days. Add to View Price
#92037 CLAMP,TUBE 92037-147	$6.57
Available: Ships in 7-12 days. Add to View Price
#92037A CLAMP 92037-1712	$4.66
Available: Ships in 7-12 days. Add to View Price
#92037B CLAMP,14MM 92037-1862	$6.12
Available: Ships in 7-12 days. Add to View Price
#92059 TUBE,4X9X935,WHITE 92059-1804 Superseded by 92059-1916	$17.89
Available: Ships in 7-12 days. Add to View Price
#92072 BAND,L=90 92072-0135	$16.77
Available: Ships in 7-12 days. Add to View Price
#92072A BAND,L=50 92072-1419	$14.93
Available: Ships in 7-12 days. Add to View Price
#92154 BOLT,FLANGED,6X12 92154-1050	$1.85
Available: Ships in 7-12 days. Add to View Price
#92171 CLAMP 92171-0576 Superseded by 92037-1712	$4.66
Unavailable
#92192 TUBE,5X9X400 92192-0519	$43.32
Available: Ships in 7-12 days. Add to View Price
#92192A TUBE,5X10X300 92192-0520	$35.07
Available: Ships in 7-12 days. Add to View Price
#92192B TUBE,AIR INTAKE,CANIS 92192-0743	$27.91
Available: Ships in 7-12 days. Add to View Price
#92192C TUBE,SEPARATOR-CANIST 92192-0758	$86.95
Available: Ships in 7-12 days. Add to View Price
#92192D TUBE,A/C-CANISTER 92192-0759	$72.92
Available: Ships in 7-12 days. Add to View Price
