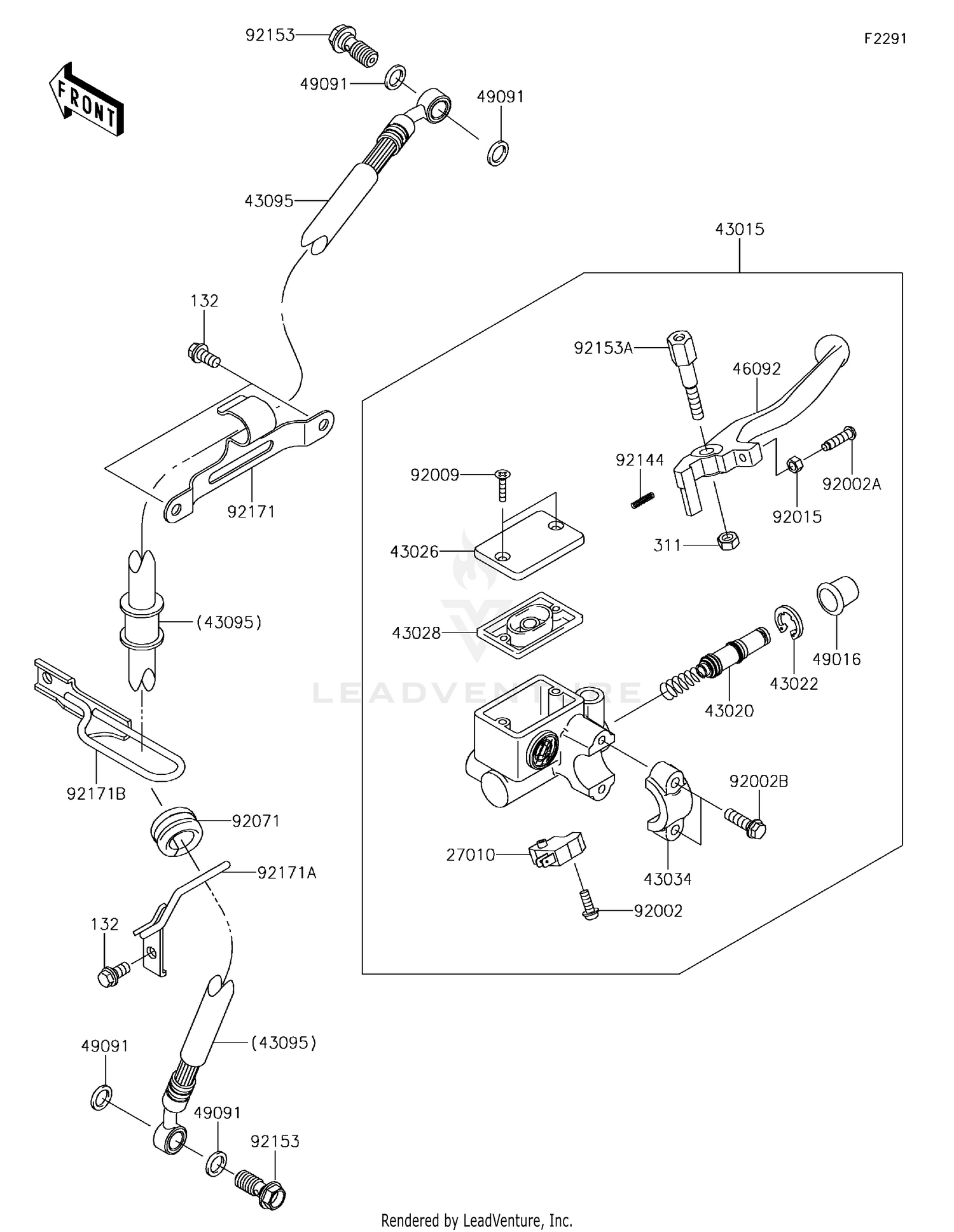

2018 Kawasaki KLR 650 CAMO Front Master Cylinder OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X12
132BB0612
|
$1.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27010
SWITCH,BRAKE
27010-0025
Superseded by 27010-1170
|
$26.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311BB0600
|
$1.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-0077
Superseded by 43015-0735
|
$285.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1104
|
$48.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43022
STOPPER-BRAKE,PISTON
43022-1010
|
$4.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1074
|
$23.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-1061
|
$15.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43034
HOLDER-BRAKE,MASTER CYLINDER
43034-1016
|
$18.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43095
HOSE-BRAKE,FR
43095-0255
|
$119.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46092
LEVER-GRIP,FRONT BRAKE
46092-1175
|
$20.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49016
COVER-SEAL,MASTER CYLINDER
49016-1044
|
$8.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
|
$2.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92002
BOLT,SCREW,4X12
92002-1323
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92002A
BOLT,ADJUST
92002-1893
|
$6.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92002B
BOLT
92002-1894
|
$5.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009
SCREW,4MM
92009-1458
|
$3.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015
NUT,ADJUST
92015-1642
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92071
GROMMET,15X20X16
92071-0056
|
$3.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92144
SPRING,RETURN
92144-1103
|
$8.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92153
BOLT,OIL,L=23
92153-0627
|
$5.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92153A
BOLT,LEVER SET
92153-0790
|
$17.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92171
CLAMP,BRAKE HOSE
92171-0756
|
$17.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92171A
CLAMP,BRAKE HOSE,LH
92171-0943
|
$9.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92171B
CLAMP,BRAKE HOSE,RH
92171-1682
|
$12.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
