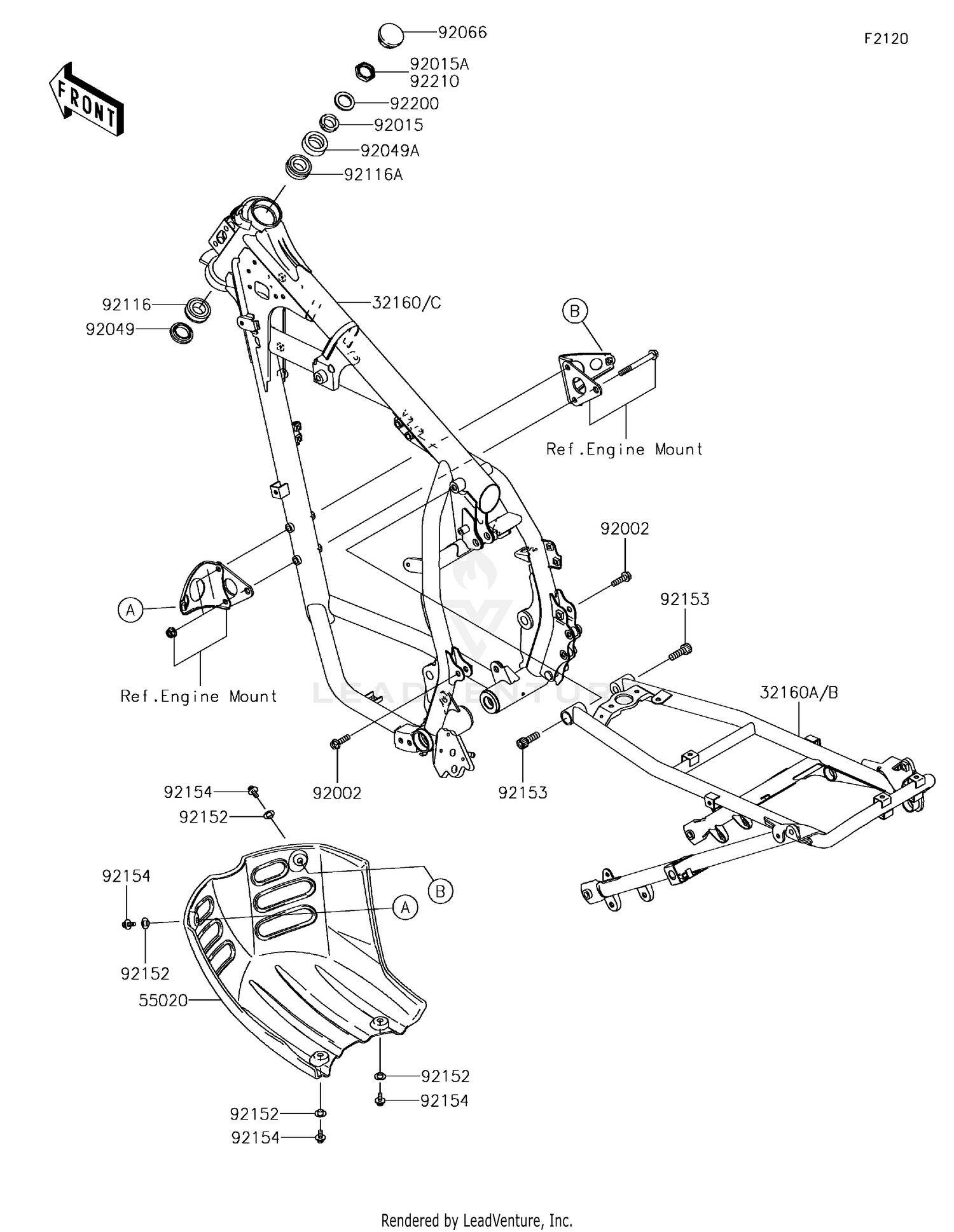

2018 Kawasaki KLR 650 CAMO Frame OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#32160 FRAME-COMP,MAIN,F.S.B 32160-0495-18R	$1,333.39
Available: Ships in 7-12 days. Add to View Price
#32160A FRAME-COMP,RR,F.S.BLA 32160-0496-18R	$961.74
Available: Ships in 7-12 days. Add to View Price
#32160B FRAME-COMP,RR,F.S.BLA 32160-0497-18R	$961.74
Available: Ships in 7-12 days. Add to View Price
#32160C FRAME-COMP,MAIN,F.S.B 32160-0499-18R	$1,333.39
Available: Ships in 7-12 days. Add to View Price
#55020 GUARD,ENGINE,F.BLACK 55020-0235-6Z	$148.38
Available: Ships in 7-12 days. Add to View Price
#92002 BOLT,FLANGED,8X28 92002-1971 Superseded by 92153-1101	$4.66
Available: Ships in 7-12 days. Add to View Price
#92015 NUT,25MM,T=12 92015-1546	$19.31
Available: Ships in 7-12 days. Add to View Price
#92049 SEAL-OIL,XMHE36X52X4J 92049-1162	$8.63
Available: Ships in 7-12 days. Add to View Price
#92049A SEAL-OIL,STEERING STEM 92049-1214	$15.49
Available: Ships in 7-12 days. Add to View Price
#92066 PLUG 92066-1306	$5.14
Available: Ships in 7-12 days. Add to View Price
#92116 BEARING-ROLLER,HR320/28XJ 92116-1009	$34.60
Available: Ships in 7-12 days. Add to View Price
#92116A BEARING-ROLLER,HICAP 32005JR 92116-1052	$34.60
Available: Ships in 7-12 days. Add to View Price
#92152 COLLAR 92152-0427	$6.95
Available: Ships in 7-12 days. Add to View Price
#92153 BOLT,SOCKET,10X30 92153-1524	$6.95
Available: Ships in 7-12 days. Add to View Price
#92154 BOLT,6X16 92154-0391	$1.82
Available: Ships in 7-12 days. Add to View Price
#92200 WASHER,STEERING STEM 92200-0517	$6.81
Available: Ships in 7-12 days. Add to View Price
#92210 NUT,STEERING STEM,22MM 92210-1521	$15.49
Available: Ships in 7-12 days. Add to View Price
