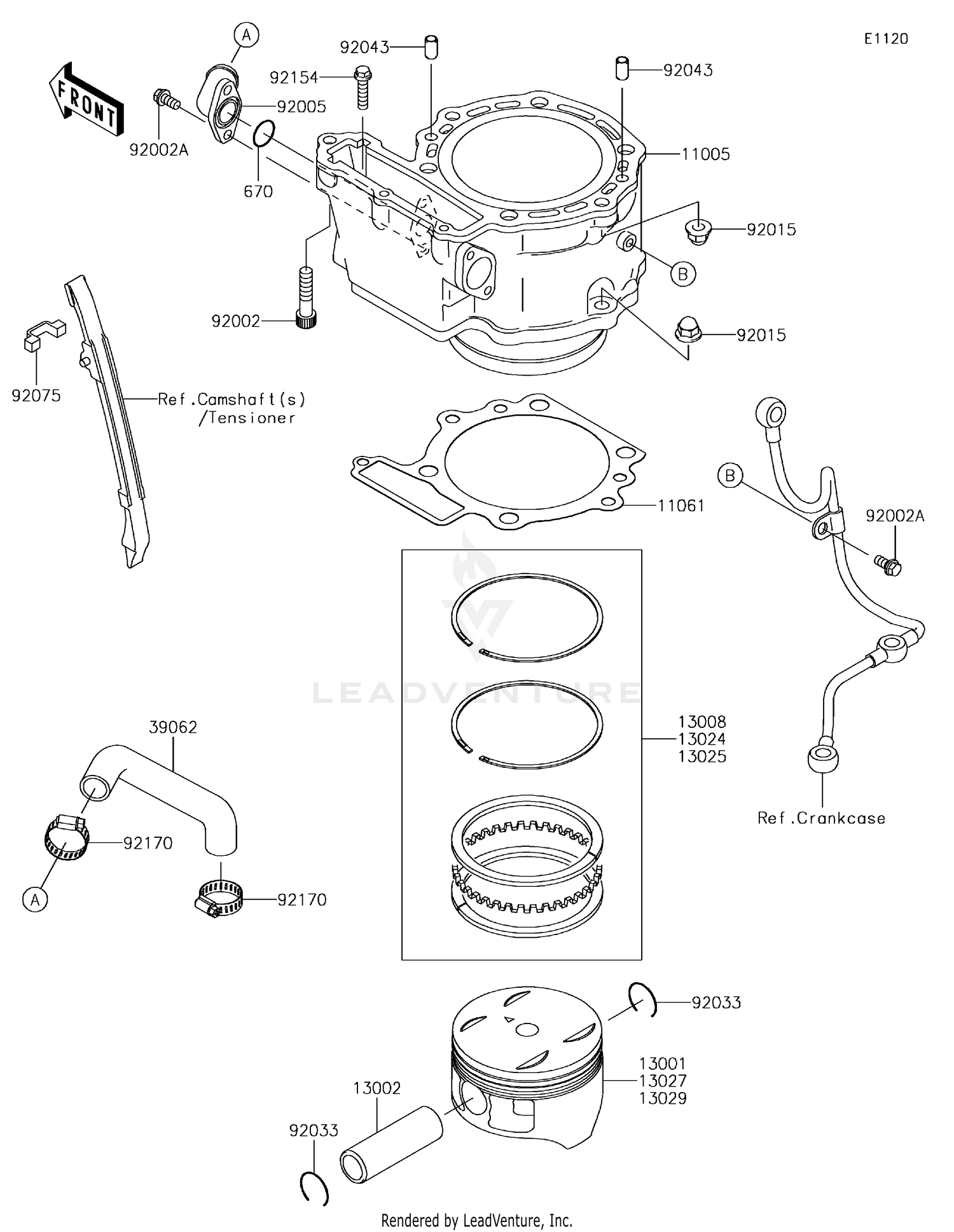

2018 Kawasaki KLR 650 CAMO Cylinder/Piston(s) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#11005 CYLINDER-ENGINE 11005-0584	$815.67
Available: Ships in 7-12 days. Add to View Price
#11061 GASKET,CYLINDER BASE 11061-0428	$13.57
Available: Ships in 7-12 days. Add to View Price
#13001 PISTON-ENGINE 13001-0723	$179.06
Available: Ships in 7-12 days. Add to View Price
#13002 PIN-PISTON 13002-0707	$61.88
Available: Ships in 7-12 days. Add to View Price
#13008 RING-SET-PISTON 13008-0554	$70.17
Available: Ships in 7-12 days. Add to View Price
#13024 RING-SET-PISTON LL,O/ 13024-0552	$70.17
Available: Ships in 7-12 days. Add to View Price
#13025 RING-SET-PISTON L,O/S 13025-0055	$70.17
Available: Ships in 7-12 days. Add to View Price
#13027 PISTON-ENGINE LL,O/S 13027-0055	$179.06
Available: Ships in 7-12 days. Add to View Price
#13029 PISTON-ENGINE L,O/S 0 13029-0707	$179.06
Available: Ships in 7-12 days. Add to View Price
#39062 HOSE-COOLING,W/P-CYLINDER 39062-0150	$28.74
Available: Ships in 7-12 days. Add to View Price
#670 O RING,18MM 670B2018	$1.39
Available: Ships in 7-12 days. Add to View Price
#92002 BOLT,SOCKET,8X35 92002-1409	$5.14
Available: Ships in 7-12 days. Add to View Price
#92002A BOLT-FLANGED-SMALL,6X12 92002-1569 Superseded by 132BB0612	$1.92
Available: Ships in 7-12 days. Add to View Price
#92005 FITTING 92005-0784	$19.61
Available: Ships in 7-12 days. Add to View Price
#92015 NUT,CAP,8MM 92015-1982	$4.66
Available: Ships in 7-12 days. Add to View Price
#92033 RING-SNAP 92033-1226	$3.57
Available: Ships in 7-12 days. Add to View Price
#92043 PIN,6.2X8X14 92043-1263	$0.43
Available: Ships in 7-12 days. Add to View Price
#92075 DAMPER 92075-1968	$5.14
Available: Ships in 7-12 days. Add to View Price
#92154 BOLT,FLANGED,6X25 92154-1212	$2.82
Available: Ships in 7-12 days. Add to View Price
#92170 CLAMP,COOLING HOSE 92170-1033	$14.07
Available: Ships in 7-12 days. Add to View Price
