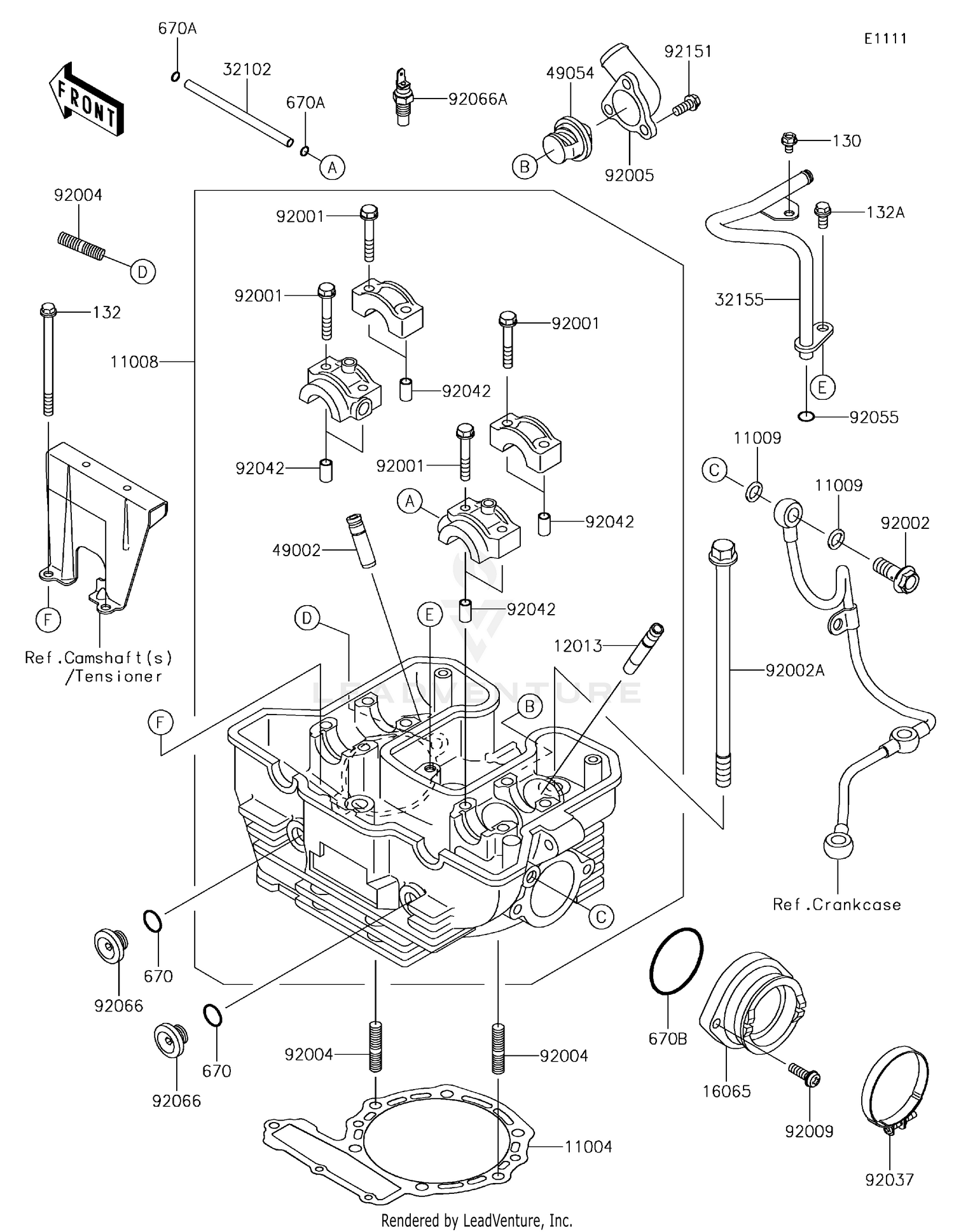

2018 Kawasaki KLR 650 CAMO Cylinder Head OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11004
GASKET-HEAD
11004-1158
|
$54.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11008
HEAD-COMP-CYLINDER
11008-0846
|
$1,126.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11009
GASKET,10X14.5X1.5
11009-1105
|
$6.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12013
GUIDE-VALVE,INTAKE
12013-009
|
$25.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#130
BOLT-FLANGED,5X8
130BD0508
|
$1.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X85
132BA0685
|
$3.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X12
132BD0612
|
$1.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1151
|
$30.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32102
PIPE,OIL LINE
32102-1352
|
$6.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32155
PIPE
32155-1060
|
$70.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49002
GUIDE-VALVE,EXHAUST
49002-1002
|
$22.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49054
THERMOSTAT
49054-1053
|
$50.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#670
O RING,15MM
670B2015
|
$1.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#670A
O RING,6MM
670D1506
|
$1.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#670B
O RING,48MM
670D3048
|
$6.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X38
92001-1105
|
$4.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92002
BOLT,BANJO,10X25
92002-1170
|
$8.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92002A
BOLT,10X191
92002-1874
|
$20.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92004
STUD,8X22
92004-1217
|
$5.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92005
FITTING
92005-0715
|
$23.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009
SCREW,6X20
92009-1325
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92037
CLAMP,55MM
92037-1486
|
$7.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92042
PIN,DOWEL,6.3X8X14
92042-007
|
$5.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92055
RING-O,10MM
92055-1149
|
$6.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92066
PLUG,CYLINDER HEAD
92066-1158
|
$6.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92066A
PLUG,SENSOR WATER
92066-1183
|
$59.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92151
BOLT,6X14
92151-1810
|
$2.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
