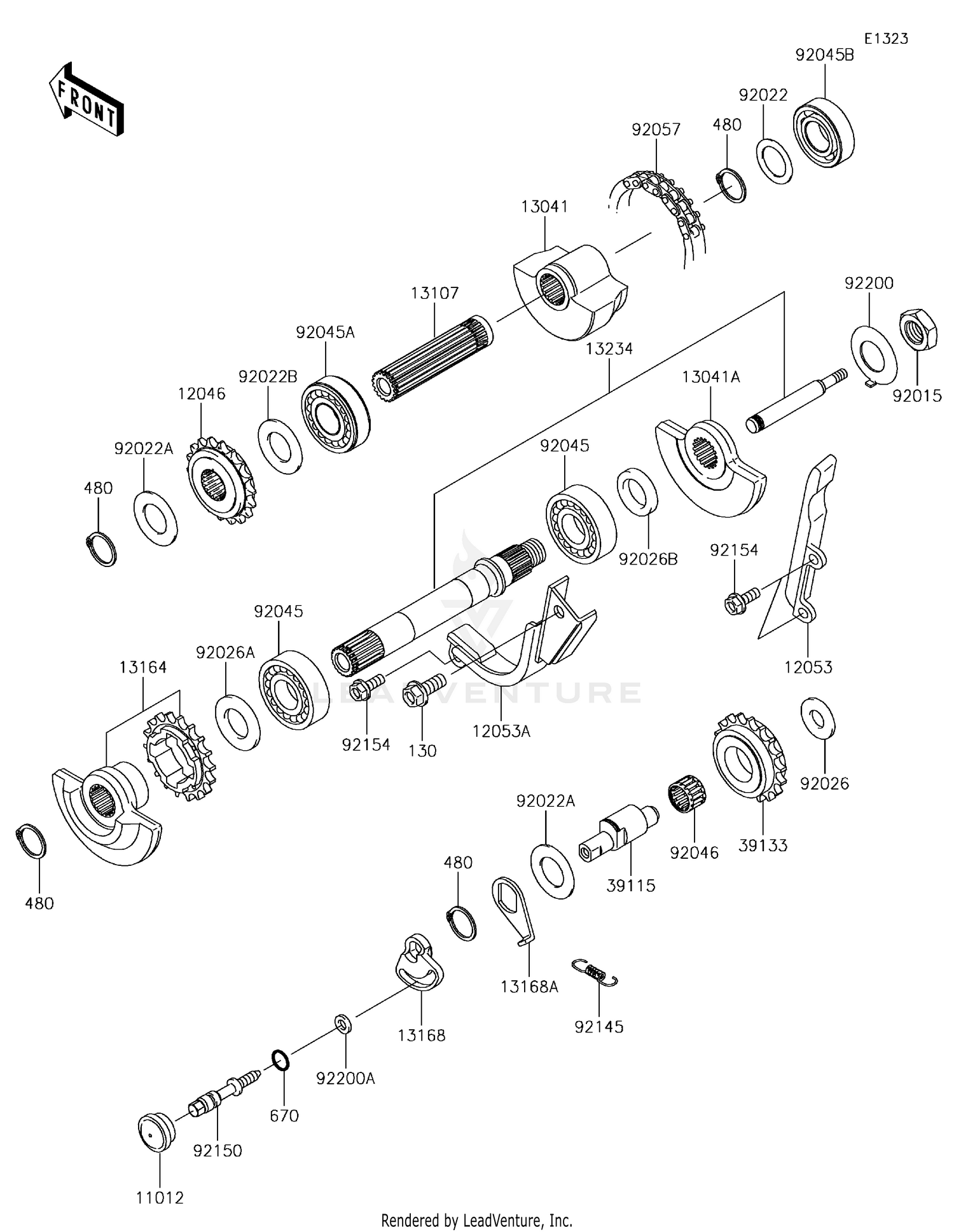

2018 Kawasaki KLR 650 CAMO Balancer OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP
11012-1369
|
$5.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12046
SPROCKET,BALANCER,18T
12046-1165
|
$87.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12053
GUIDE-CHAIN,RR
12053-1111
|
$37.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12053A
GUIDE-CHAIN,FR
12053-1175
|
$55.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X20
130CA0820
|
$1.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13041
BALANCER,RR
13041-0032
|
$129.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13041A
BALANCER,FR,RH
13041-0034
|
$97.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13107
SHAFT,BALANCER,RR
13107-1104
|
$72.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13164
BALANCER-COMP,FR,LH
13164-0002
|
$155.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13168
LEVER,IDLER SHAFT
13168-0184
|
$38.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13168A
LEVER
13168-0728
|
$7.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13234
SHAFT-COMP,BALANCER,FR
13234-0035
|
$125.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39115
SHAFT-IDLER
39115-0022
|
$61.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39133
SPROCKET-IDLER,IDLER
39133-1060
|
$88.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,20MM
480J2000
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#670
O RING,7MM
670B1507
|
$1.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015
NUT,16MM
92015-1477
|
$7.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022
WASHER,20.5X30X1,STEEL
92022-112
|
$8.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022A
WASHER,20.3X36X1.5
92022-1489
|
$5.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022B
WASHER,20.2X36X2
92022-1880
|
$6.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92026
SPACER,12.2X27X2.3
92026-0151
|
$10.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92026A
SPACER,20.2X36X3
92026-0155
|
$11.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92026B
SPACER,20.2X30X5
92026-1245
|
$14.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92045
BEARING-BALL,20X47X14
92045-0070
|
$26.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92045A
BEARING-BALL
92045-0071
|
$26.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92045B
BEARING-BALL,20X42X12
92045-0072
|
$11.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92046
BEARING-NEEDLE
92046-1234
|
$22.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92057
CHAIN,BALANCER,BF06HX70L
92057-1158
|
$328.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92145
SPRING
92145-0529
|
$7.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92150
BOLT,IDLER LEVER
92150-1923
|
$18.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154
BOLT,FLANGED,6X16
92154-1428
|
$1.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200
WASHER
92200-0558
|
$5.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200A
WASHER,6.5X12X2.0
92200-1263
|
$3.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
