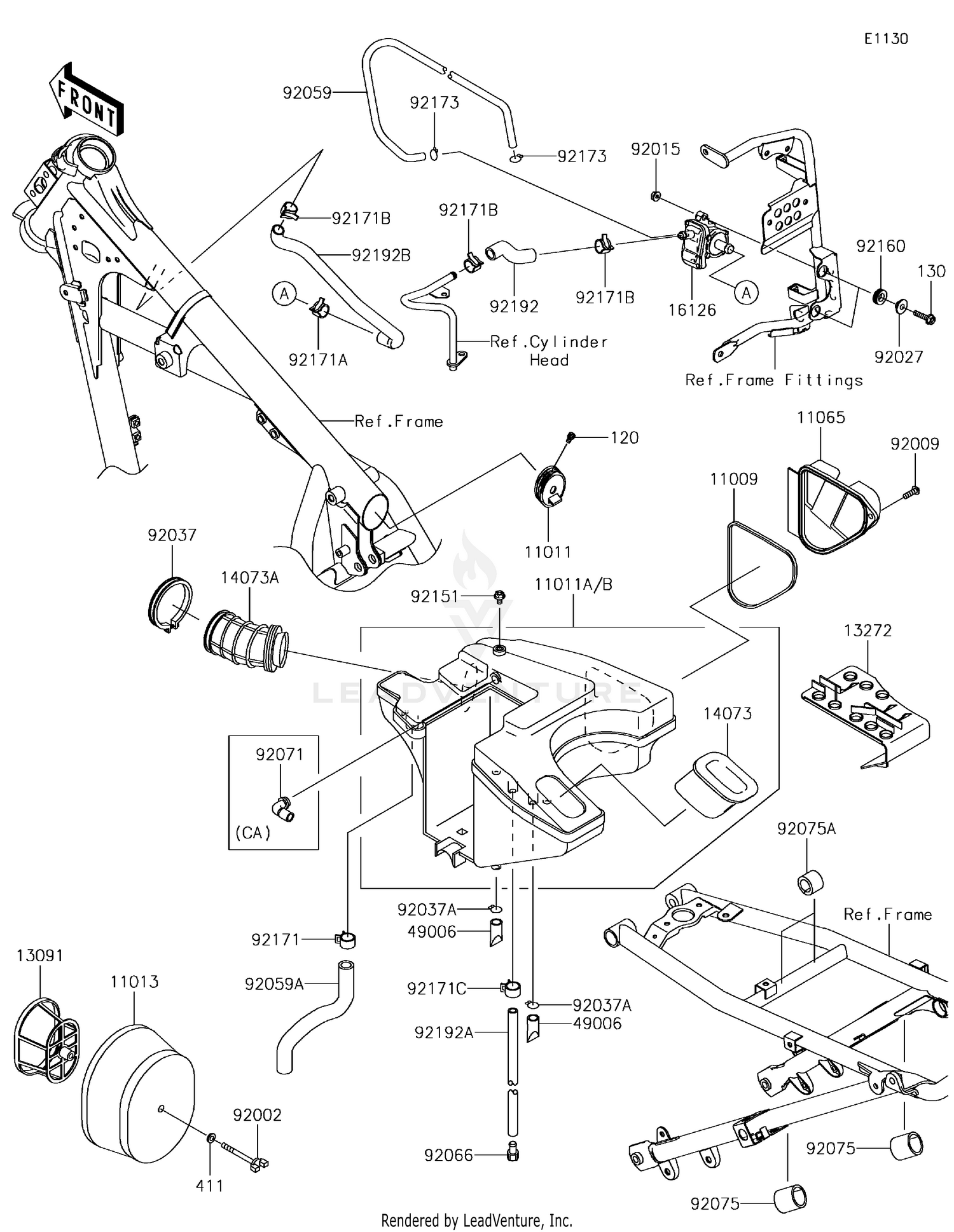

2018 Kawasaki KLR 650 CAMO Air Cleaner OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#11009 GASKET 11009-1649	$10.88
Available: Ships in 7-12 days. Add to View Price
#11011 CASE-AIR FILTER 11011-0095	$18.77
Available: Ships in 7-12 days. Add to View Price
#11011A CASE-AIR FILTER 11011-0159	$231.24
Available: Ships in 7-12 days. Add to View Price
#11011B CASE-AIR FILTER 11011-0160	$181.76
Available: Ships in 7-12 days. Add to View Price
#11013 ELEMENT-AIR FILTER 11013-1152	$24.15
Available: Ships in 7-12 days. Add to View Price
#11065 CAP,AIR FILTER 11065-1133	$22.29
Available: Ships in 7-12 days. Add to View Price
#120 BOLT-SOCKET,5X8 120CA0508	$2.28
Available: Ships in 7-12 days. Add to View Price
#130 BOLT-FLANGED,6X25 130BA0625	$1.17
Available: Ships in 7-12 days. Add to View Price
#13091 HOLDER 13091-1473	$26.97
Available: Ships in 7-12 days. Add to View Price
#13272 PLATE 13272-0598	$36.48
Available: Ships in 7-12 days. Add to View Price
#14073 DUCT 14073-0119	$29.01
Available: Ships in 7-12 days. Add to View Price
#14073A DUCT 14073-1288	$28.41
Available: Ships in 7-12 days. Add to View Price
#16126 VALVE,2ND AIR 16126-0026	$105.21
Available: Ships in 7-12 days. Add to View Price
#411 WASHER-PLAIN,6MM 411AA0600	$2.84
Available: Ships in 7-12 days. Add to View Price
#49006 BOOT 49006-1211	$6.12
Available: Ships in 7-12 days. Add to View Price
#92002 BOLT 92002-1904	$9.21
Available: Ships in 7-12 days. Add to View Price
#92009 SCREW 92009-1460	$3.00
Available: Ships in 7-12 days. Add to View Price
#92015 NUT,FLANGED,6MM,BLACK 92015-1233	$5.14
Available: Ships in 7-12 days. Add to View Price
#92027 COLLAR,L=7.4 92027-1848	$4.37
Available: Ships in 7-12 days. Add to View Price
#92037 CLAMP 92037-1859	$7.98
Available: Ships in 7-12 days. Add to View Price
#92037A CLAMP,14.5MM 92037-1900	$4.54
Available: Ships in 7-12 days. Add to View Price
#92059 TUBE,4X9X550,WHITE 92059-1760	$17.79
Available: Ships in 7-12 days. Add to View Price
#92059A TUBE 92059-1774	$28.84
Available: Ships in 7-12 days. Add to View Price
#92066 PLUG,DRAIN,8.5X15 92066-0127	$7.85
Available: Ships in 7-12 days. Add to View Price
#92071 GROMMET 92071-1147	$20.27
Available: Ships in 7-12 days. Add to View Price
#92075 DAMPER,25X31X30 92075-1906	$6.12
Available: Ships in 7-12 days. Add to View Price
#92075A DAMPER,18X27X20 92075-1907	$5.52
Available: Ships in 7-12 days. Add to View Price
#92151 BOLT,6X10 92151-1344	$2.30
Available: Ships in 7-12 days. Add to View Price
#92160 DAMPER 92160-1278	$4.09
Available: Ships in 7-12 days. Add to View Price
#92171 CLAMP 92171-0329	$8.26
Available: Ships in 7-12 days. Add to View Price
#92171A CLAMP,16MM 92171-0976	$3.16
Available: Ships in 7-12 days. Add to View Price
#92171B CLAMP,15MM 92171-1600	$8.99
Available: Ships in 7-12 days. Add to View Price
#92171C CLAMP,12MM 92171-1870	$6.18
Available: Ships in 7-12 days. Add to View Price
#92173 CLAMP 92173-1190	$2.39
Available: Ships in 7-12 days. Add to View Price
#92192 TUBE,ASV-HEAD,YELLOW 92192-0323	$109.14
Available: Ships in 7-12 days. Add to View Price
#92192A TUBE,8X12X380 92192-0883	$12.52
Available: Ships in 7-12 days. Add to View Price
#92192B TUBE,FRAME-ASV,PINK 92192-0905	$23.37
Available: Ships in 7-12 days. Add to View Price
