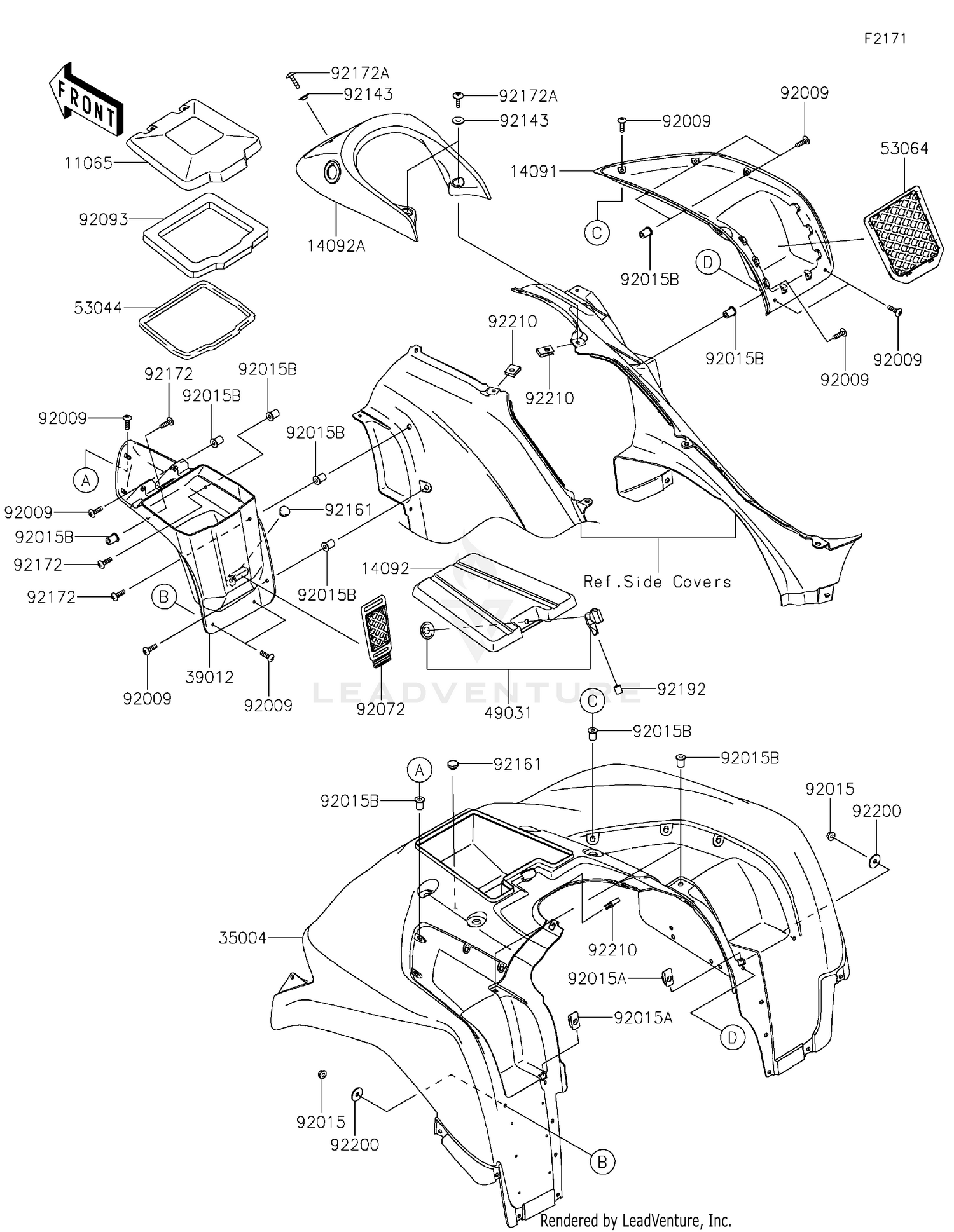

2020 Kawasaki BRUTE FORCE 750 4X4I Front Fender(s) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11065
CAP,STORAGE,F.BLACK
11065-0194-6Z
|
$11.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14091
COVER,POCKET,RH,F.BLACK
14091-0136-6Z
|
$27.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14092
COVER,STORAGE BOX
14092-0180
|
$39.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14092A
COVER,TOP,F.BLACK
14092-0769-6Z
|
$29.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35004
FENDER-FRONT,F.RED
35004-0153-6L
|
$493.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39012
CASE-STORAGE,F.BLACK
39012-0015-6Z
|
$30.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49031
LATCH
49031-0004
|
$6.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#53044
TRIM,L=700
53044-0037
|
$11.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#53064
NET-CARGO
53064-0002
|
$8.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009
SCREW,5X18
92009-1655
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015
NUT,FLANGED,5MM
92015-1259
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015A
NUT,5MM
92015-1710
|
$5.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015B
NUT,WELL,5MM
92015-1757
|
$6.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92072
BAND,STORAGE
92072-0095
|
$8.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92093
SEAL,STORAGE CAP
92093-0568
|
$18.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92143
COLLAR
92143-1087
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92161
DAMPER
92161-0586
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92172
SCREW,5X18
92172-0428
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92172A
SCREW,TAPPING,6X20
92172-0488
|
$2.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92192
TUBE
92192-0973
|
$3.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200
WASHER,5.5X20X1.2
92200-0284
|
$2.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92210
NUT,LEAF SPRING,6MM
92210-0624
|
$2.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
