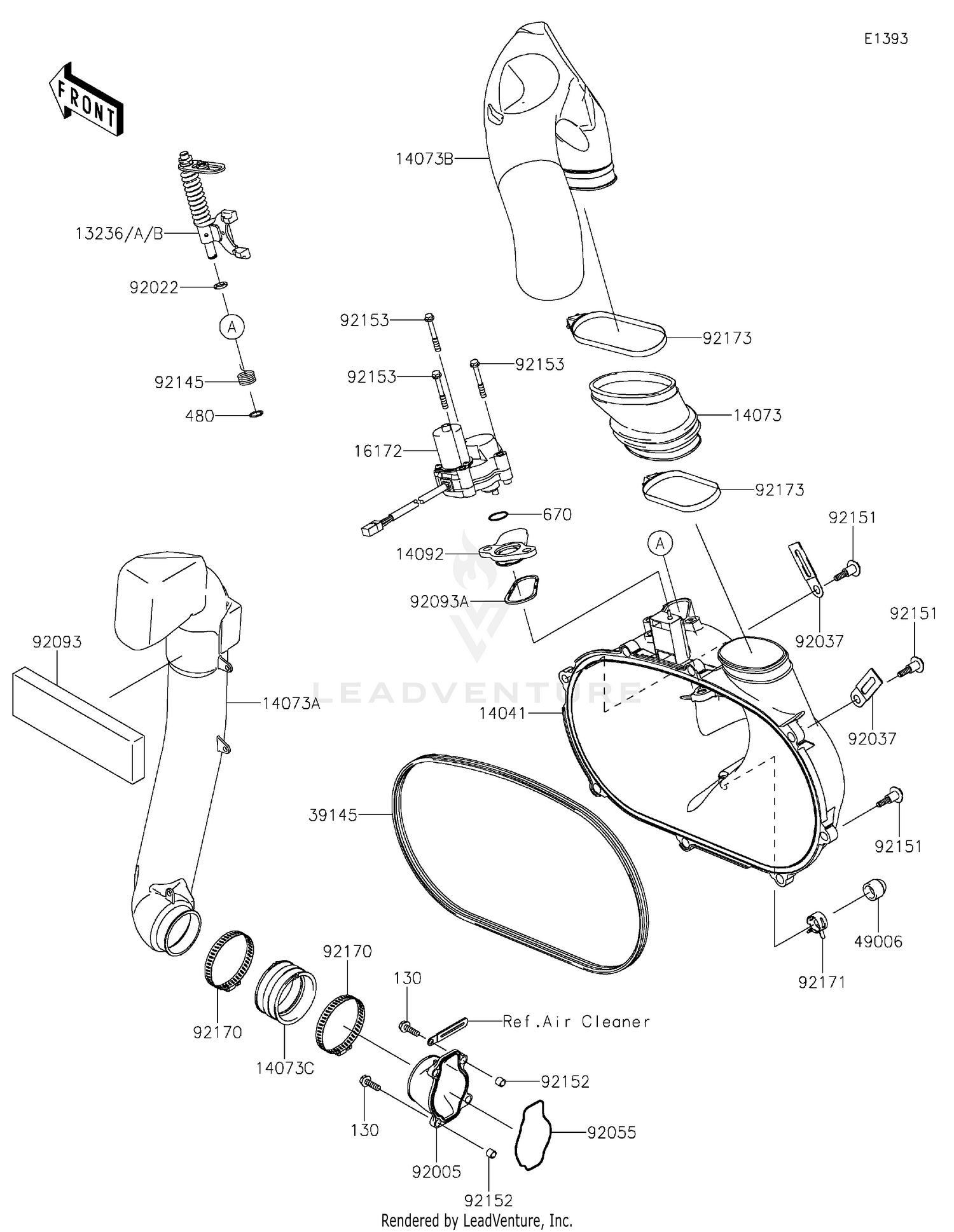

2020 Kawasaki BRUTE FORCE 750 4X4I Converter Cover OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X20
130CA0620
|
$1.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13236
LEVER-COMP,YELLOW
13236-0046
|
$121.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13236A
LEVER-COMP,GREEN
13236-0047
|
$121.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13236B
LEVER-COMP,PAINT LESS
13236-0048
|
$121.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14041
COVER-COMP
14041-0556
Superseded by 14041-0625
|
$181.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14073
DUCT,EXHAUST JOINT
14073-0028
|
$15.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14073A
DUCT,INTAKE
14073-0298
|
$33.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14073B
DUCT,EXHAUST
14073-0734
|
$21.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14073C
DUCT,JOINT
14073-1775
|
$4.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14092
COVER
14092-0780
|
$12.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16172
ACTUATOR
16172-0018
|
$392.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39145
TRIM-SEAL
39145-0702
|
$17.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,10MM
480J1000
|
$0.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49006
BOOT,DRAIN
49006-0560
|
$6.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#670
O RING
670D3022
|
$2.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92005
FITTING
92005-0718
|
$11.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022
WASHER,10.2X16X1
92022-1829
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92037
CLAMP
92037-1780
|
$6.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92055
RING-O
92055-1630
|
$9.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92093
SEAL
92093-0581
|
$11.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92093A
SEAL
92093-1548
|
$9.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92145
SPRING
92145-1567
|
$2.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92151
BOLT,FLANGED,6X30
92151-1686
|
$8.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92152
COLLAR
92152-1332
|
$3.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92153
BOLT,6X47
92153-0678
|
$2.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92170
CLAMP
92170-1764
|
$10.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92171
CLAMP
92171-0329
|
$8.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92173
CLAMP
92173-0260
|
$12.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
