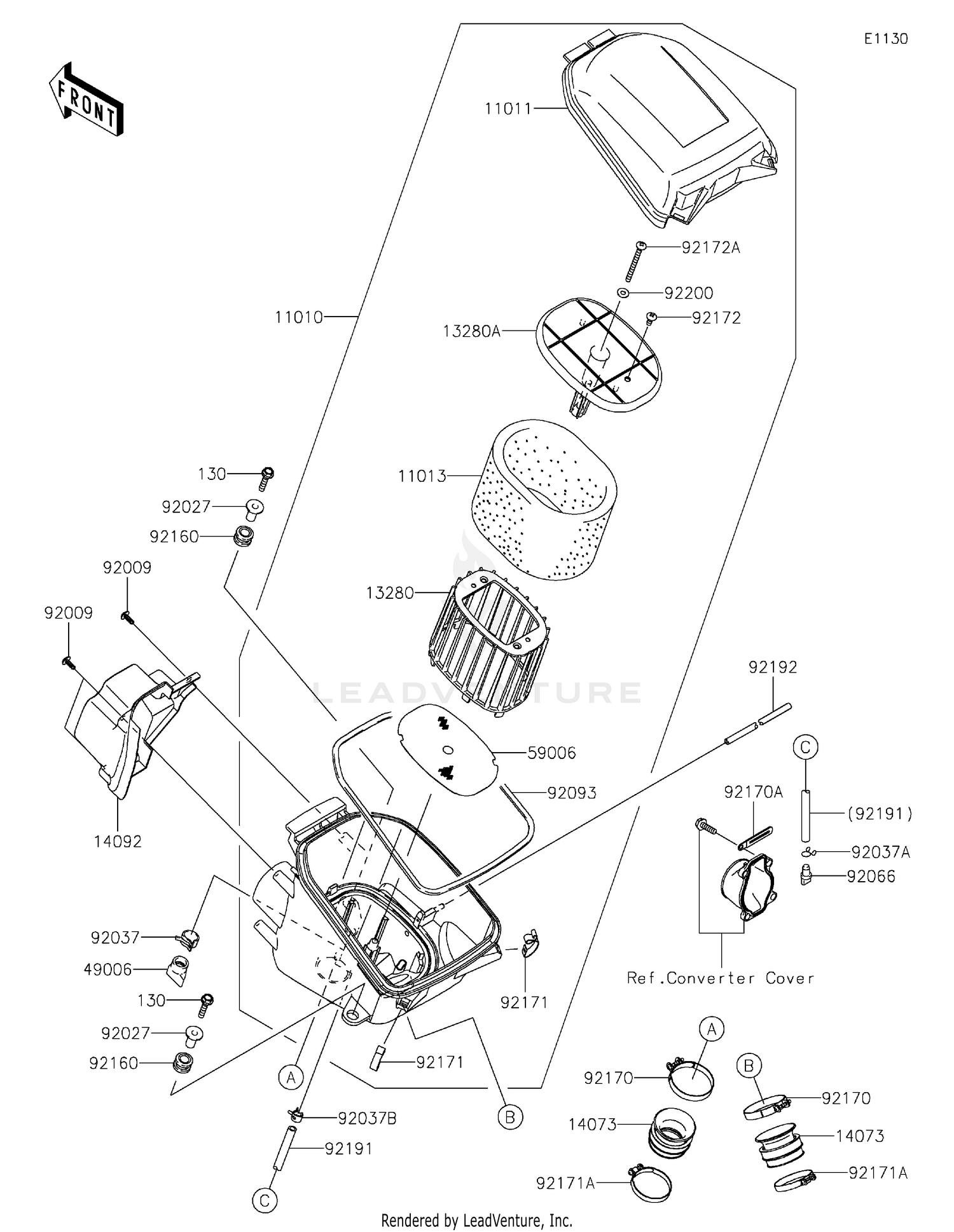

2020 Kawasaki BRUTE FORCE 750 4X4I Air Cleaner OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11010
FILTER-ASSY-AIR
11010-0784
|
$127.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11011
CASE-AIR FILTER,UPP
11011-0017
|
$26.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11013
ELEMENT-AIR FILTER
11013-0021
|
$10.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X30
130BA0630
|
$1.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13280
HOLDER
13280-0232
|
$18.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13280A
HOLDER
13280-0233
|
$8.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14073
DUCT
14073-0160
|
$7.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14092
COVER,INTAKE DUCT
14092-0768
|
$15.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49006
BOOT
49006-1292
|
$7.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#59006
ARRESTER-FLAME
59006-0015
|
$21.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009
SCREW,TAPPING
92009-1113
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92027
COLLAR,L=21
92027-195
|
$6.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92037
CLAMP,HOSE CLIP
92037-1460
|
$6.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-147
|
$6.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92037B
CLAMP,TUBE
92037-1505
|
$4.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92066
PLUG,DRAIN
92066-1211
|
$7.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92093
SEAL
92093-0083
|
$7.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92160
DAMPER
92160-1594
|
$4.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92170
CLAMP
92170-1448
|
$7.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92170A
CLAMP
92170-1514
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92171
CLAMP
92171-0225
|
$1.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92171A
CLAMP
92171-0722
|
$14.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92172
SCREW
92172-0297
|
$1.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92172A
SCREW
92172-0300
|
$4.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92191
TUBE,7X11X470
92191-1531
|
$6.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92192
TUBE
92192-0449
|
$8.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200
WASHER
92200-0364
|
$3.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
