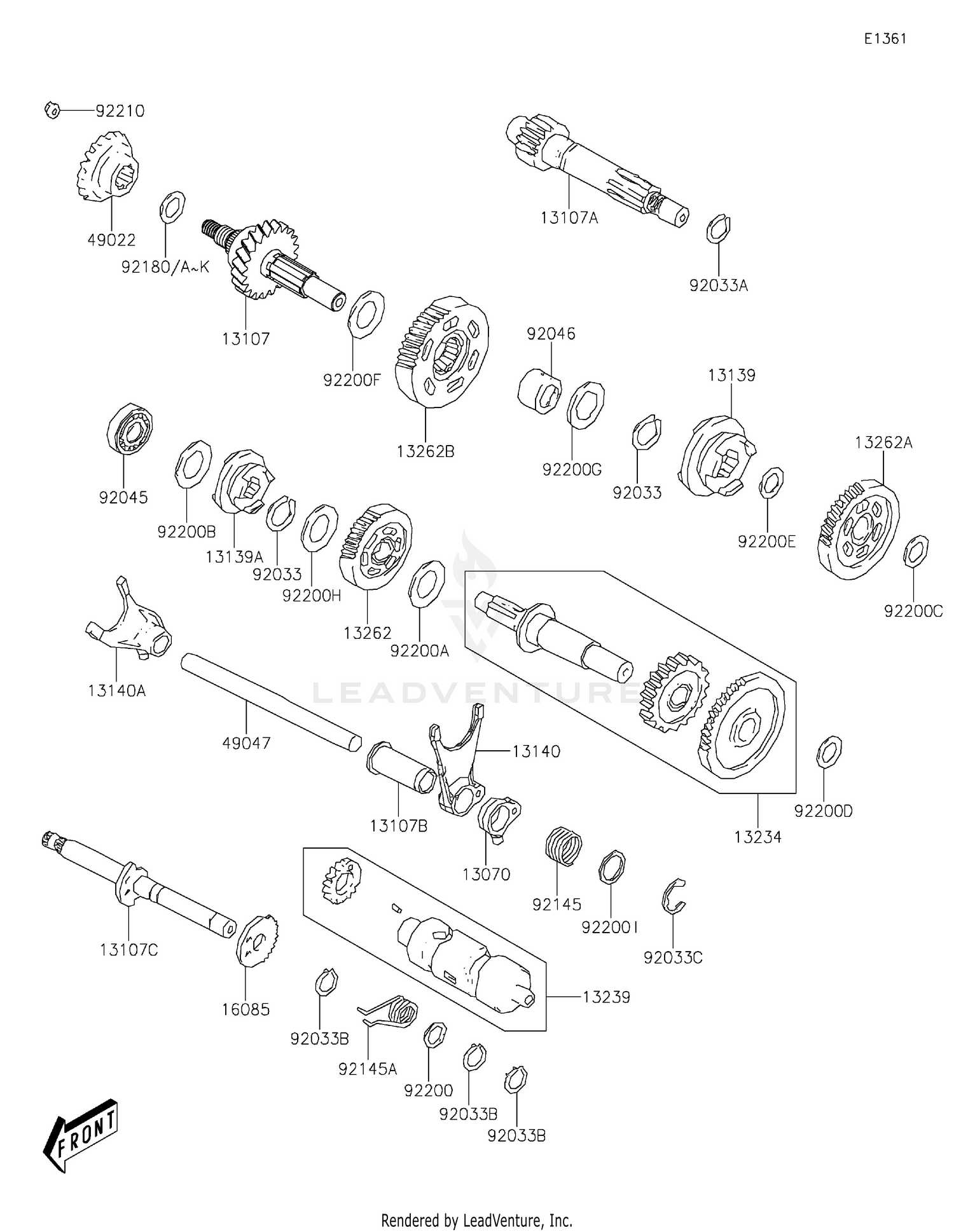

2020 Kawasaki BRUTE FORCE 300 Transmission 2 OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#92200C
WASHER,20MM
92200-Y030
|
$3.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200D
WASHER,20MM
92200-Y031
|
$3.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200E
WASHER,30X20X3
92200-Y032
|
$4.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200F
WASHER,25MM
92200-Y033
|
$3.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200G
WASHER,25MM
92200-Y034
|
$3.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200H
WASHER,25X31X1.6
92200-Y035
|
$3.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200I
WASHER,17X22
92200-Y036
|
$0.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92210
NUT,18MM
92210-Y041
|
$7.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
