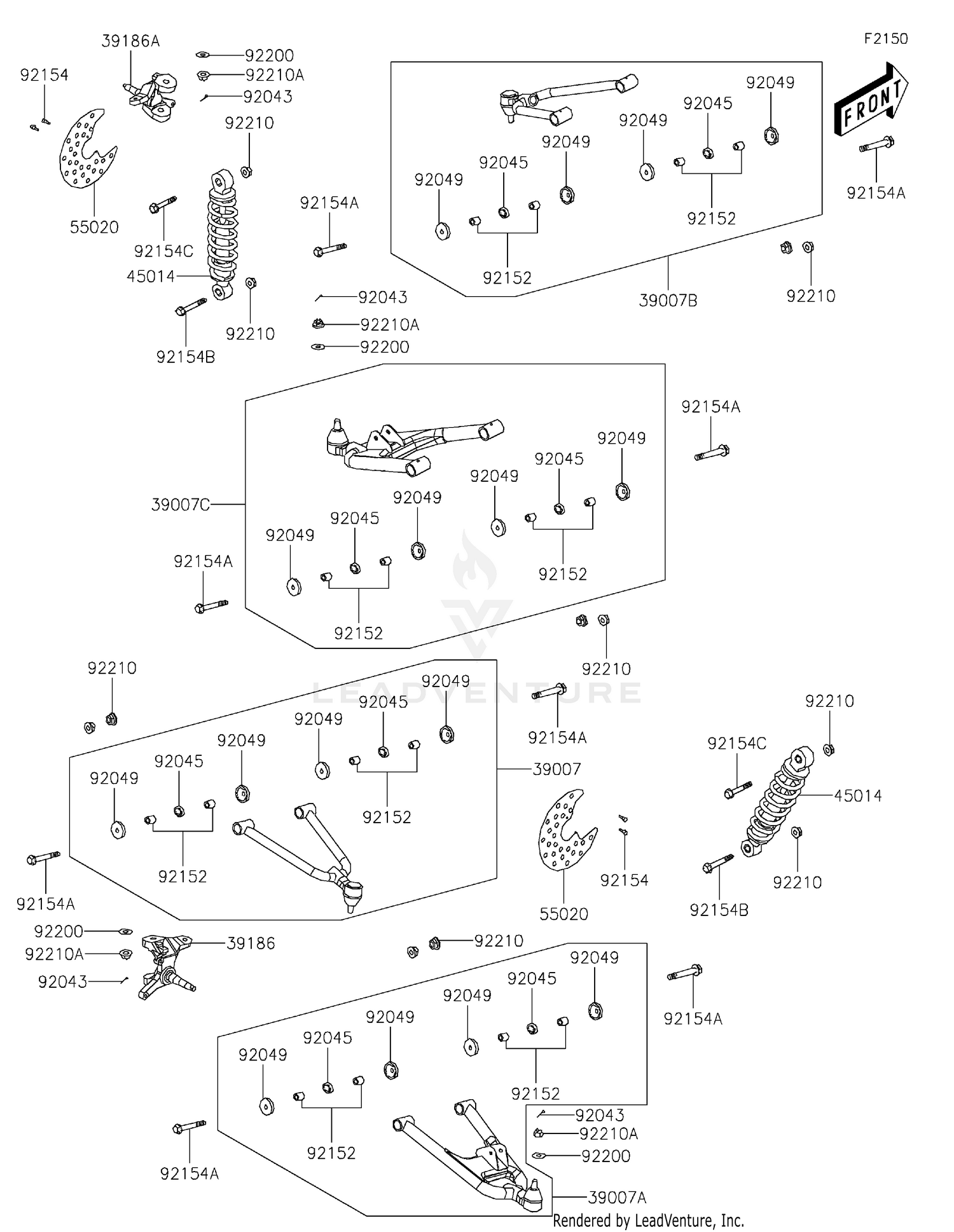

2020 Kawasaki BRUTE FORCE 300 Suspension OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#39007 ARM-SUSP,FR,UPP,RH,BLACK 39007-Y003-945	$144.80
Available: Ships in 7-12 days. Add to View Price
#39007A ARM-SUSP,FR,LWR,RH,BLACK 39007-Y004-945	$184.04
Available: Ships in 7-12 days. Add to View Price
#39007B ARM-SUSP,FR,UPP,LH,BLACK 39007-Y005-945	$144.80
Available: Ships in 7-12 days. Add to View Price
#39007C ARM-SUSP,FR,LWR,LH,BLACK 39007-Y006-945	$184.04
Available: Ships in 7-12 days. Add to View Price
#39186 KNUCKLE,RH 39186-Y003	$144.80
Available: Ships in 7-12 days. Add to View Price
#39186A KNUCKLE,LH 39186-Y004	$144.80
Available: Ships in 7-12 days. Add to View Price
#45014 SHOCKABSORBER,FR,BLACK 45014-Y004-935	$224.76
Available: Ships in 7-12 days. Add to View Price
#55020 GUARD,BRAKE DISK 55020-Y007	$10.86
Available: Ships in 7-12 days. Add to View Price
#92043 PIN,3X25 92043-Y009	$0.74
Available: Ships in 7-12 days. Add to View Price
#92045 BEARING-BALL,6000 92045-Y026	$16.34
Available: Ships in 7-12 days. Add to View Price
#92049 SEAL-OIL,SEAL-OIL,18X26X4 92049-Y018	$4.13
Available: Ships in 7-12 days. Add to View Price
#92152 COLLAR 92152-Y023	$8.35
Available: Ships in 7-12 days. Add to View Price
#92154 BOLT,FLANGE,6X10 92154-Y038	$0.93
Available: Ships in 7-12 days. Add to View Price
#92154A BOLT,FLANGE,10X57 92154-Y039	$3.59
Available: Ships in 7-12 days. Add to View Price
#92154B BOLT,FLANGE,10X50 92154-Y040	$6.24
Available: Ships in 7-12 days. Add to View Price
#92154C BOLT,FLANGE,10X40 92154-Y041	$6.24
Available: Ships in 7-12 days. Add to View Price
#92200 WASHER,12X26X2.3 92200-Y046	$4.87
Available: Ships in 7-12 days. Add to View Price
#92210 NUT,10MM 92210-Y009	$3.03
Available: Ships in 7-12 days. Add to View Price
#92210A NUT,12MM 92210-Y023	$3.82
Available: Ships in 7-12 days. Add to View Price
