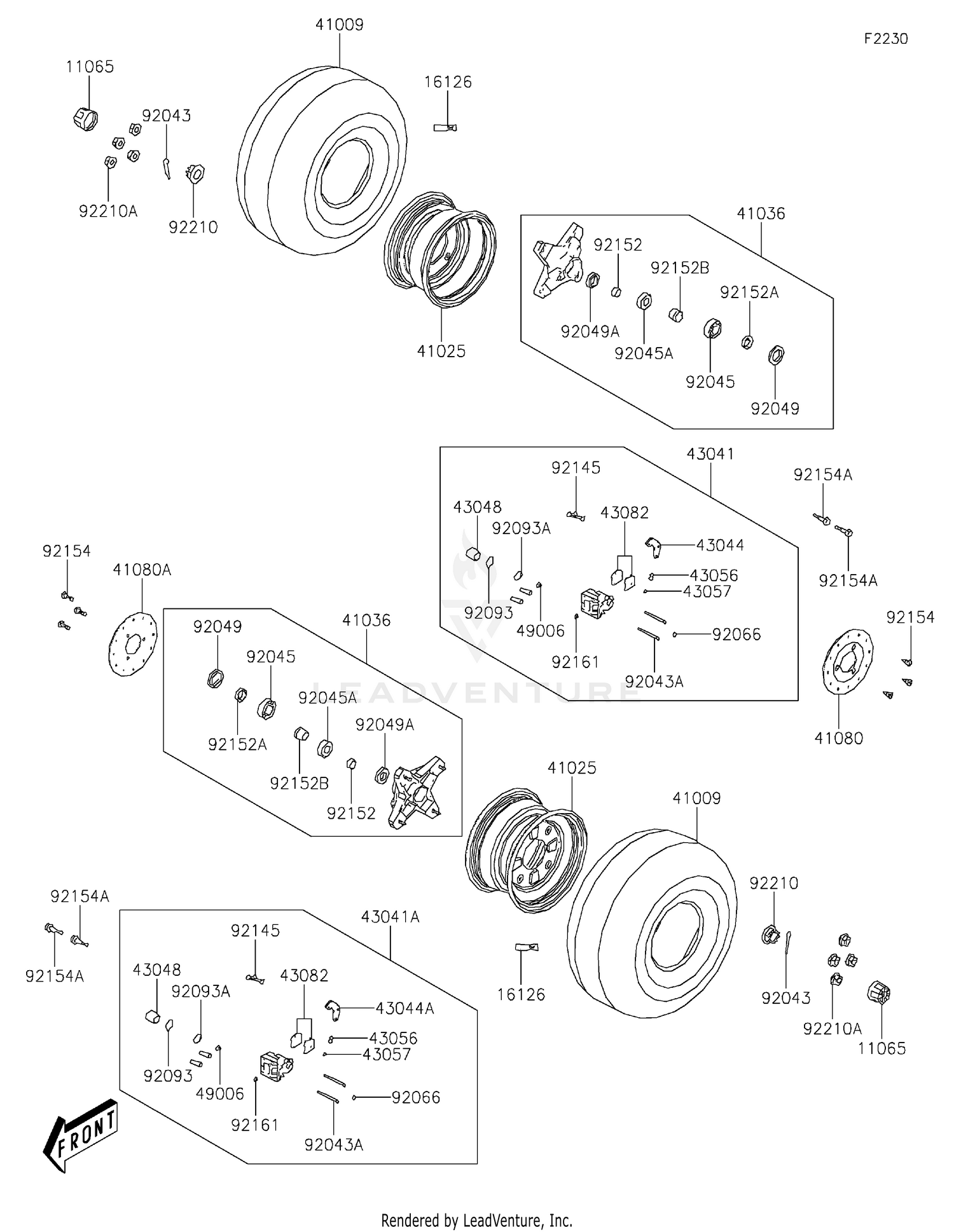

2020 Kawasaki BRUTE FORCE 300 Front Hub OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11065
CAP,WHEEL
11065-Y015
|
$7.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16126
VALVE,RIM
16126-Y001
|
$6.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41009
TIRE,FR
41009-Y004
|
$198.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41025
RIM,FR,BLACK
41025-Y004-935
|
$112.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41036
HUB-ASSY,FR
41036-Y004
|
$101.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41080
DISC,FR,RH
41080-Y002
|
$78.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41080A
DISC,FR,LH
41080-Y003
|
$78.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43041
CALIPER-ASSY,FR,RH
43041-Y002
|
$156.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43041A
CALIPER-ASSY,FR,LH
43041-Y003
|
$156.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43044
HOLDER-COMP-CALIPER,FR
43044-Y001
|
$49.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43044A
HOLDER-COMP-CALIPER,FR,LH
43044-Y005
|
$49.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43048
PISTON-CALIPER
43048-Y002
|
$9.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43056
BREATHER-BRAKE
43056-Y001
|
$3.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-Y001
|
$1.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43082
PAD-ASSY-BRAKE
43082-Y003
|
$45.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49006
BOOT,CALIPER
49006-Y005
|
$3.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92043
PIN,3X25
92043-Y011
|
$0.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92043A
PIN,HANGER
92043-Y019
|
$6.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92045
BEARING-BALL,6004
92045-Y024
|
$28.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92045A
BEARING-BALL,6202
92045-Y025
|
$12.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92049
SEAL-OIL,28X42X7
92049-Y016
|
$2.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92049A
SEAL-OIL,20X35X7
92049-Y017
|
$2.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92066
PLUG
92066-Y001
|
$1.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92093
SEAL,DUST
92093-Y005
|
$1.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92093A
SEAL,PISTON
92093-Y006
|
$7.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92145
SPRING,PAD
92145-Y035
|
$5.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92152
COLLAR
92152-Y020
|
$5.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92152A
COLLAR
92152-Y021
|
$7.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92152B
COLLAR
92152-Y022
|
$7.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154
BOLT,8X24
92154-Y025
|
$3.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154A
BOLT,FLANGE,8X20
92154-Y053
|
$5.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92161
DAMPER
92161-Y012
|
$4.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92210
NUT,14MM
92210-Y025
|
$5.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92210A
NUT,10MM
92210-Y044
|
$7.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
