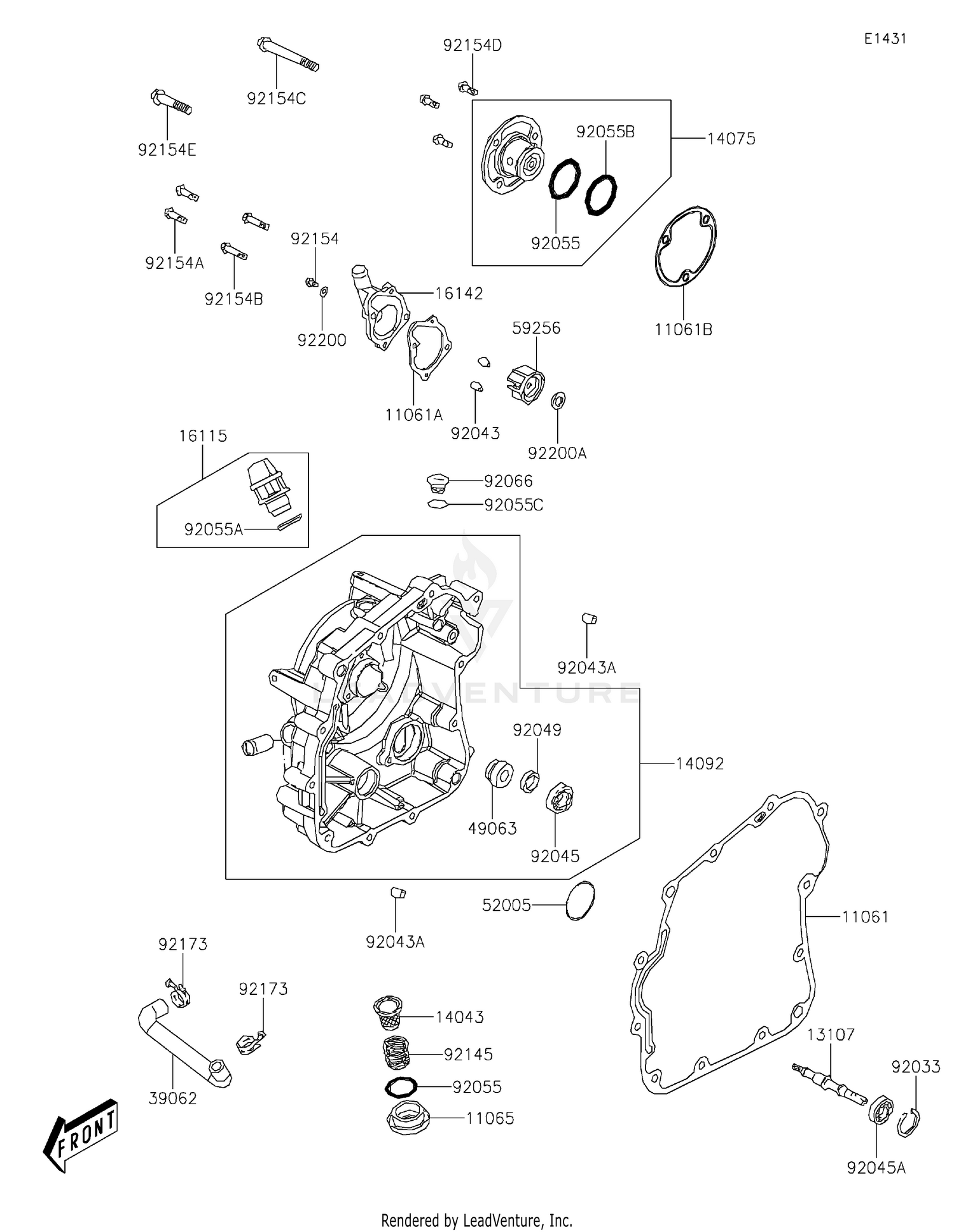

2020 Kawasaki BRUTE FORCE 300 Engine Cover(s) OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11061
GASKET,CRANK CASE COVER,RH
11061-Y028
|
$14.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11061A
GASKET,WATER PUMP COVER
11061-Y029
|
$3.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11061B
GASKET,CRANK CASE COVER CAP
11061-Y035
|
$3.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11065
CAP
11065-Y006
|
$9.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13107
SHAFT,WATER PUMP
13107-Y006
|
$29.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14043
FILTER,OIL
14043-Y001
|
$4.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14075
CAP-ASSY,CRANK CASE COVER,RH
14075-Y001
|
$38.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14092
COVER,CRANK CASE,RH
14092-Y007
|
$135.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16115
CAP-OIL FILLER
16115-Y002
|
$16.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16142
COVER-PUMP,WATER,BLACK
16142-Y001-944
|
$27.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39062
HOSE-COOLING
39062-Y006
|
$28.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49063
SEAL-MECHANICAL
49063-Y002
|
$24.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52005
GAUGE,OIL LEVEL
52005-Y002
|
$18.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#59256
IMPELLER
59256-Y001
|
$21.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92033
RING-SNAP,26MM
92033-Y015
|
$1.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92043
PIN,8X14
92043-Y012
|
$1.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92043A
PIN,10X16
92043-Y013
|
$1.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92045
BEARING-BALL,6901
92045-Y017
|
$35.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92045A
BEARING-BALL,6000
92045-Y018
|
$14.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92049
SEAL-OIL,12X20X4
92049-Y011
|
$2.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92055
RING-O,30.8MM
92055-Y005
|
$1.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92055A
RING-O,18X3
92055-Y011
|
$0.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92055B
RING-O,27.4X2.1
92055-Y022
|
$2.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92055C
RING-O,13.8X2.5
92055-Y023
|
$2.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92066
PLUG,COVER
92066-Y009
|
$4.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92145
SPRING
92145-Y005
|
$1.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154
BOLT,FLANGE,6X10
92154-Y013
|
$1.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154A
BOLT,FLANGE,6X22
92154-Y067
|
$1.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154B
BOLT,FLANGE,6X28
92154-Y068
|
$2.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154C
BOLT,6X125
92154-Y121
|
$4.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154D
BOLT,FLANGE,6X16
92154-Y134
|
$2.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154E
BOLT,FLANGE,6X45
92154-Y135
|
$4.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92173
CLAMP
92173-Y005
|
$3.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200
WASHER,6MM
92200-Y024
|
$0.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200A
WASHER,7.2X13X1.2
92200-Y025
|
$0.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
