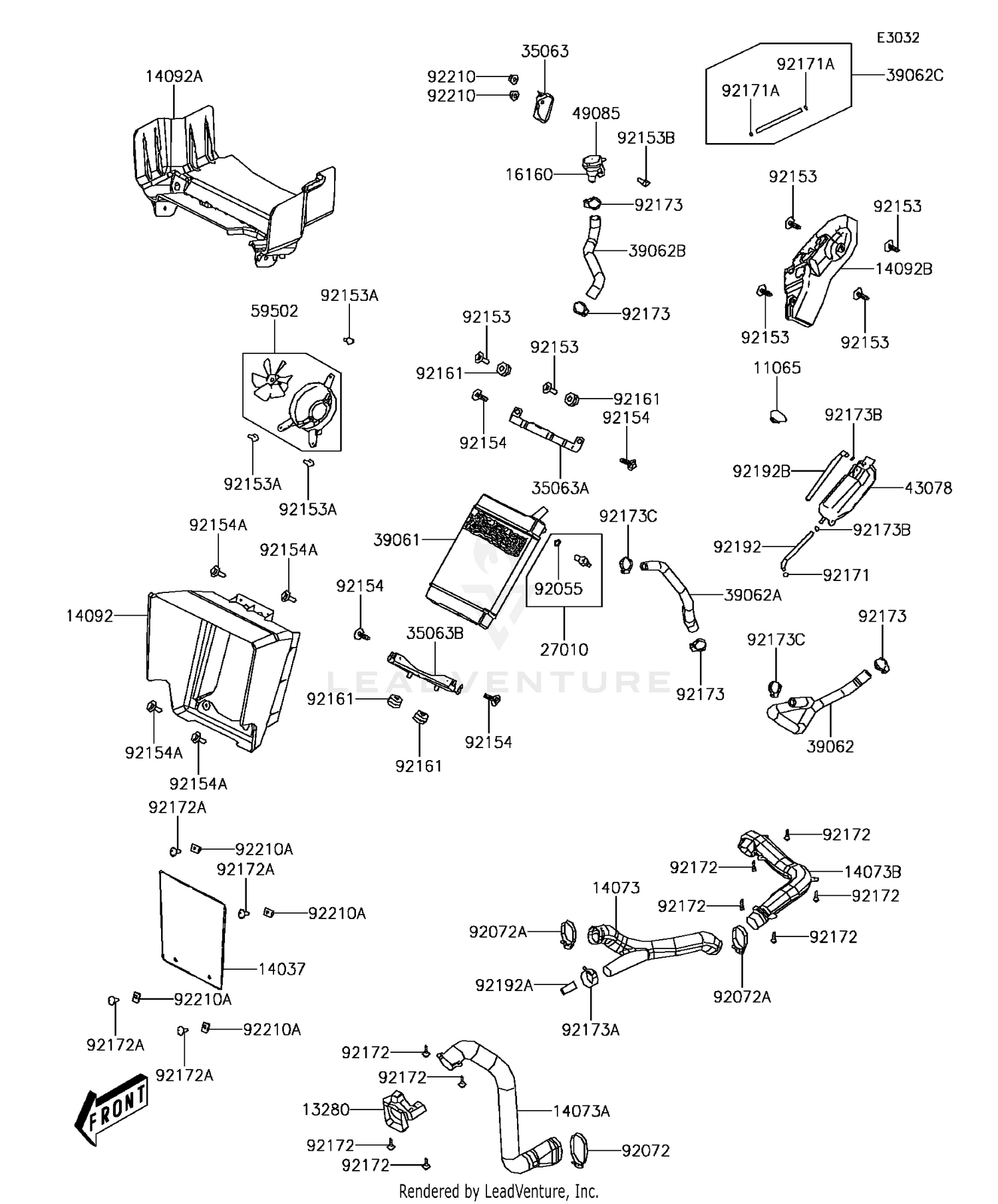

2018 Kawasaki BRUTE FORCE 300 Radiator OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#11065 CAP,RESERVE TANK 11065-Y021	$3.48
Available: Ships in 7-12 days. Add to View Price
#13280 HOLDER,DUCT 13280-Y017	$13.31
Available: Ships in 7-12 days. Add to View Price
#14037 SCREEN 14037-Y003	$27.70
Available: Ships in 7-12 days. Add to View Price
#14073 DUCT 14073-Y004	$29.01
Available: Ships in 7-12 days. Add to View Price
#14073A DUCT 14073-Y005	$53.33
Available: Ships in 7-12 days. Add to View Price
#14073B DUCT 14073-Y006	$29.41
Available: Ships in 7-12 days. Add to View Price
#14092 COVER,RADIATOR,S.BLACK 14092-Y019-933	$39.60
Available: Ships in 7-12 days. Add to View Price
#14092A COVER,RADIATOR,S.BLACK 14092-Y020-933	$20.40
Available: Ships in 7-12 days. Add to View Price
#14092B COVER,MASTER CYLINDER 14092-Y021	$13.74
Available: Ships in 7-12 days. Add to View Price
#16160 BODY,PRESSURE CAP 16160-Y003	$28.71
Available: Ships in 7-12 days. Add to View Price
#27010 SWITCH,THERMOSTAT 27010-Y007	$62.32
Available: Ships in 7-12 days. Add to View Price
#35063 STAY,CAP-ASSY 35063-Y014	$7.14
Available: Ships in 7-12 days. Add to View Price
#35063A STAY,RADIATOR,UPP 35063-Y015	$25.76
Available: Ships in 7-12 days. Add to View Price
#35063B STAY,RADIATOR,LWR 35063-Y016	$27.51
Available: Ships in 7-12 days. Add to View Price
#39061 RADIATOR-ASSY 39061-Y001	$154.46
Available: Ships in 7-12 days. Add to View Price
#39062 HOSE-COOLING 39062-Y002	$18.81
Available: Ships in 7-12 days. Add to View Price
#39062A HOSE-COOLING 39062-Y003	$23.25
Available: Ships in 7-12 days. Add to View Price
#39062B HOSE-COOLING 39062-Y004	$14.15
Available: Ships in 7-12 days. Add to View Price
#39062C HOSE-COOLING 39062-Y005	$7.14
Available: Ships in 7-12 days. Add to View Price
#43078 RESERVOIR,TANK 43078-Y002	$45.22
Available: Ships in 7-12 days. Add to View Price
#49085 CAP-ASSY-PRESSURE 49085-Y001	$26.86
Available: Ships in 7-12 days. Add to View Price
#59502 FAN-ASSY 59502-Y001	$136.24
Available: Ships in 7-12 days. Add to View Price
#92055 RING-O 92055-Y056	$3.11
Available: Ships in 7-12 days. Add to View Price
#92072 BAND 92072-Y009	$5.07
Available: Ships in 7-12 days. Add to View Price
#92072A BAND 92072-Y010	$6.24
Available: Ships in 7-12 days. Add to View Price
#92153 BOLT,6X16 92153-Y018	$1.26
Available: Ships in 7-12 days. Add to View Price
#92153A BOLT,6X20 92153-Y019	$1.26
Available: Ships in 7-12 days. Add to View Price
#92153B BOLT,FLANGE,6X12 92153-Y023	$0.74
Available: Ships in 7-12 days. Add to View Price
#92154 BOLT,6X12 92154-Y032	$1.44
Available: Ships in 7-12 days. Add to View Price
#92154A BOLT,5X12 92154-Y049	$3.59
Available: Ships in 7-12 days. Add to View Price
#92161 DAMPER 92161-Y006	$1.36
Available: Ships in 7-12 days. Add to View Price
#92171 CLAMP 92171-Y011	$0.77
Available: Ships in 7-12 days. Add to View Price
#92171A CLAMP 92171-Y017	$0.74
Available: Ships in 7-12 days. Add to View Price
#92172 SCREW,TAPPING,5X16 92172-Y020	$1.58
Available: Ships in 7-12 days. Add to View Price
#92172A SCREW,4MM 92172-Y049	$1.83
Available: Ships in 7-12 days. Add to View Price
#92173 CLAMP 92173-Y005	$3.59
Available: Ships in 7-12 days. Add to View Price
#92173A CLAMP 92173-Y024	$8.35
Available: Ships in 7-12 days. Add to View Price
#92173B CLAMP 92173-Y025	$2.22
Available: Ships in 7-12 days. Add to View Price
#92173C CLAMP 92173-Y026	$1.69
Available: Ships in 7-12 days. Add to View Price
#92192 TUBE 92192-Y018	$35.83
Available: Ships in 7-12 days. Add to View Price
#92192A TUBE,DRAIN 92192-Y019	$7.14
Available: Ships in 7-12 days. Add to View Price
#92192B TUBE,DRAIN 92192-Y023	$20.40
Available: Ships in 7-12 days. Add to View Price
#92210 NUT,6MM 92210-Y026	$1.36
Available: Ships in 7-12 days. Add to View Price
#92210A NUT,4MM 92210-Y054	$3.59
Available: Ships in 7-12 days. Add to View Price
