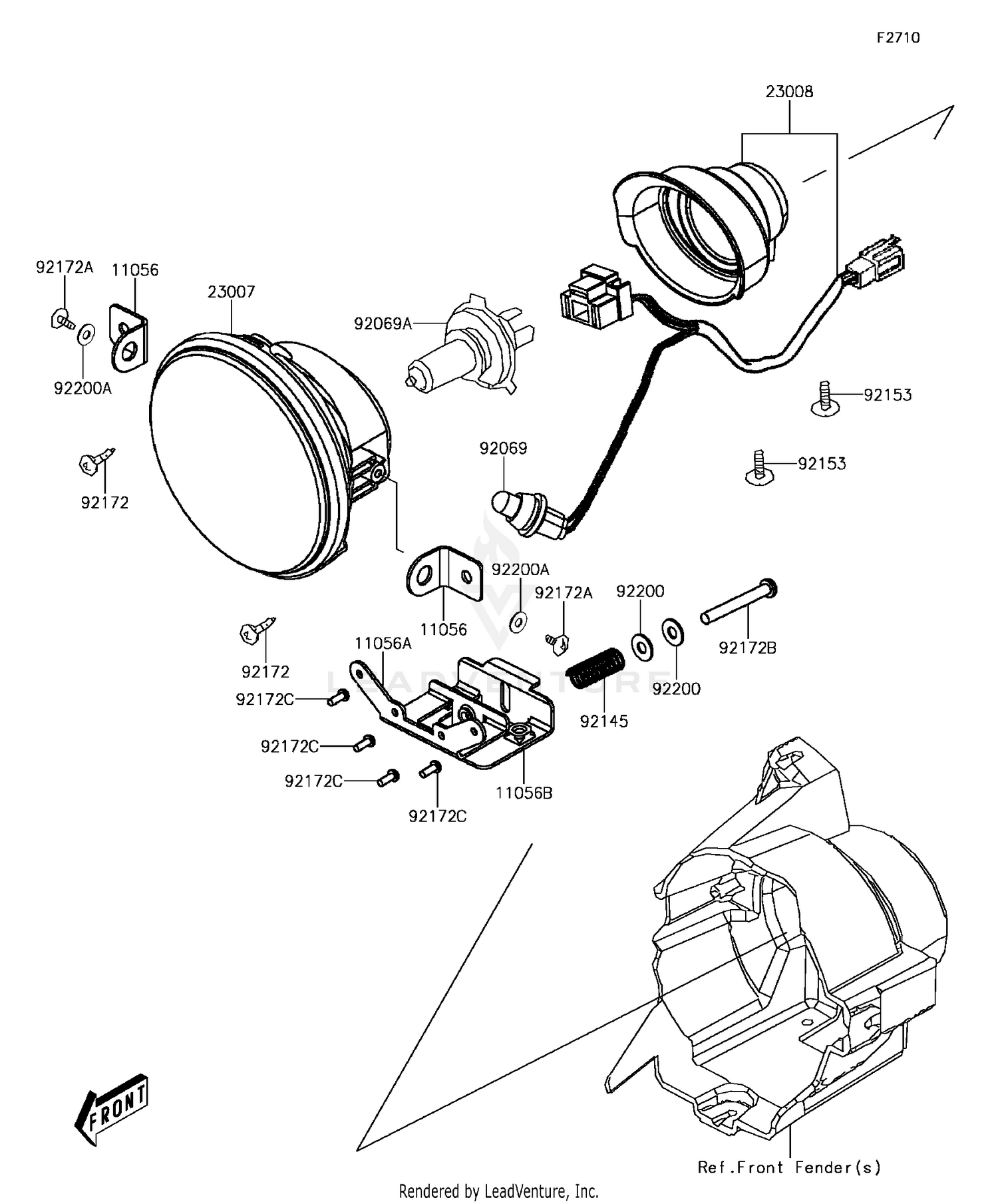

2018 Kawasaki BRUTE FORCE 300 Headlight(s) OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11056
BRACKET,HEAD LAMP
11056-Y022
|
$5.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11056A
BRACKET,HEAD LAMP
11056-Y024
|
$37.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11056B
BRACKET,HEAD LAMP
11056-Y025
|
$28.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23007
LENS-COMP,HEAD LAMP
23007-Y002
|
$79.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23008
SOCKET-ASSY,HEAD LAMP
23008-Y003
|
$37.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92069
BULB,12V 5W
92069-0028
|
$9.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92069A
BULB
92069-0039
|
$43.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92145
SPRING
92145-Y056
|
$17.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92153
BOLT,5X16
92153-Y013
|
$0.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92172
SCREW,TAPPING,5X16
92172-Y020
|
$1.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92172A
SCREW,TAPPING,4X10
92172-Y063
|
$4.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92172B
SCREW
92172-Y076
|
$8.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92172C
SCREW,TAPPING,3X8
92172-Y077
|
$5.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200
WASHER
92200-Y064
|
$5.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200A
WASHER
92200-Y065
|
$3.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
