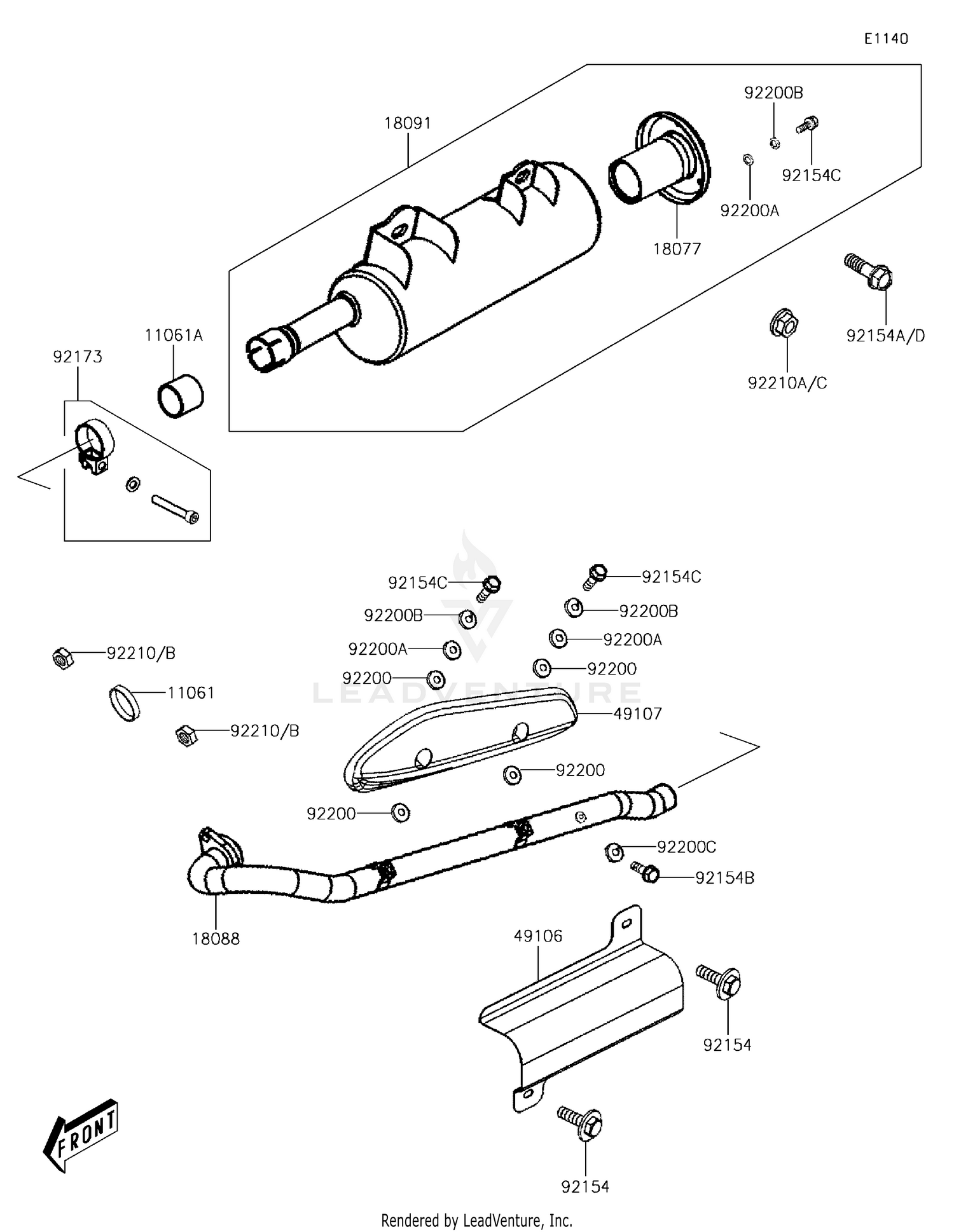

2014 Kawasaki BRUTE FORCE 300 Muffler(s) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#11061 GASKET,EXHAUST PIPE 11061-Y032	$4.13
Available: Ships in 7-12 days. Add to View Price
#11061A GASKET,EXHAUST PIPE CONNECTING 11061-Y033	$36.99
Available: Ships in 7-12 days. Add to View Price
#18077 ARRESTER-SPARK 18077-Y001	$84.94
Available: Ships in 7-12 days. Add to View Price
#18088 PIPE-EXHAUST 18088-Y001	$114.60
Available: Ships in 7-12 days. Add to View Price
#18091 BODY-COMP-MUFFLER 18091-Y001	$390.60
Available: Ships in 7-12 days. Add to View Price
#49106 COVER-MUFFLER 49106-Y001	$27.92
Available: Ships in 7-12 days. Add to View Price
#49107 COVER-EXHAUST PIPE 49107-Y001	$29.41
Available: Ships in 7-12 days. Add to View Price
#92154 BOLT,6X12 92154-Y032	$1.44
Available: Ships in 7-12 days. Add to View Price
#92154A BOLT,FLANGE,8X30 92154-Y033 Superseded by 92154-Y137	$4.87
Available: Ships in 7-12 days. Add to View Price
#92154B BOLT,FLANGE,6X8 92154-Y034	$0.93
Available: Ships in 7-12 days. Add to View Price
#92154C BOLT,FLANGE,6X12 92154-Y035	$1.44
Available: Ships in 7-12 days. Add to View Price
#92173 CLAMP,MUFFLER 92173-Y021	$10.86
Available: Ships in 7-12 days. Add to View Price
#92200 WASHER 92200-Y039	$2.46
Available: Ships in 7-12 days. Add to View Price
#92200A WASHER,6MM 92200-Y040	$1.44
Available: Ships in 7-12 days. Add to View Price
#92200B WASHER,6MM 92200-Y042	$0.93
Available: Ships in 7-12 days. Add to View Price
#92200C WASHER,6MM 92200-0459	$0.93
Available: Ships in 7-12 days. Add to View Price
#92210 NUT,8MM 92210-Y018	$0.74
Available: Ships in 7-12 days. Add to View Price
#92210A NUT,8MM 92210-Y028	$0.77
Available: Ships in 7-12 days. Add to View Price
