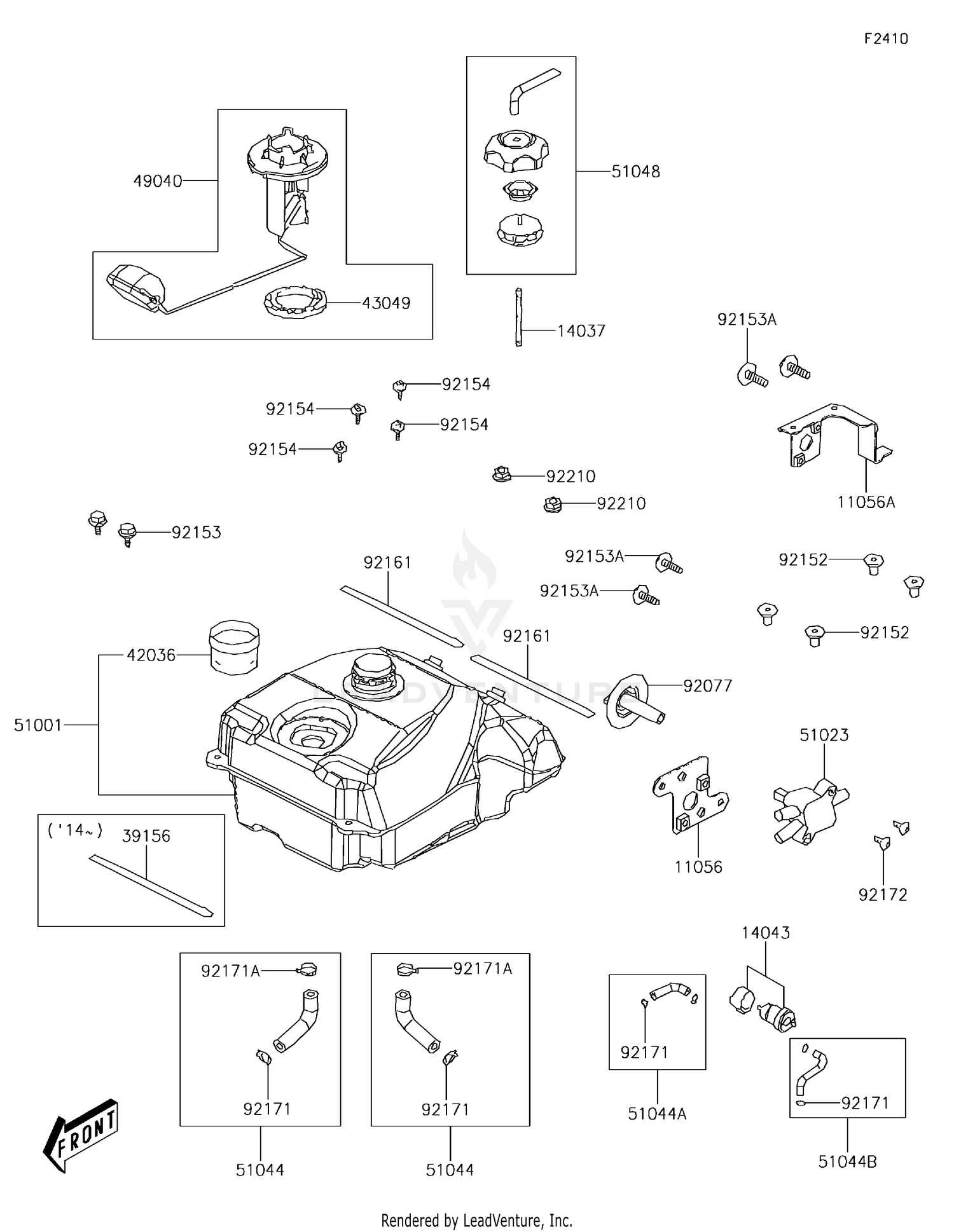

2013 Kawasaki BRUTE FORCE 300 Fuel Tank OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11056
BRACKET
11056-Y003
|
$5.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11056A
BRACKET
11056-Y007
|
$8.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14037
SCREEN
14037-Y001
|
$4.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14043
FILTER,FUEL
14043-Y002
|
$11.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42036
SLEEVE,FUEL TANK
42036-Y002
|
$2.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43049
PACKING
43049-Y002
|
$14.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49040
PUMP-FUEL
49040-Y001
|
$62.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51001
TANK-COMP-FUEL
51001-Y007
|
$380.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51023
TAP-ASSY,FUEL
51023-Y002
Superseded by 51023-Y004
|
$27.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51044
TUBE-ASSY,FUEL TANK
51044-Y011
|
$9.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51044A
TUBE-ASSY,FUEL
51044-Y012
|
$9.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51044B
TUBE-ASSY,FUEL
51044-Y013
|
$10.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51048
CAP-ASSY-TANK,FUEL
51048-Y001
|
$29.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92077
KNOB,FUEL TAP
92077-Y001
|
$3.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92152
COLLAR
92152-Y013
|
$1.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92153
BOLT,FLANGE,6X22
92153-Y026
|
$0.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,5X12
92153-1991
|
$0.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154
BOLT,5X16
92154-Y030
|
$0.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92161
DAMPER,FUEL TANK
92161-Y016
|
$4.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92171
CLAMP
92171-Y011
|
$0.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92171A
CLAMP
92171-Y013
|
$1.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92172
SCREW,5X16
92172-Y042
|
$1.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92210
NUT,6MM
92210-Y027
|
$0.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
