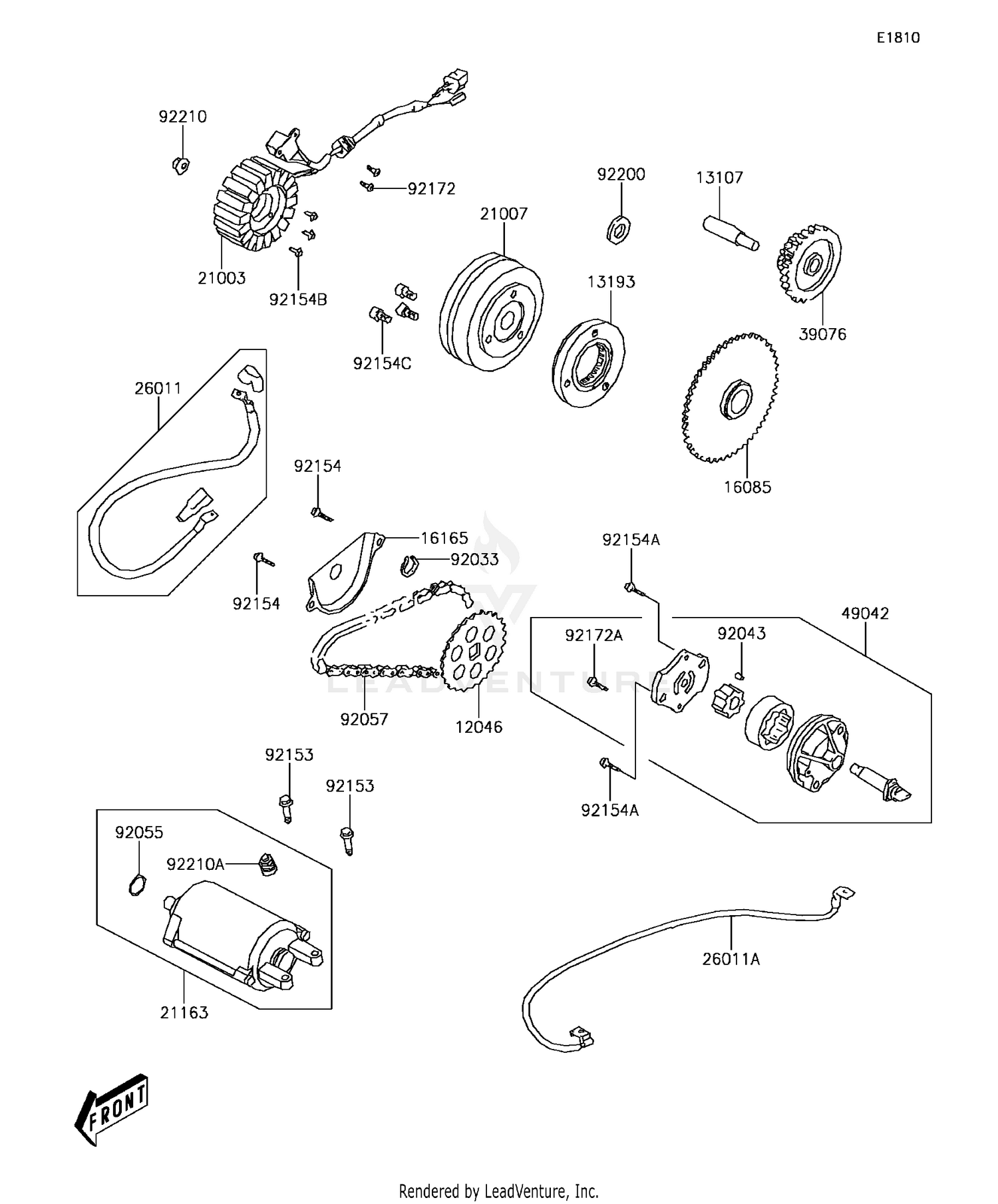

2018 Kawasaki BRUTE FORCE 300 Generator OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#12046
SPROCKET,OIL PUMP DRIVEN
12046-Y001
|
$18.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13107
SHAFT,STARTER REDUCTION
13107-Y008
|
$9.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13193
CLUTCH-ASSY-ONEWAY
13193-Y002
|
$377.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16085
GEAR,STARTER
16085-Y009
|
$68.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16165
SEPARATOR,OIL
16165-Y003
|
$9.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21003
STATOR
21003-Y007
|
$157.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21007
ROTOR
21007-Y007
|
$112.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21163
STARTER-ELECTRIC
21163-Y003
|
$246.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26011
WIRE-LEAD,STARTER CABLE
26011-Y001
|
$43.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26011A
WIRE-LEAD,EARTH
26011-Y002
|
$49.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39076
LIMITER,STARTER REDUCTION
39076-Y002
|
$56.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49042
PUMP-OIL
49042-Y003
|
$58.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92033
RING-SNAP,10MM
92033-Y019
|
$1.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92043
PIN,DOWEL,4X65
92043-Y015
|
$0.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92055
RING-O,24.4X3.1
92055-Y025
|
$2.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92057
CHAIN,OIL PUMP
92057-Y006
|
$39.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92153
BOLT,FLANGE,6X22
92153-Y003
|
$0.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154
BOLT,FLANGE,6X12
92154-Y035
|
$1.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154A
BOLT,FLANGE,6X28
92154-Y068
|
$2.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154B
BOLT,HEX,5X32
92154-Y112
|
$2.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92154C
BOLT,8X15
92154-Y123
|
$4.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92172
SCREW,3X10
92172-Y066
|
$2.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92172A
SCREW,5X16
92172-Y067
|
$2.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200
WASHER,14X28X2
92200-Y026
|
$2.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92210
NUT,FLANGE,14MM
92210-Y038
|
$3.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92210A
NUT,6MM
92210-Y039
|
$0.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
