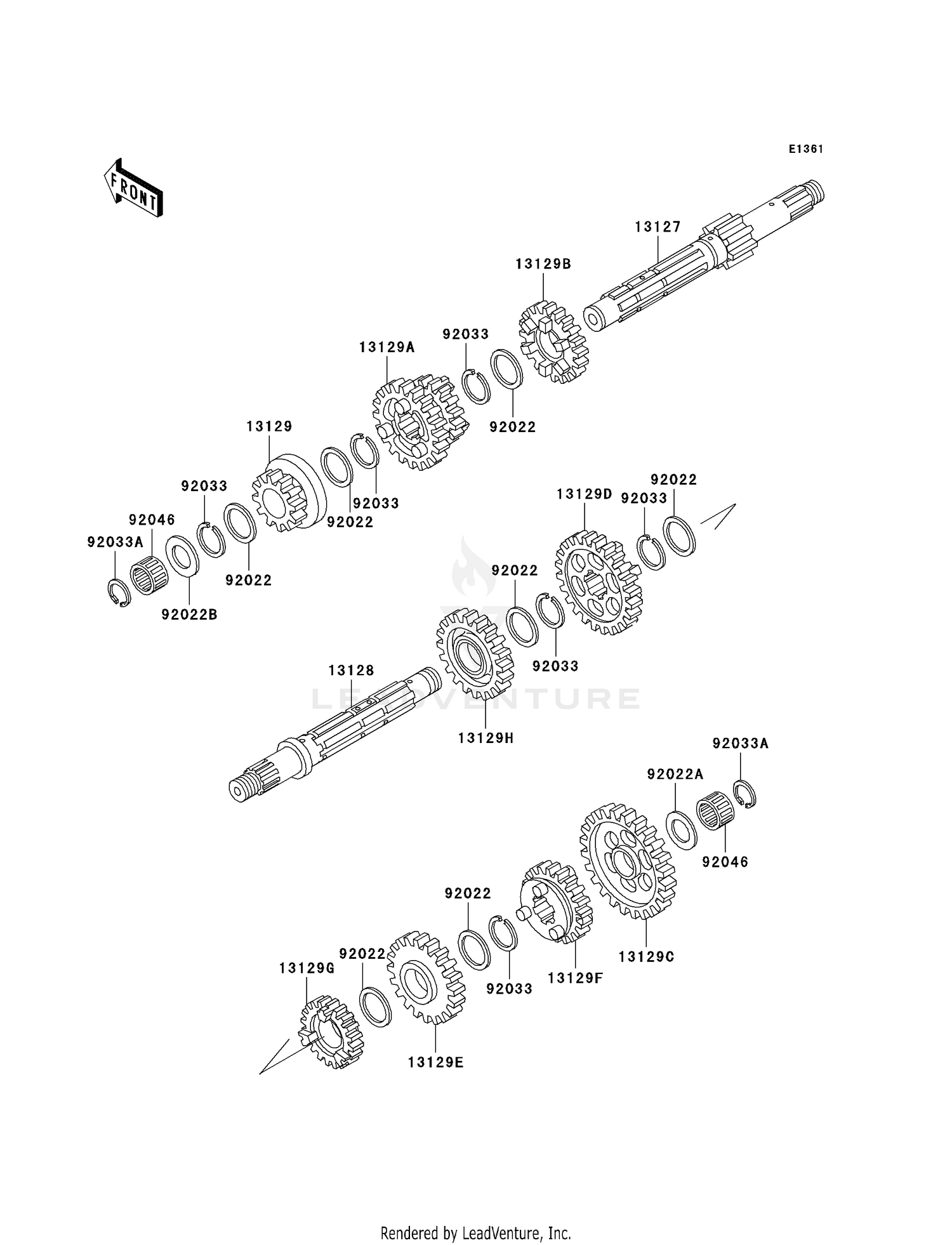

2003 Kawasaki BAYOU 300 4X4 TRANSMISSION OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#13127 SHAFT-TRANSMISSION IN 13127-1127	$209.04
Available: Ships in 7-12 days. Add to View Price
#13128 SHAFT-TRANSMISSION OU 13128-1132	$178.47
Available: Ships in 7-12 days. Add to View Price
#13129 GEAR,INPUT 2ND,14T 13129-1680	$112.39
Available: Ships in 7-12 days. Add to View Price
#13129A GEAR,INPUT TOP&3RD,26 13129-1681	$123.09
Available: Ships in 7-12 days. Add to View Price
#13129B GEAR,INPUT 4TH,23T 13129-1682	$112.39
Available: Ships in 7-12 days. Add to View Price
#13129C GEAR,OUTPUT LWR,34T 13129-1683	$119.28
Available: Ships in 7-12 days. Add to View Price
#13129D GEAR,OUTPUT 2ND,27T 13129-1684	$119.28
Available: Ships in 7-12 days. Add to View Price
#13129E GEAR,OUTPUT 3RD,26T 13129-1685	$112.39
Available: Ships in 7-12 days. Add to View Price
#13129F GEAR,OUTPUT 4TH,22T 13129-1686	$112.39
Available: Ships in 7-12 days. Add to View Price
#13129G GEAR,OUTPUT TOP,20T 13129-1687	$112.39
Available: Ships in 7-12 days. Add to View Price
#13129H GEAR-REVERSE,26T 13129-1688	$112.39
Available: Ships in 7-12 days. Add to View Price
#92022 WASHER,22.3X27X0.5 92022-198	$5.14
Available: Ships in 7-12 days. Add to View Price
#92022A WASHER,17.3X28X1 92022-255	$7.98
Available: Ships in 7-12 days. Add to View Price
#92022B WASHER,17.3X30X1.4 92022-270	$9.15
Available: Ships in 7-12 days. Add to View Price
#92033 RING-SNAP,20X25.5X1.2 92033-025	$4.66
Available: Ships in 7-12 days. Add to View Price
#92033A RING-SNAP 92033-032	$4.66
Available: Ships in 7-12 days. Add to View Price
#92046 BEARING-NEEDLE,K17X23X13.8 92046-1184	$20.14
Available: Ships in 7-12 days. Add to View Price
