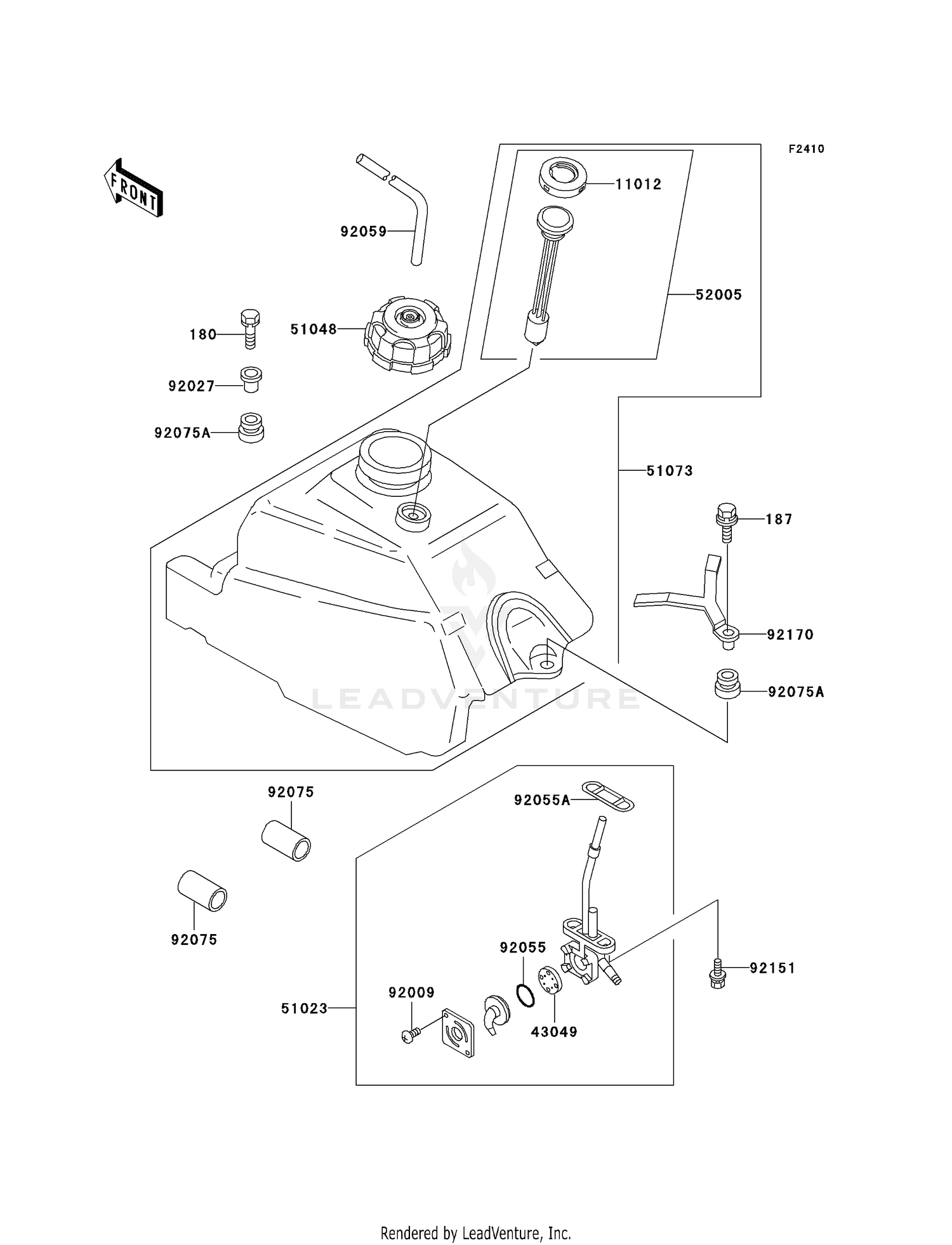

2003 Kawasaki BAYOU 300 4X4 FUEL TANK OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#180 BOLT-UPSET-WS,6X25 180D0625 Superseded by 180AA0625	$3.97
Available: Ships in 7-12 days. Add to View Price
#187 BOLT-UPSET-WSP 187D0630 Superseded by 187AA0630	$0.69
Available: Ships in 7-12 days. Add to View Price
#11012 CAP,FUEL GAUGE 11012-1627	$15.89
Available: Ships in 7-12 days. Add to View Price
#43049 PACKING,VALVE 43049-1102	$6.56
Available: Ships in 7-12 days. Add to View Price
#51023 TAP-ASSY,FUEL 51023-1351 Superseded by 51023-0729	$117.56
Available: Ships in 7-12 days. Add to View Price
#51048 CAP-ASSY-TANK,FUEL 51048-1133	$59.58
Available: Ships in 7-12 days. Add to View Price
#51073 TANK-COMP-FUEL 51073-1045	$269.72
Available: Ships in 7-12 days. Add to View Price
#52005 GAUGE,FUEL 52005-1121 Superseded by 52005-0735	$89.30
Available: Ships in 7-12 days. Add to View Price
#92009 SCREW,3X5 92009-1123	$0.58
Available: Ships in 7-12 days. Add to View Price
#92027 COLLAR,L=16.1 92027-1847	$5.79
Available: Ships in 7-12 days. Add to View Price
#92055 RING-O,FUEL TAP LEVER 92055-1111 Superseded by 92055-0960	$4.66
Available: Ships in 7-12 days. Add to View Price
#92055A RING-O,FUEL TAP PACKI 92055-1348	$6.57
Available: Ships in 7-12 days. Add to View Price
#92059 TUBE 92059-1982	$11.64
Available: Ships in 7-12 days. Add to View Price
#92075 DAMPER,FUEL TANK,FR 92075-1369	$7.02
Available: Ships in 7-12 days. Add to View Price
#92075A DAMPER 92075-1787	$6.12
Available: Ships in 7-12 days. Add to View Price
#92151 BOLT 92151-1198	$4.08
Available: Ships in 7-12 days. Add to View Price
#92170 CLAMP,HOSE 92170-1070	$14.78
Available: Ships in 7-12 days. Add to View Price
