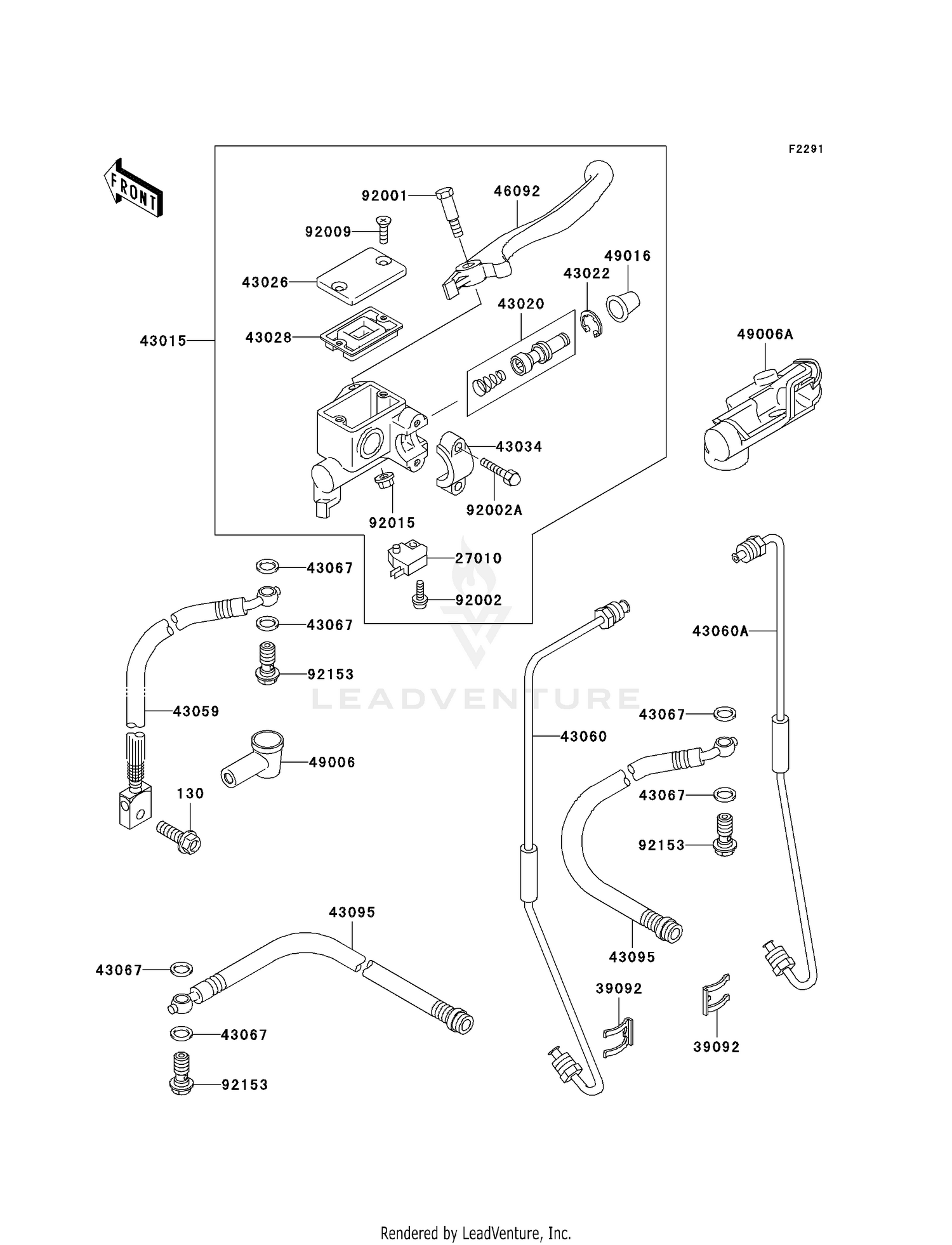

2003 Kawasaki BAYOU 300 4X4 FRONT MASTER CYLINDER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,8X25
130B0825
Superseded by 130CA0825
|
$1.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27010
SWITCH,BRAKE
27010-1170
|
$26.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39092
PIN-HAIR
39092-1052
|
$7.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-1646
|
$367.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE,FR
43020-1056
|
$59.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43022
STOPPER-BRAKE,PISTON
43022-1010
|
$4.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1074
|
$23.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-1061
|
$15.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43034
HOLDER-BRAKE,MASTER CYLINDER
43034-1016
|
$18.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43059
HOSE-BRAKE,FR
43059-1443
|
$32.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43060
PIPE-BRAKE,LH
43060-1080
|
$30.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43060A
PIPE-BRAKE,RH
43060-1081
|
$30.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43067
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43095
HOSE-BRAKE,FR
43095-1087
|
$29.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46092
LEVER-GRIP,FRONT BRAKE
46092-1208
|
$19.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49006
BOOT,DUST
49006-1040
Superseded by 49006-1041
|
$10.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49006A
BOOT
49006-1338
|
$9.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49016
COVER-SEAL,MASTER CYLINDER
49016-1044
|
$8.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92001
BOLT,FRONT BRAKE LEVER
92001-1728
|
$13.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92002
BOLT,SCREW,4X12
92002-1323
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92002A
BOLT
92002-1894
|
$5.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009
SCREW,4MM
92009-1458
|
$3.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1233
|
$5.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92153
BOLT,OIL,L=23
92153-0627
|
$5.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
