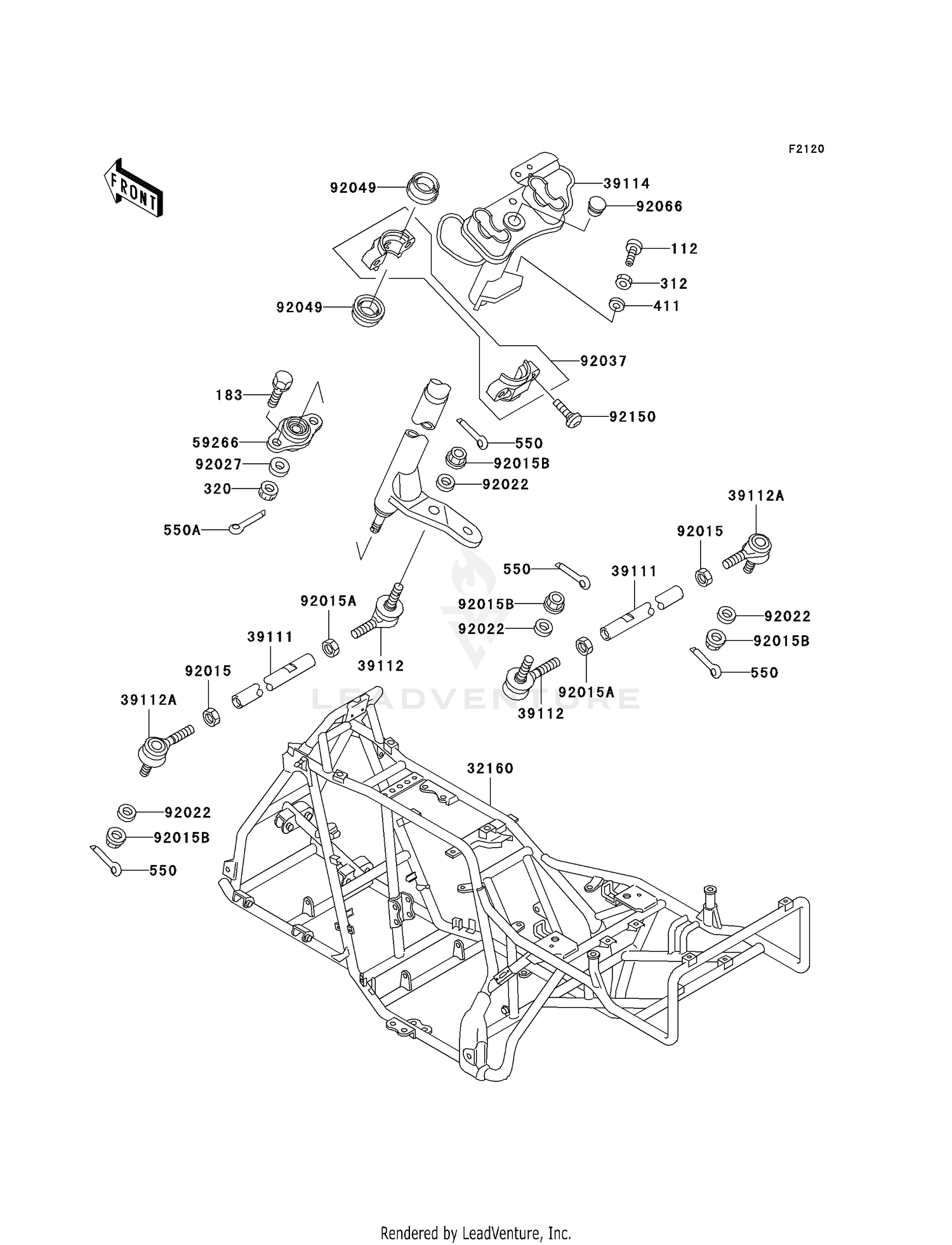

2003 Kawasaki BAYOU 300 4X4 FRAME OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#112
BOLT-UPSET,6X20
112P0620
Superseded by 112CA0620
|
$4.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#183
BOLT-UPSET-WS-SMALL
183G0822
Superseded by 183BA0822
|
$5.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#312
NUT-HEX
312B0600
Superseded by 312AA0600
|
$0.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#320
NUT-CASTLE
320H1000
Superseded by 320BA1000
|
$7.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#411
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#550A
PIN-COTTER,2.5X18
550D2518
Superseded by 550AA2518
|
$0.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32160
FRAME-COMP
32160-1467
|
$869.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39111
ROD-TIE
39111-1090
|
$27.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39112
RODEND-TIE
39112-1063
|
$85.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39112A
RODEND-TIE
39112-1064
|
$85.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39114
SHAFT-COMP-STRG
39114-1068
|
$208.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#59266
JOINT-BALL
59266-1066
|
$130.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015
NUT,LOCK,10MM
92015-1460
|
$5.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015A
NUT,LOCK,10MM
92015-1494
|
$5.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015B
NUT,LOCK,FLANGED,10MM
92015-1717
|
$9.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022
WASHER,10.5X20X1
92022-239
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92027
COLLAR,10X21.3X7
92027-1817
|
$13.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92037
CLAMP
92037-1975
|
$64.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92049
SEAL-OIL,SR7 25 34 7.
92049-1278
|
$6.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92066
PLUG
92066-1220
|
$4.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92150
BOLT
92150-1058
|
$6.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
