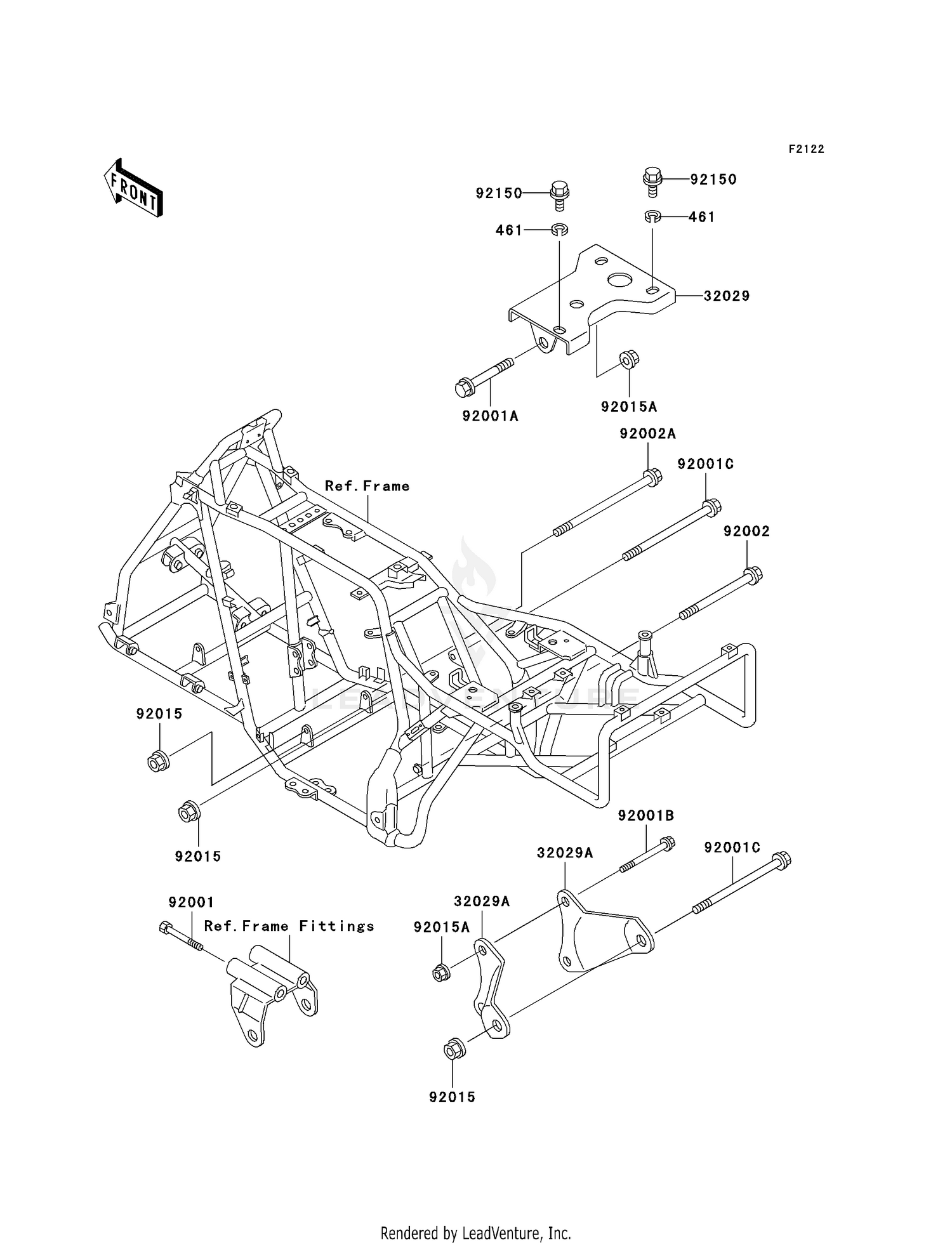

2003 Kawasaki BAYOU 300 4X4 ENGINE MOUNT OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#461
WASHER-SPRING,8MM,BLA
461K0800
Superseded by 461DB0800
|
$2.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32029
BRACKET-ENGINE,TOP
32029-1569
|
$93.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32029A
BRACKET-ENGINE FR
32029-1614
|
$17.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92001
BOLT,FLANGED,8X65
92001-1375
Superseded by 92002-1349
|
$4.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92001A
BOLT,FLANGED,8X60
92001-1615
|
$6.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92001B
BOLT,FLANGED,8X85
92001-1718
|
$8.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92001C
BOLT,FLANGED,10X160,B
92001-1953
|
$18.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92002
BOLT,FLANGED,10X130
92002-1087
|
$8.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,10X180
92002-1546
|
$15.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGED,10MM
92015-1335
Superseded by 92210-0276
|
$2.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015A
NUT,8MM
92015-1432
|
$6.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92150
BOLT,FLANGED,8X14
92150-1066
|
$4.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
