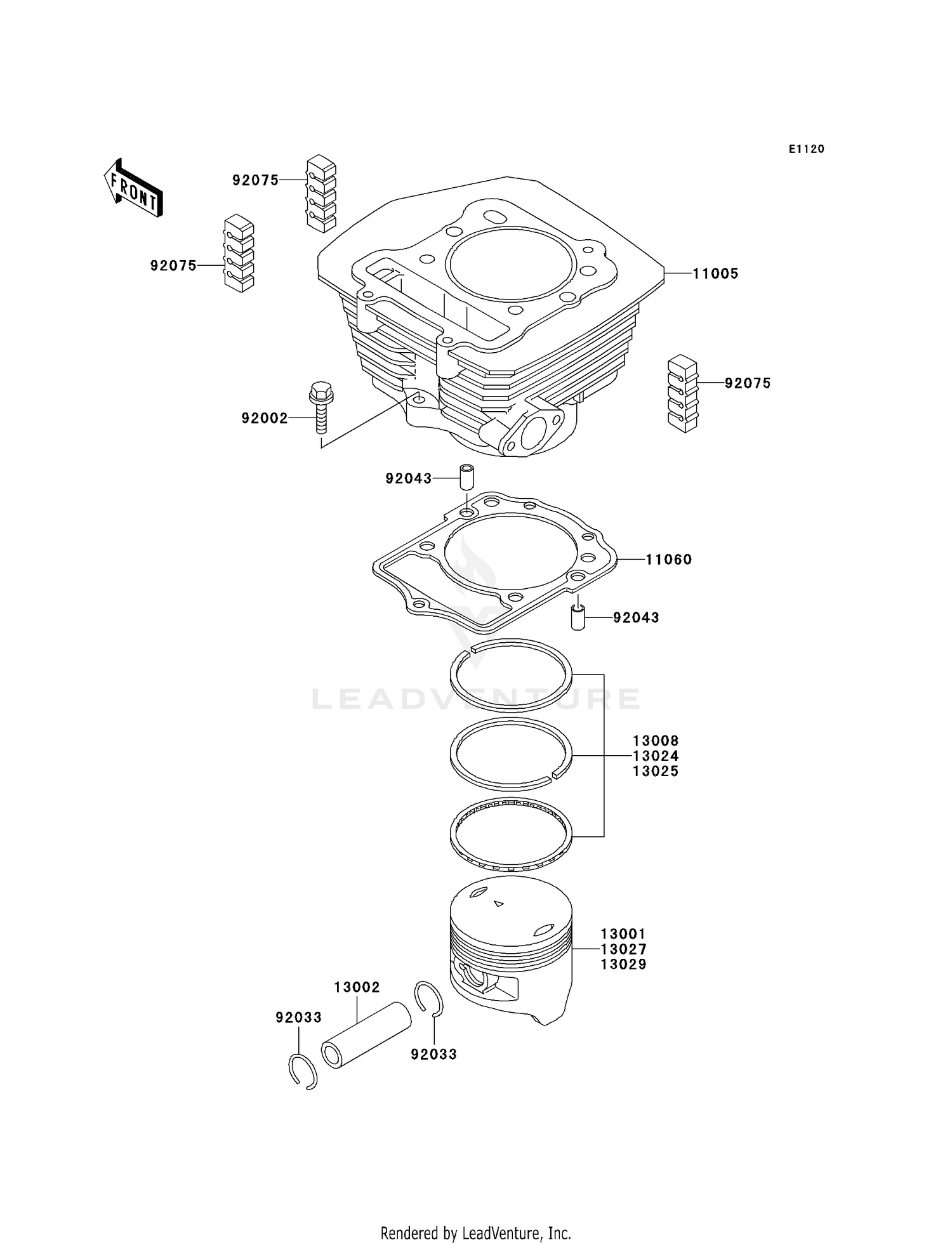

2003 Kawasaki BAYOU 300 4X4 CYLINDER/PISTON(S) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11005
CYLINDER-ENGINE
11005-1533
|
$543.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11060
GASKET,CYLINDER BASE
11060-1652
|
$11.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13001
PISTON-ENGINE,STD
13001-1430
|
$121.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13002
PIN-PISTON
13002-1059
|
$22.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13008
RING-SET-PISTON,STD
13008-1111
|
$71.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13024
RING-SET-PISTON LL,O/
13024-1080
|
$76.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13025
RING-SET-PISTON L,O/S
13025-1093
|
$71.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13027
PISTON-ENGINE LL,O/S
13027-1178
|
$117.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13029
PISTON-ENGINE L,O/S 0
13029-1224
|
$117.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92002
BOLT,6X28
92002-1105
|
$5.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92033
RING-SNAP,20.5X1.2
92033-1099
|
$0.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92043
PIN,6.2X8X14
92043-1263
|
$0.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92075
DAMPER
92075-1657
|
$12.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
