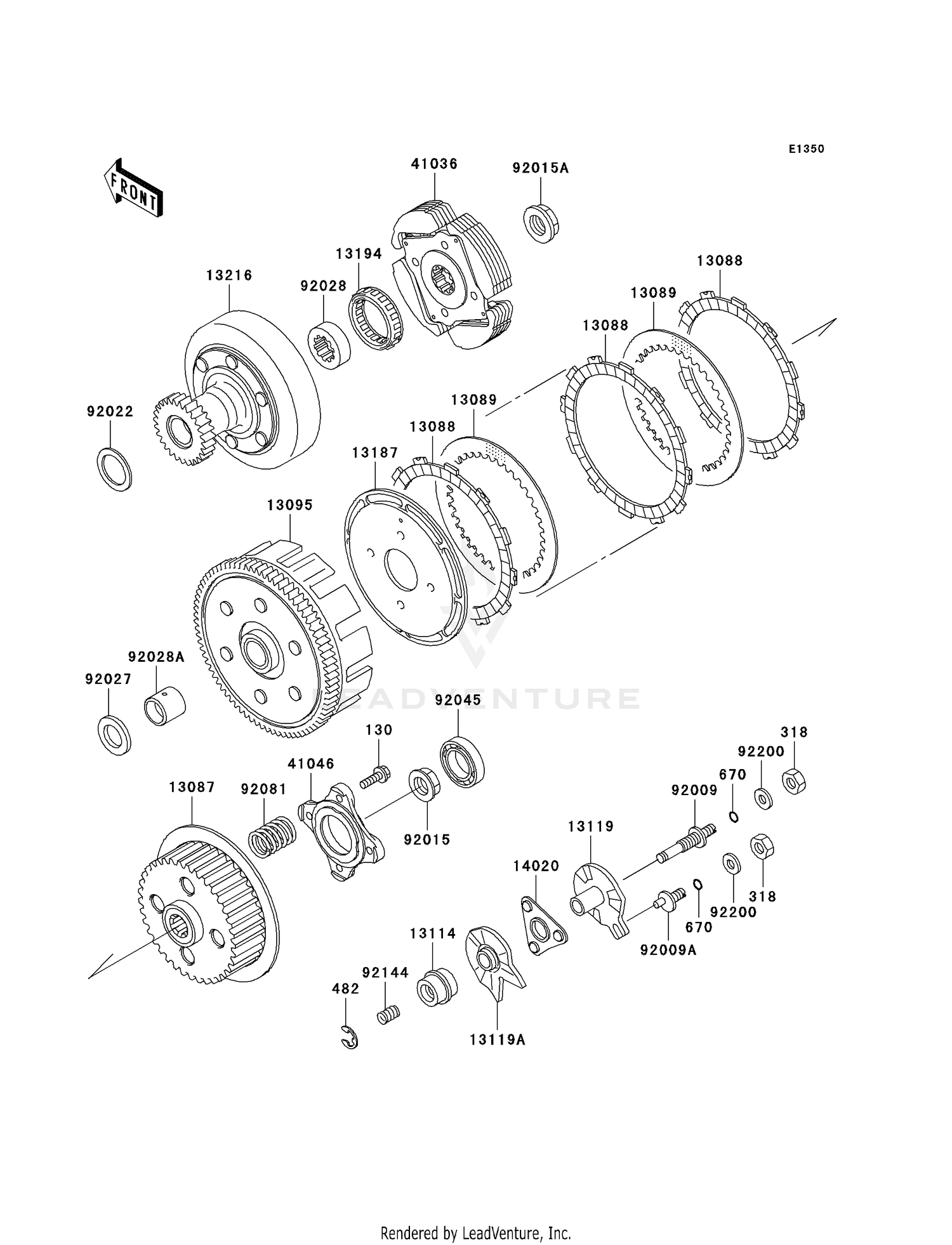

2003 Kawasaki BAYOU 300 4X4 CLUTCH OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X20
130P0620
Superseded by 130CA0620
|
$1.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#318
NUT-HEX-SMALL,8MM
318B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#482
CIRCLIP 7MM
482J7000
|
$0.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#670
O RING,8MM
670B1508
|
$1.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13087
HUB-CLUTCH
13087-1065
|
$97.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-041
Superseded by 13088-1091
|
$15.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13089
PLATE-CLUTCH,T=2.0
13089-1005
|
$12.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-1364
|
$181.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13114
PUSHER-CLUTCH
13114-1060
|
$22.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13119
CAM-RELEASE
13119-1067
|
$47.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13119A
CAM-RELEASE
13119-1070
|
$43.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13187
PLATE-CLUTCH OPERATIN
13187-1081
|
$65.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13194
CLUTCH-ONEWAY
13194-1055
|
$115.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13216
GEAR-COMP,CLUTCH,FR
13216-1185
|
$181.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14020
RETAINER,CLUTCH RELEA
14020-1092
|
$18.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41036
HUB-ASSY,CLUTCH,FR
41036-1286
|
$413.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41046
HOUSING-BEARING
41046-1063
|
$54.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009
SCREW
92009-1525
|
$22.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009A
SCREW
92009-1526
|
$22.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015
NUT,16MM
92015-1465
|
$17.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92015A
NUT,18MM
92015-1512
|
$17.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022
WASHER,27.3X38X0.8
92022-1989
|
$4.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92027
COLLAR,20.5X34X4
92027-1888
|
$17.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92028
BUSHING
92028-1370
|
$36.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92028A
BUSHING,CLUTCH
92028-1371
|
$27.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92045
BEARING-BALL,#6905
92045-036
|
$26.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92081
SPRING,CLUTCH
92081-1848
|
$8.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92144
SPRING
92144-1272
|
$4.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92200
WASHER,8.5X18X2.3
92200-1213
|
$2.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
