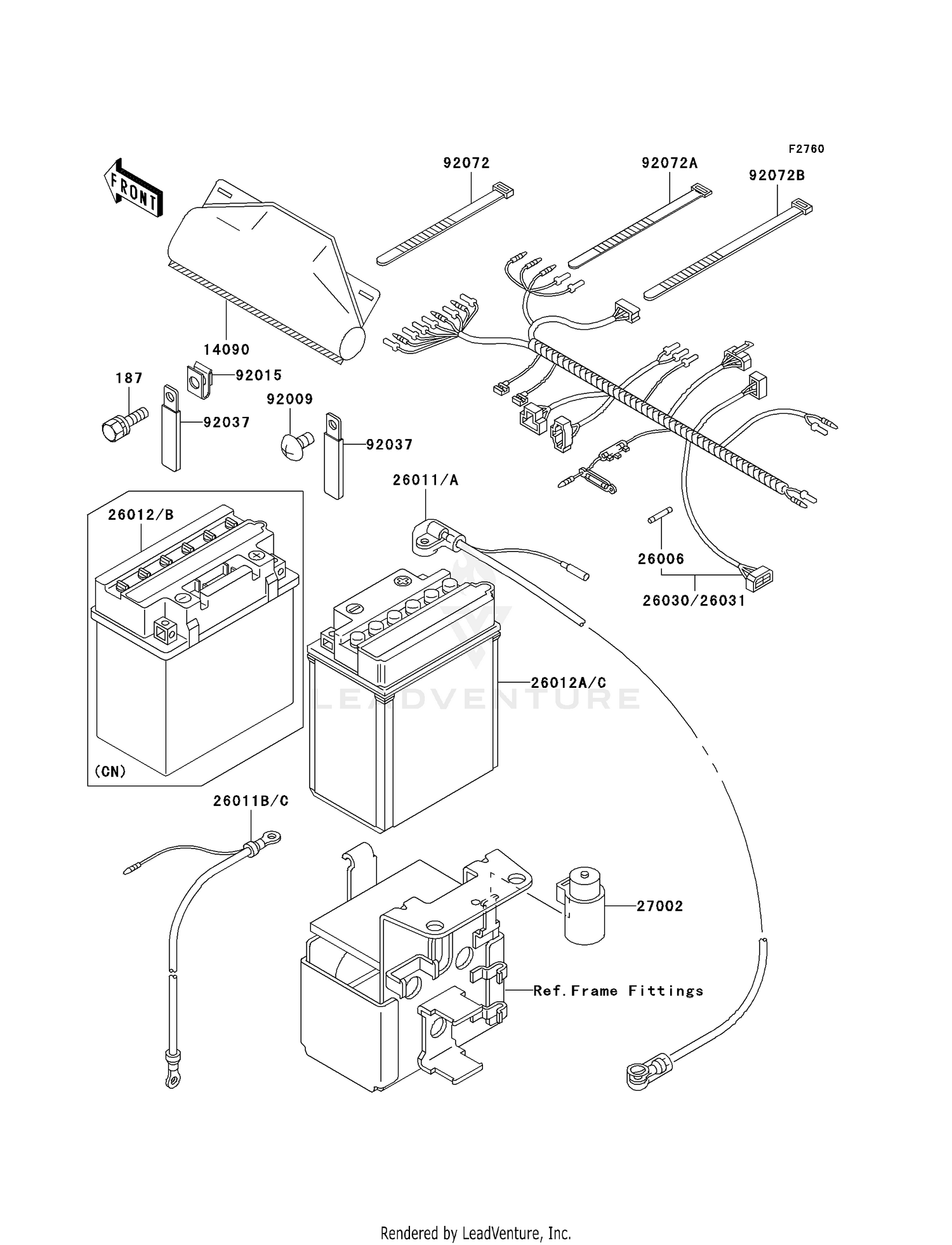

2003 Kawasaki BAYOU 300 4X4 CHASSIS ELECTRICAL EQUIPMENT OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#187 BOLT-UPSET-WSP 187C0614 Superseded by 187AB0614	$4.11
Available: Ships in 7-12 days. Add to View Price
#14090 COVER,COUPLER 14090-1611	$7.98
Available: Ships in 7-12 days. Add to View Price
#26006 FUSE,30A,L=30 26006-1059	$4.66
Available: Ships in 7-12 days. Add to View Price
#26011 WIRE-LEAD,BATTERY(+) 26011-1544
Unavailable
#26011A WIRE-LEAD,BATTERY(+) 26011-1545	$36.73
Available: Ships in 7-12 days. Add to View Price
#26011B WIRE-LEAD,BATTERY(-) 26011-1559	$38.20
Available: Ships in 7-12 days. Add to View Price
#26011C WIRE-LEAD,BATTERY(-) 26011-1560	$26.92
Available: Ships in 7-12 days. Add to View Price
#26012B YUA BAT YB16CL-B 26012-1273 Superseded by K26012-3704	$119.95
Available: Ships in 7-12 days. Add to View Price
#26012C YB14A-A2,12V 14AH 26012-1388 Superseded by 26012-1146	$76.95
Available: Ships in 7-12 days. Add to View Price
#26030 HARNESS,MAIN 26030-1977	$61.88
Available: Ships in 7-12 days. Add to View Price
#27002 RELAY-ASSY 27002-1095	$51.93
Available: Ships in 7-12 days. Add to View Price
#92009 SCREW,TAPPING,4X8 92009-1155	$2.78
Available: Ships in 7-12 days. Add to View Price
#92015 NUT,6MM 92015-1671	$6.82
Available: Ships in 7-12 days. Add to View Price
#92037 CLAMP,L=60 92037-1069 Superseded by 92171-0652	$2.44
Available: Ships in 7-12 days. Add to View Price
#92072 BAND,L=123 92072-030	$4.66
Available: Ships in 7-12 days. Add to View Price
#92072A BAND,L=149 92072-031	$4.66
Available: Ships in 7-12 days. Add to View Price
#92072B BAND,L=188 92072-1239	$1.63
Available: Ships in 7-12 days. Add to View Price
