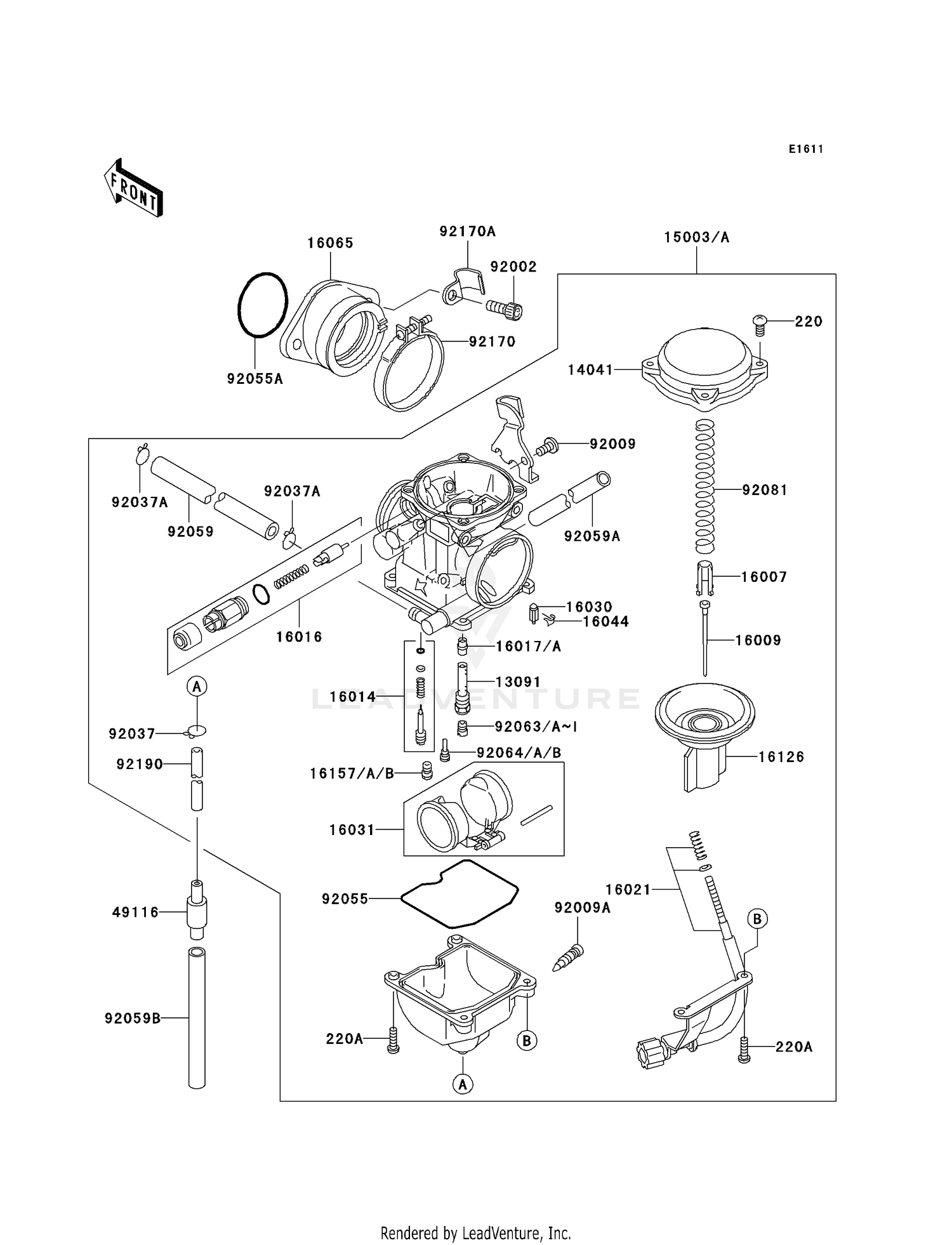

2003 Kawasaki BAYOU 300 4X4 CARBURETOR OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13091
HOLDER,NEEDLE JET
13091-1259
|
$28.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14041
TOP-CHAMBER
14041-1077
Superseded by 14041-1076
|
$85.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15003
CARBURETOR-ASSY
15003-1742
|
$605.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15003A
CARBURETOR-ASSY
15003-1743
|
$577.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16007
SEAT-SPRING
16007-1120
|
$23.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16009
NEEDLE-JET
16009-1927
|
$33.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1081
|
$21.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16016
PLUNGER
16016-1101
|
$54.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16017
JET-NEEDLE
16017-1270
|
$43.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16017A
JET-NEEDLE
16017-1286
|
$45.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1175
|
$104.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1007
|
$44.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16031
FLOAT
16031-1077
|
$50.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16044
CLAMP,FLOAT VALVE
16044-007
|
$7.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1301
|
$35.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16126
VALVE,VACUUM
16126-1199
|
$176.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16157
JET-STARTER
16157-1063
|
$22.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16157A
JET-STARTER
16157-1064
|
$22.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16157B
JET-STARTER
16157-1065
|
$22.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49116
VALVE-ASSY
49116-1126
|
$19.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92002
BOLT,6X16
92002-1143
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009
SCREW,5X10
92009-1365
|
$6.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009A
SCREW,DRAIN,M6X0.75
92009-1551
|
$9.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92037
CLAMP
92037-1201
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-1531
|
$5.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92055
RING-O,FLOAT CHAMBER
92055-1222
|
$16.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92055A
RING-O,38X1.9
92055-1295
|
$15.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92059
TUBE,6.5X11.5X150
92059-1463
|
$31.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92059A
TUBE,6.5X9.5X430
92059-1727
|
$27.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92059B
TUBE,7X10X100
92059-1736
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92063
JET-MAIN,#140
92063-1013
|
$13.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92063A
JET-MAIN,#135
92063-1014
|
$13.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS
220D0414
Superseded by 220AA0414
|
$4.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92063B
JET-MAIN,#138
92063-1015
|
$13.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92063C
MAIN JET,#142
92063-1016
|
$13.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92063D
JET-MAIN,2ND,#125
92063-1069
|
$13.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92063E
JET-MAIN,#120
92063-1072
|
$13.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92063F
JET-MAIN,2ND,#122
92063-1073
|
$13.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92063G
JET-MAIN,2ND,#128
92063-1074
|
$13.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92063H
JET-MAIN,#130
92063-1075
|
$13.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92063I
JET-MAIN,#132
92063-1076
|
$13.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92064
JET-PILOT,#35
92064-1101
|
$15.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92064A
JET-PILOT,#38
92064-1119
|
$17.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92064B
JET-PILOT
92064-1125
|
$17.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92081
SPRING,VACUUM VALVE
92081-1775
Superseded by 92081-1912
|
$24.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92170
CLAMP
92170-1438
|
$7.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92170A
CLAMP
92170-1552
|
$4.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92190
TUBE,4.5X8X330
92190-1557
|
$14.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
