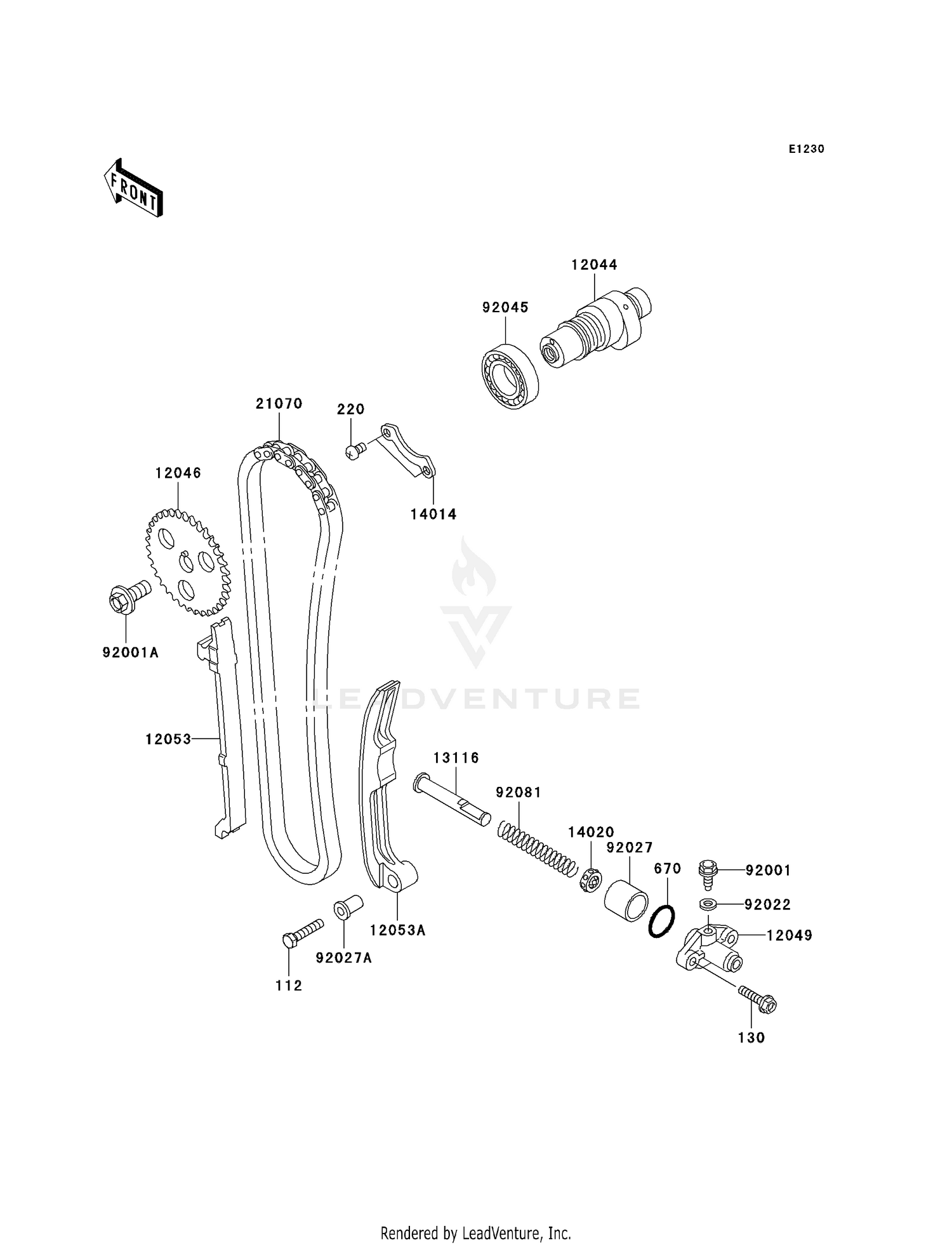

2003 Kawasaki BAYOU 300 4X4 CAMSHAFT(S)/TENSIONER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#112
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#130
BOLT-FLANGED
130Y0625
Superseded by 130BD0625
|
$4.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X10
220B0610
Superseded by 220AA0610
|
$3.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#670
O RING,21MM
670B2021
|
$4.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12044
CAMSHAFT-VALVE
12044-1339
|
$268.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12046
SPROCKET,CAM CHAIN,32
12046-1037
|
$52.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12049
TENSIONER,CAM CHAIN
12049-1055
|
$43.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12053
SLIPER,CAM CHAIN
12053-023
|
$32.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12053A
SLIPER,CAM CHAIN
12053-024
|
$43.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13116
ROD,PUSH,CAM CHAIN
13116-1019
|
$14.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14014
PLATE-POSITION
14014-1030
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14020
RETAINER,TENSIONER
14020-1054
|
$20.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21070
CHAIN,CAM
21070-013
|
$137.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92001
BOLT,TENSIONER ADJUST
92001-1155
|
$4.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92001A
BOLT,10X23
92001-1859
|
$9.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92022
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92027
COLLAR,TENSIONER
92027-1273
|
$29.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92027A
COLLAR
92027-155
|
$7.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92045
BEARING-BALL,#6005C4
92045-1056
|
$23.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92081
SPRING,TENSIONER
92081-1105
|
$4.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
