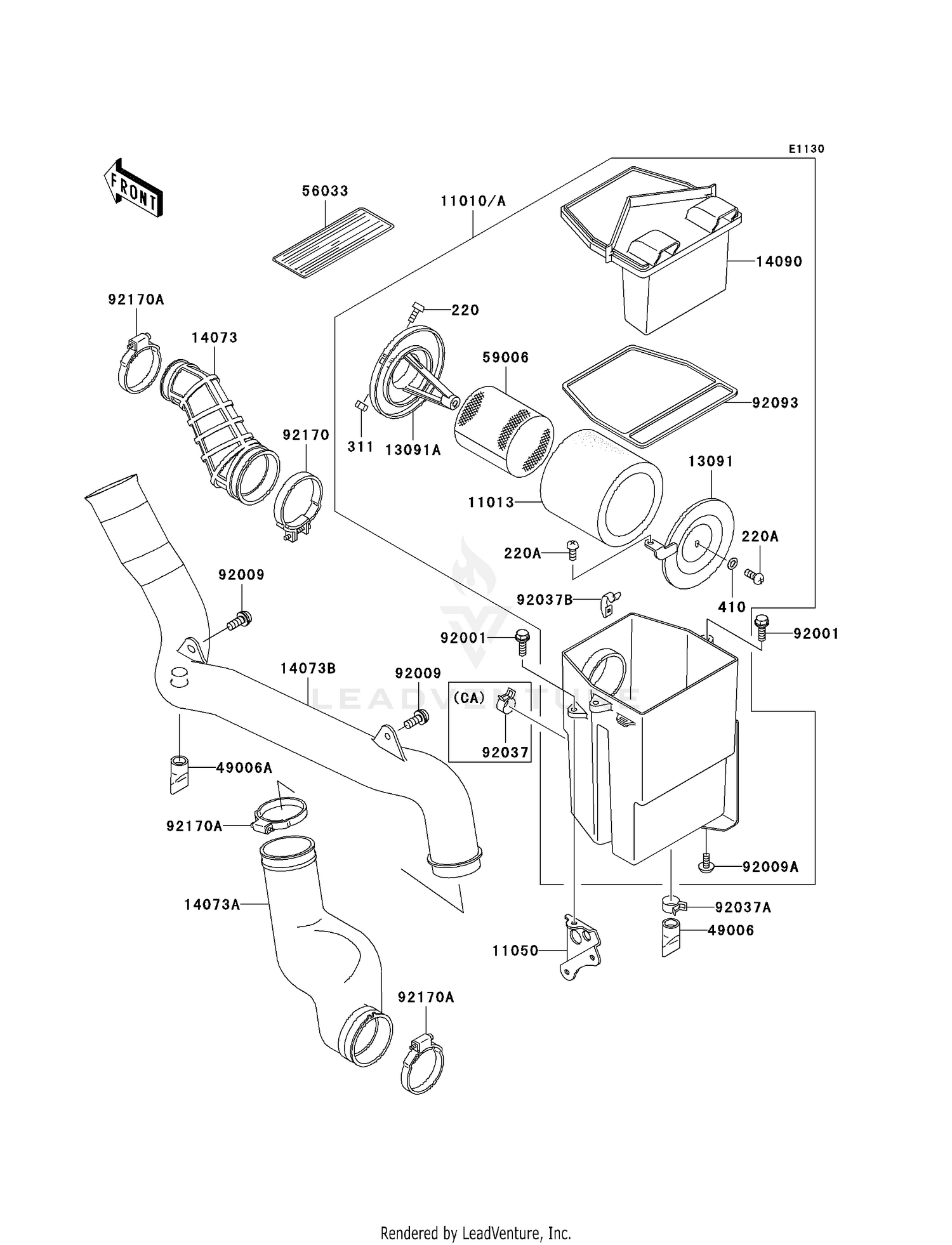

2003 Kawasaki BAYOU 300 4X4 AIR CLEANER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#220
SCREW-PAN-CROS,5X16
220B0516
Superseded by 220AA0516
|
$1.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#311
NUT-HEX,5MM
311B0500
Superseded by 311AA0500
|
$0.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11010
FILTER-ASSY-AIR
11010-1650
|
$231.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11010A
FILTER-ASSY-AIR
11010-1651
|
$242.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11013
ELEMENT-AIR FILTER
11013-1275
|
$11.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11050
BRACKET
11050-1979
|
$13.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13091
HOLDER,ELEMENT
13091-1488
|
$18.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13091A
HOLDER,AIR FILTER ELE
13091-1565
|
$16.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14073
DUCT,AIR
14073-1359
|
$33.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14073A
DUCT,AIR FILTER
14073-1676
|
$101.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14073B
DUCT,SNORKEL
14073-1677
|
$180.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14090
COVER,AIR FILTER
14090-1775
|
$40.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49006
BOOT
49006-1199
|
$8.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49006A
BOOT
49006-1292
|
$7.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#56033
LABEL-MANUAL,MAINTENA
56033-1079
|
$2.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#59006
ARRESTER-FLAME
59006-1052
|
$35.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92001
BOLT,WP,6X20
92001-1460
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009
SCREW,6X16
92009-1276
|
$4.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92009A
SCREW,TAPPING,5X10
92009-1332
|
$3.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92037
CLAMP,HOSE CLIP
92037-1181
|
$3.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92037A
CLAMP,HOSE CLIP
92037-1460
|
$6.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92037B
CLAMP,AIR FILTER
92037-1783
|
$8.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92093
SEAL,AIR FILTER
92093-1241
|
$12.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92170
CLAMP
92170-1149
|
$10.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#92170A
CLAMP
92170-1674
|
$10.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
