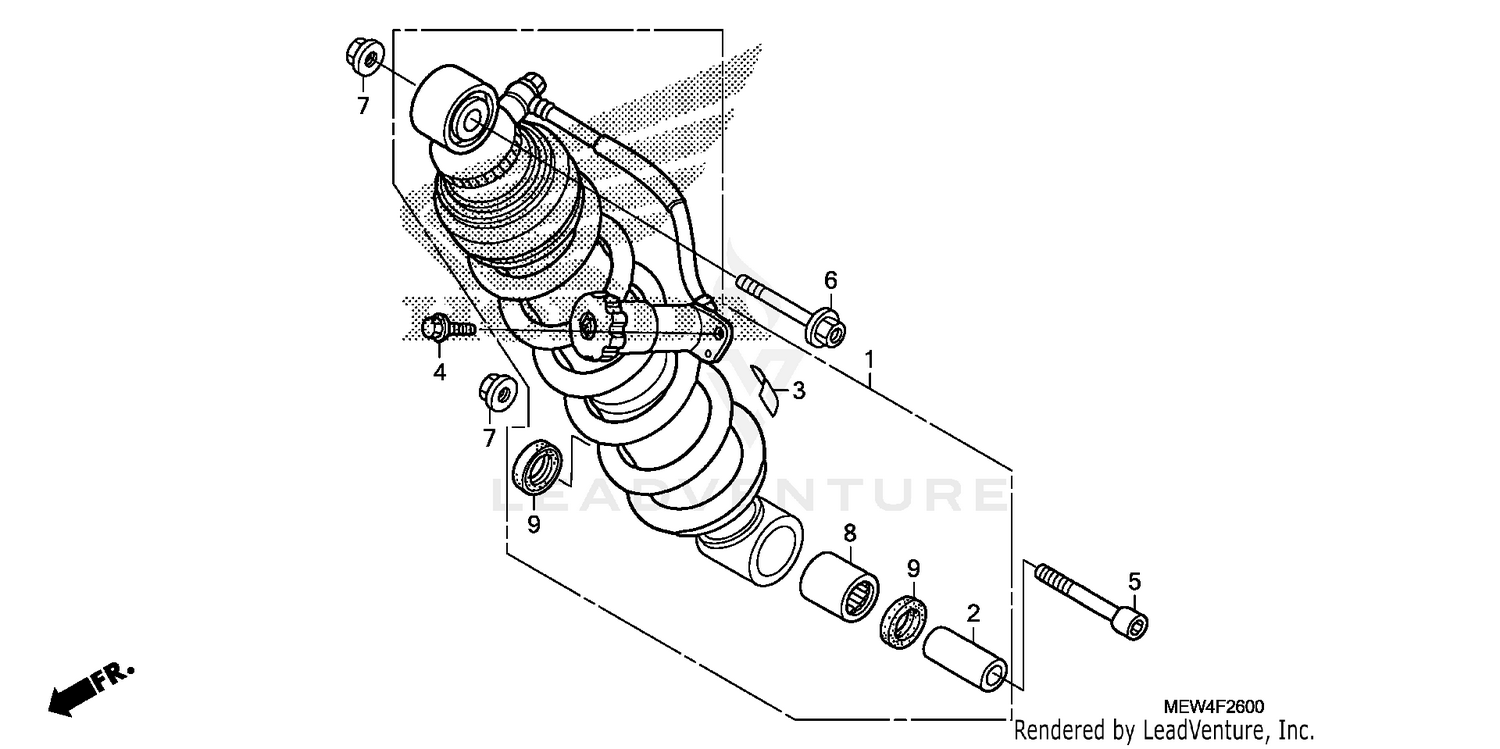

2010 Honda NT700V ABS REAR SHOCK ABSORBER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION ASSY., RR. (COO)
52400-MEW-305
|
$1,041.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
COLLAR, CUSHION CONNECTING ROD
52463-MAL-G00
|
$11.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
LABEL, RR. DAMPER
87516-MBL-610
|
$3.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT, FLANGE (8X16)
90106-KK7-700
|
$3.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT, SOCKET (10X57)
90107-MBL-610
|
$4.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT, FLANGE (10X52)
90154-HA8-000
|
$7.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
NUT, U (10MM) (FUSE RASHI)
90304-GE8-003
|
$3.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BEARING, NEEDLE (KOYO)
91071-KV3-005
|
$23.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
DUST SEAL (17X24X5) (ARAI)
91262-KV3-831
|
$6.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
