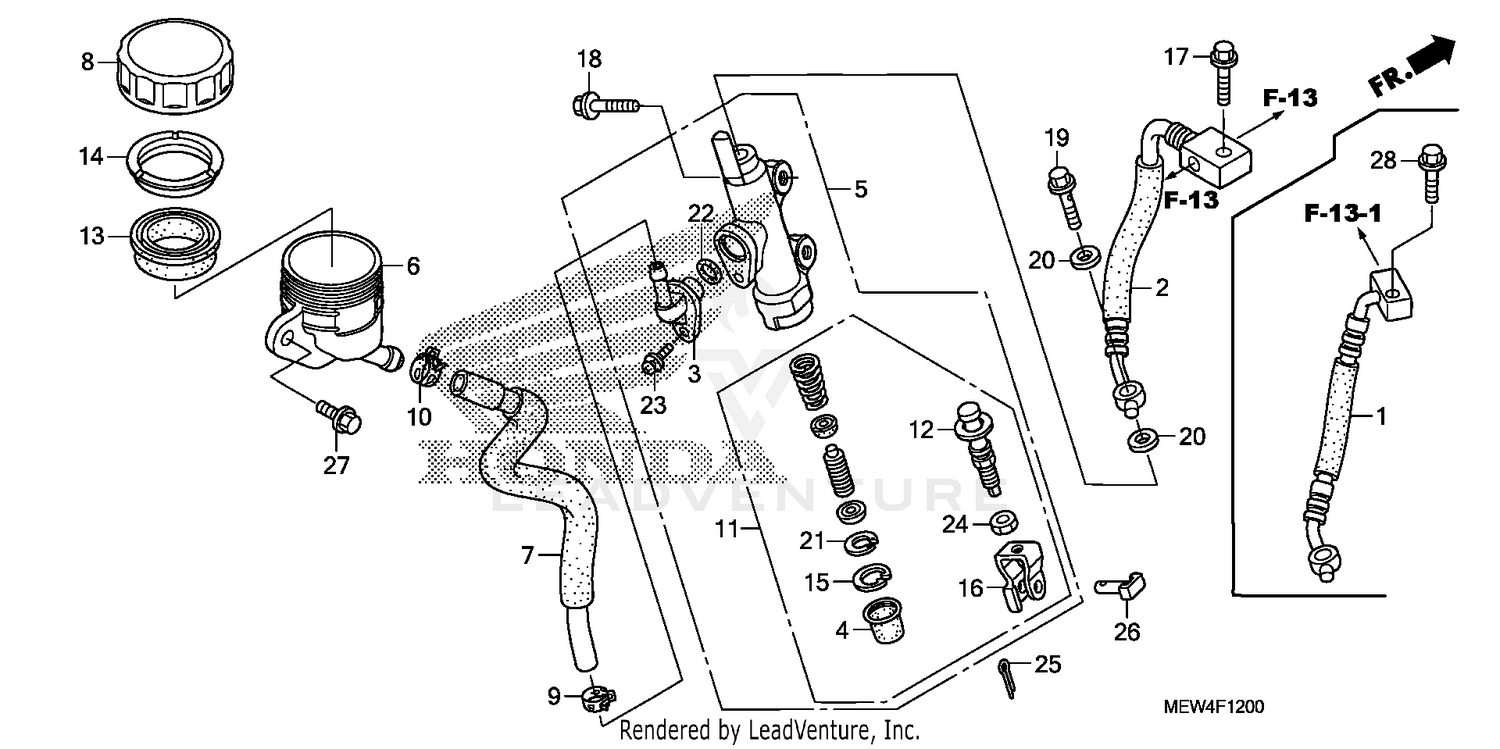

2010 Honda NT700V ABS REAR BRAKE MASTER CYLINDER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE A, RR. BRAKE
43310-MEW-851
|
$31.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CONNECTOR, MASTER CYLINDER
43503-MER-D01
|
$7.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOOT
43504-MB2-006
|
$9.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
MASTER CYLINDER SUB-ASSY., RR.
43510-MEW-923
|
$165.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CUP, MASTER CYLINDER OIL
43511-MA6-006
|
$38.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
HOSE, RR. BRAKE MASTER CYLINDER
43512-MEW-921
|
$13.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CAP, OIL CUP
43513-MY1-006
|
$28.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$12.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
CLAMP, MASTER CYLINDER OIL HOSE
43514-MN9-006
|
$13.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
PISTON SET, RR. MASTER CYLINDER
43520-MBL-D02
|
$51.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
ROD, PUSH
43530-MBL-D01
|
$21.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
DIAPHRAGM
45520-300-000
|
$8.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
PLATE, DIAPHRAGM
45521-MJ6-006
|
$4.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
CIRCLIP
46182-MEL-D21
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
JOINT, BRAKE ROD
46504-KV6-702
|
$7.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X25)
90131-124-000
|
$0.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BOLT, OIL (10X22)
90145-MS9-612
|
$6.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
WASHER, OIL BOLT
90545-300-000
|
$4.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
CIRCLIP, PISTON
90651-MBG-006
|
$2.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
O-RING (14.8X2.4)
91212-422-006
|
$2.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SCREW-WASHER (4X12)
93893-04012-07
|
$1.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.17 | ||
|
Unavailable |
|||
|
#24
NUT, HEX. (8MM)
94002-08000-0S
|
$1.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
PIN, SPLIT (2.0X15)
94201-20150
|
$0.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
PIN D, JOINT
95015-54000
|
$4.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X12)
95701-06012-00
|
$1.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X20)
95701-06020-07
|
$1.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
