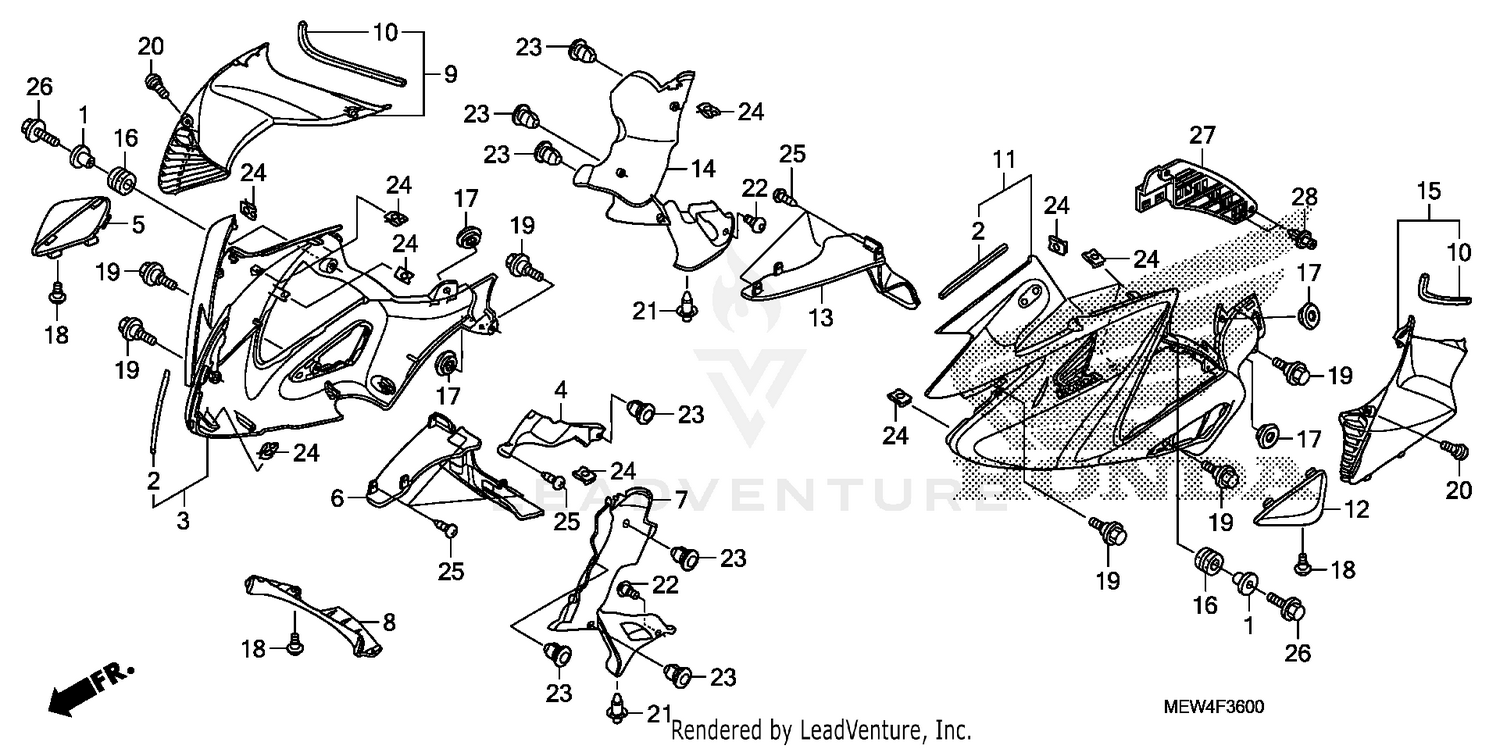

2010 Honda NT700V ABS MIDDLE COWL OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, RADIATOR MOUNTING
19052-KV0-000
|
$5.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
MAT, FR. TURN SIGNAL
64213-MEW-920
|
$1.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
COWL SET, R. MIDDLE (TYPE1) (WL)
64230-MEW-D20ZA
Superseded by 64230-MEW-D60ZC
|
$442.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
COWL SET, R. MIDDLE (TYPE1) (WL)
64230-MEW-D60ZC
|
$442.45 | ||
|
Unavailable |
|||
|
#4
COVER, R. MIDDLE COWL (LOWER)
64235-MEW-920
|
$8.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
COVER, R. ENGINE GUARD
64260-MEW-920
|
$7.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GUIDE, R. MIDDLE COWL AIR
64266-MEW-920
|
$25.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
COWL, R. (LOWER) (INNER)
64270-MEW-920
|
$22.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
COVER, RADIATOR (LOWER)
64280-MEW-920
|
$16.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
LID, R. MIDDLE COWL
64291-MEW-921
|
$222.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SEAL, LID MIDDLE
64295-MEW-920
|
$1.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
COWL SET, L. MIDDLE (TYPE3) (WL)
64330-MEW-D40ZD
Superseded by 64330-MEW-D60ZC
|
$664.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
COWL SET, L. MIDDLE (TYPE3) (WL)
64330-MEW-D60ZC
|
$664.31 | ||
|
Unavailable |
|||
|
#12
COVER, L. ENGINE GUARD
64360-MEW-920
|
$7.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
GUIDE, L. MIDDLE COWL AIR
64366-MEW-920
|
$23.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
COWL, L. (LOWER) (INNER)
64370-MEW-920
|
$22.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
LID, L. MIDDLE COWL
64391-MEW-921
|
$222.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
RUBBER, SIDE COVER
83545-KCJ-690
|
$1.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
GROMMET, SIDE COVER
83601-MN5-000
|
$2.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SCREW, SPECIAL (5X12)
90106-MBY-000
|
$2.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BOLT, FLANGE (6MM)
90111-ML0-730
|
$3.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SCREW, VISOR SPECIAL SETTING
90115-KW7-900
|
$2.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
CLIP, BUMPER SEAL
90116-SP0-003
|
$5.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SCREW, PAN (6X11)
90119-MEW-920
|
$1.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
CLIP, SPLASH SHIELD
90657-SB0-003
|
$5.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
NUT, CLIP (5MM)
90677-KAN-961
|
$4.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
SCREW, TAPPING (4X12)
93903-24380
|
$0.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
STAY, CONNECTOR
64335-MEW-D40
|
$17.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
CLIP, SIDE GARNISH *NH80M* (BLACK BURN METALLIC)
90687-SB0-003
Superseded by 90687-SB2-901ZF
|
$4.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
CLIP, SIDE GARNISH *NH80M* (BLACK BURN METALLIC)
90687-SB0-013
Superseded by 90687-SB2-901ZF
|
$4.23 | ||
|
Unavailable |
|||
|
#28
CLIP, SIDE GARNISH *NH80M* (BLACK BURN METALLIC)
90687-SB2-901ZF
|
$4.23 | ||
|
Unavailable |
|||
