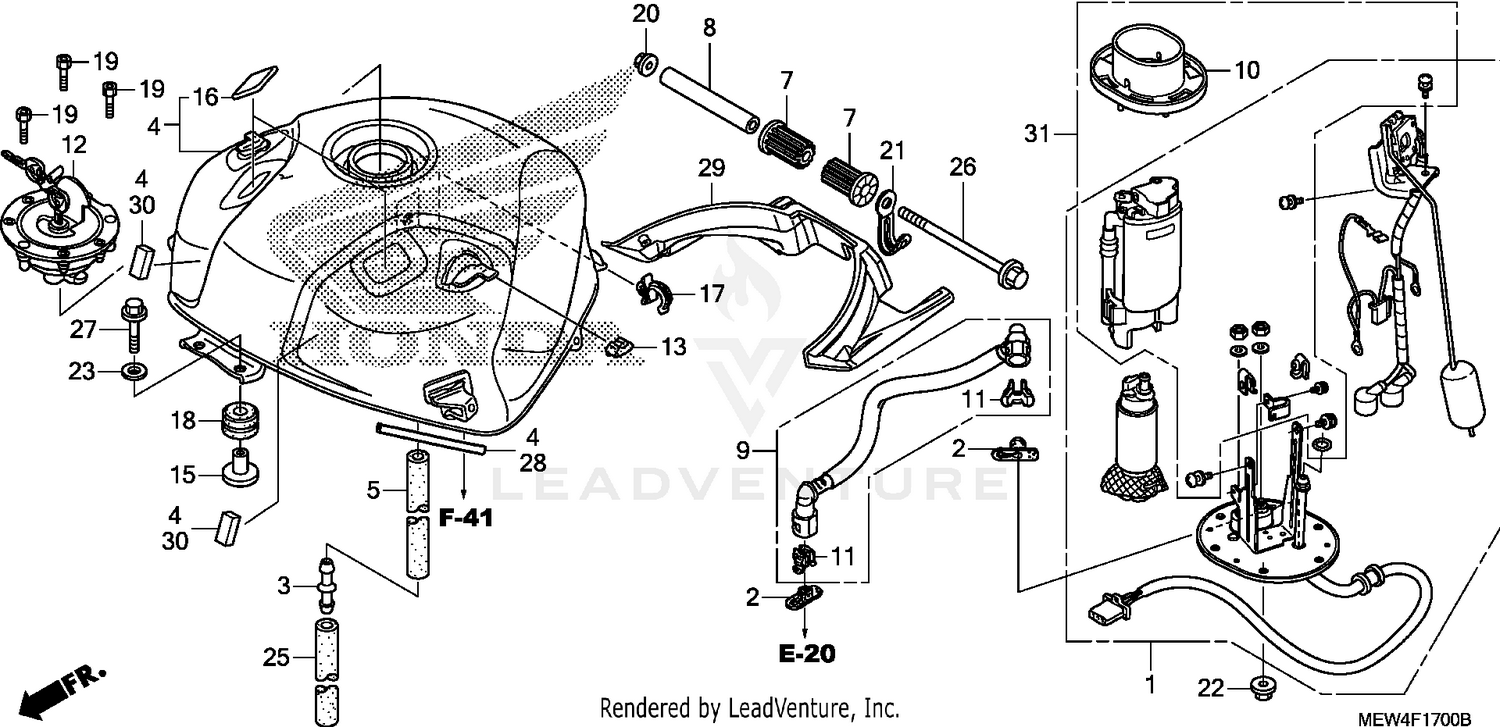

2010 Honda NT700V ABS FUEL TANK OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., FUEL (MSDS)
16700-MEW-D41
|
$521.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
DAMPER, CONNECTOR
16719-MEW-920
|
$2.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
JOINT, BREATHER TUBE
17359-419-670
|
$1.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
TANK SET, FUEL *NHA49M* (SPANGLE SILVER METALLIC)
17500-MEW-D40ZA
|
$1,535.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
TUBE, DRAIN
17543-MEW-920
|
$8.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
CUSHION, RR. FUEL TANK PIVOT
17548-MEW-920
|
$5.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
COLLAR, TANK SETTING
17549-MEW-920
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
HOSE, FUEL FEED
17570-MEW-L01
|
$90.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
GASKET, BASE
17574-MEE-000
|
$12.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
RETAINER (BLUE GREEN) (TOKAI)
17711-S0X-931
|
$3.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
CAP, FUEL FILLER
17620-MAS-E02
Superseded by 17620-MAS-E04
|
$183.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
CAP, FUEL FILLER
17620-MAS-E03
Superseded by 17620-MAS-E04
|
$183.44 | ||
|
Unavailable |
|||
|
#13
RUBBER, PROTECTOR
18293-MN0-000
|
$1.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
COLLAR, SETTING
61104-422-000
|
$6.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
FASTENER B, DUAL LOCK (20X20)
64243-MEW-920
|
$2.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
HOLDER, ROD (A)
80106-GCF-670
|
$0.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
RUBBER, TAILLIGHT MOUNTING
84703-KC1-000
|
$4.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BOLT, SOCKET (4X21)
90074-MT4-000
|
$3.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
NUT, U (6MM) (FUSE RASHI)
90301-473-003
|
$4.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
CLIP (2X60)
91410-679-000
|
$10.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
NUT, FLANGE (6MM)
94050-06080
|
$0.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
WASHER, PLAIN (6MM)
94103-06700
|
$0.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
BULK HOSE, VACUUM (8X1000) (8X460)
95005-80001-20M
|
$22.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X120)
95701-06120-08
|
$3.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X35)
96001-06035-07
|
$1.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
TRIM, FUEL TANK
17516-MG8-000
|
$4.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
RUBBER, FUEL TANK
19140-MEW-D20
|
$17.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
RUBBER, FUEL TANK
17501-MEW-D40
|
$0.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
FILTER ASSY., FUEL
16011-MEW-D40
|
$272.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
