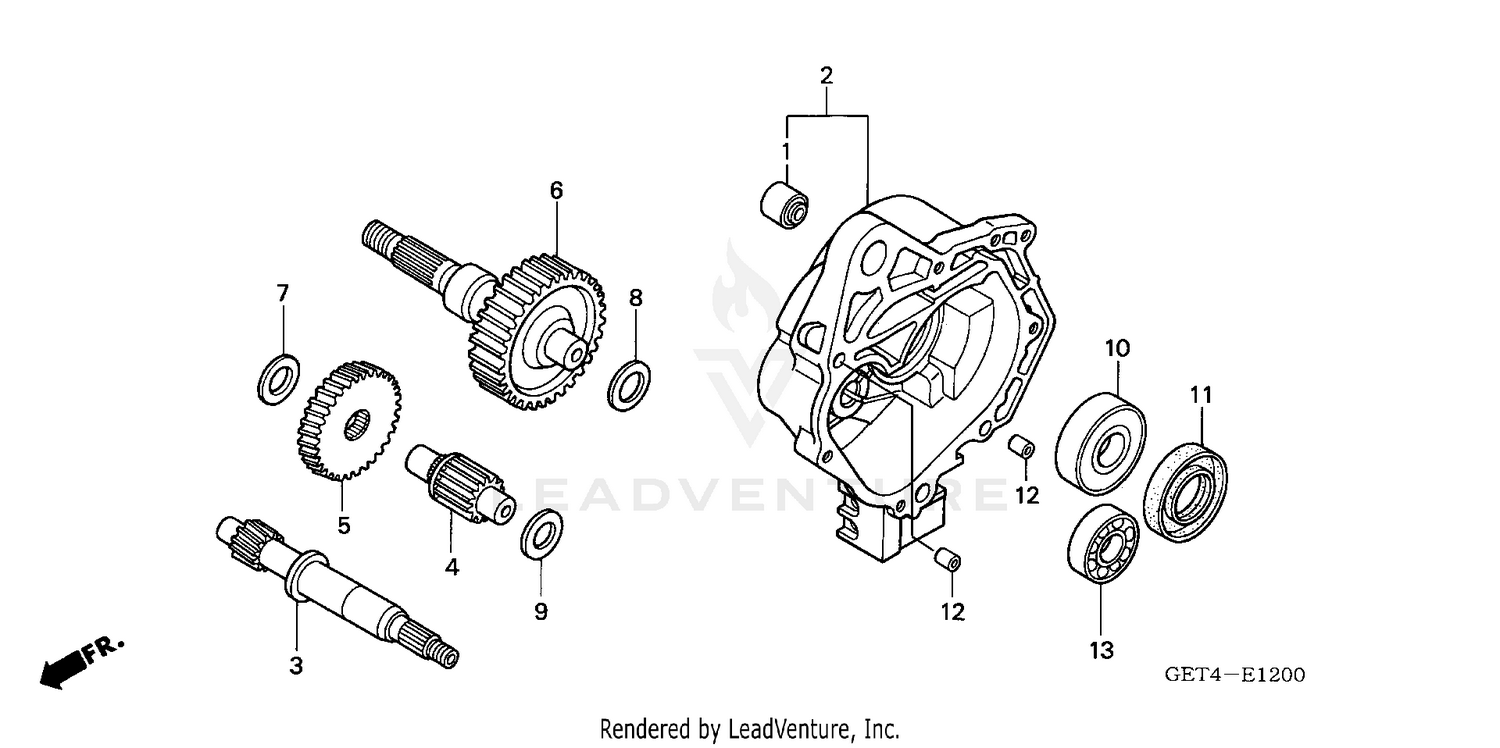

2005 Honda METROPOLITAN II TRANSMISSION OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BUSH, RR. CUSHION RUBBER (LOWER)
11203-GC7-300
|
$10.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
CASE, TRANSMISSION
21200-GET-000
|
$125.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SHAFT, DRIVE (12T)
23411-GEE-710
|
$41.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
COUNTERSHAFT (12T)
23421-GEZ-000
|
$33.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
GEAR, COUNTER (42T)
23422-GEZ-000
|
$30.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GEAR, FINAL (47T)
23430-GEZ-000
|
$95.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
WASHER, SIDE (14MM)
90429-GET-000
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
WASHER, THRUST (17MM)
90454-KF0-000
|
$4.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
WASHER, THRUST (14MM)
90454-350-000
|
$3.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BEARING, RADIAL BALL (6203) (NTN CORP.)
42630-GK4-003
|
$16.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BEARING, RADIAL BALL (6203) (NTN CORP.)
91028-GS7-900
Superseded by 42630-GK4-003
|
$16.02 | ||
|
Unavailable |
|||
|
#10
BEARING, RADIAL BALL (6203) (NTN CORP.)
91053-MV1-003
Superseded by 42630-GK4-003
|
$16.02 | ||
|
Unavailable |
|||
|
#11
OIL SEAL (24X40X7)
91254-GE8-005
|
$8.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PIN, DOWEL (8X14)
94301-08140
|
$1.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (6201)
96100-62013-00
|
$9.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
