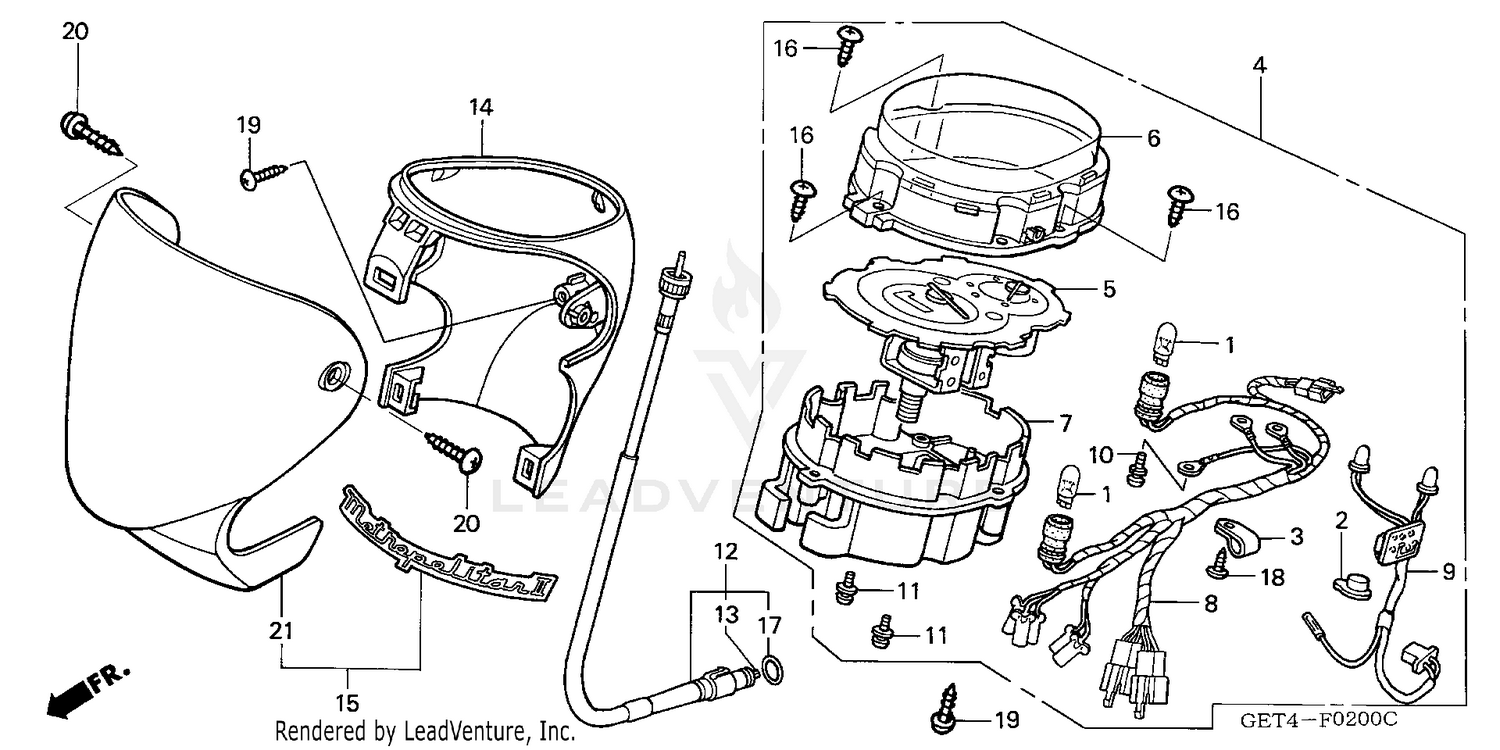

2005 Honda METROPOLITAN II SPEEDOMETER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BULB, WEDGE BASE (12V 1.7W) (NIPPON SEIKI)
34909-GET-003
|
$1.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
BULB, WEDGE BASE (12V 1.7W H.D) (NIPPON SEIKI)
34909-MCB-611
Superseded by 34909-KW3-003
|
$3.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
CAP
37113-ML7-008
|
$2.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CLAMP
37121-ML7-671
|
$2.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
METER ASSY., COMBINATION
37200-GET-671
|
$193.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SPEEDOMETER
37210-GET-671
|
$159.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
LENS
37211-GET-003
|
$18.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
CASE
37212-GET-671
|
$39.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SOCKET
37224-GET-671
|
$22.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
INDICATOR, LED
37230-GET-671
|
$22.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SCREW-WASHER (3X22)
37305-KE5-008
|
$2.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SCREW-WASHER (4X12)
37305-MAW-621
|
$1.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
CABLE ASSY., SPEEDOMETER
44830-GEV-711
|
$16.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CABLE (INNER)
44831-GEV-711
|
$7.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
COVER B, SPEEDOMETER *NH388R* (CLASSICAL WHITE-R)
53206-GET-000ZA
|
$33.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
COVER SET A, SPEEDOMETER *R165R* (WL) (JOLLY RED)
53250-GET-770ZB
|
$20.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
COVER SET A, SPEEDOMETER *PB317R* (WL) (DENIM BLUE)
53250-GET-770ZC
|
$20.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
COVER SET A, SPEEDOMETER *Y106* (WL) (CLIPPER YELLOW)
53250-GET-770ZE
|
$18.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
COVER SET A, SPEEDOMETER *G185R* (WL) (LIME GREEN)
53250-GET-770ZF
|
$17.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SCREW, TAPPING (3X14)
90101-KY6-008
|
$2.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
O-RING (8.5X1.5)
91312-PH7-000
|
$1.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
O-RING (8.5X1.5) (NOK) (NOT AVAILABLE)
91352-671-003
Superseded by 91352-671-004
|
$1.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
O-RING (8.5X1.5) (NOK) (NOT AVAILABLE)
91352-671-004
|
$1.95 | ||
|
Unavailable |
|||
|
#18
SCREW, TAPPING (4X12)
93903-24320
|
$0.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SCREW, TAPPING (5X12)
93903-25220
|
$0.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SCREW, TAPPING (5X10)
93903-35110
|
$0.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
COVER A, SPEEDOMETER *R165R* (JOLLY RED)
53205-GET-000ZD
|
$15.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
COVER A, SPEEDOMETER *G185R* (LIME GREEN)
53205-GET-000ZH
|
$14.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
