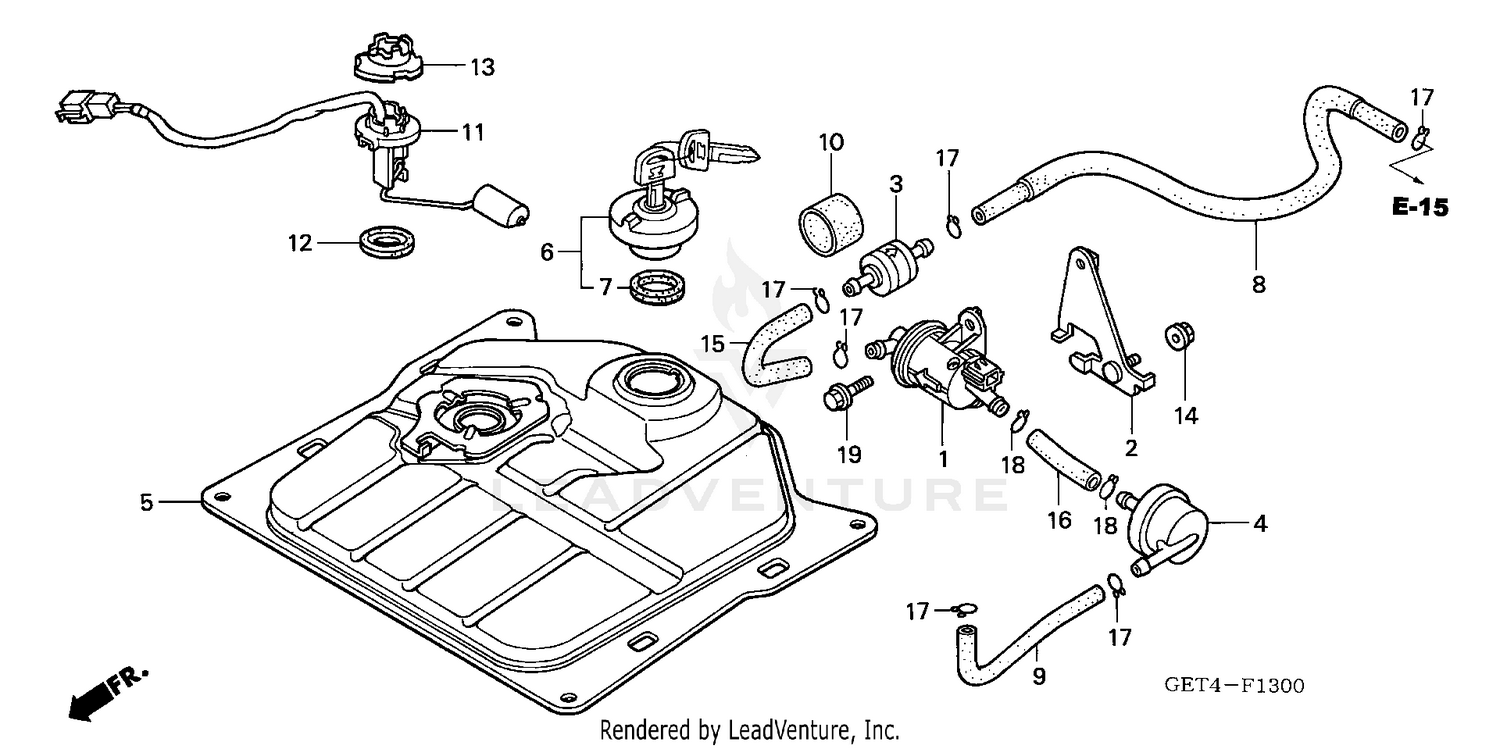

2005 Honda METROPOLITAN II FUEL TANK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., FUEL (MSDS)
16710-GET-013
|
$91.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
STAY, FUEL PUMP
16715-GET-000
|
$6.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
VALVE, CHECK
16800-GET-831
|
$18.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
FILTER, FUEL
16900-GET-003
|
$16.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
TANK, FUEL
17500-GET-000
Superseded by 17500-GET-010
|
$166.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
TANK, FUEL
17500-GET-010
|
$166.38 | ||
|
Unavailable |
|||
|
#6
CAP COMP.,FUEL FILL
17620-GEZ-711
Superseded by 17620-GEZ-712
|
$63.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
GASKET, FUEL FILLER CAP
17632-383-831
Superseded by 17632-383-832
|
$7.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
TUBE, FUEL (4.5X425)
17682-GET-000
|
$8.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
TUBE A, FUEL
17683-GET-000
Superseded by 17683-GET-010
|
$4.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
TUBE A, FUEL
17683-GET-010
|
$4.02 | ||
|
Unavailable |
|||
|
#10
BULK HOSE, VACUUM (17X1000) (17X23X15)
95005-17001-50M
|
$19.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
FUEL UNIT
37800-GET-003
|
$57.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
GASKET, BASE
37801-GA7-700
|
$5.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
RETAINER, FUEL UNIT
37802-GA7-700
|
$5.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
NUT, FLANGE (6MM)
94050-06080
|
$0.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BULK HOSE, FUEL (4.5X3000) (4.5X45)
95001-45003-60M
|
$34.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BULK HOSE, FUEL (5.5X3000) (5.3X40)
95001-55003-60M
|
$45.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CLIP, TUBE (B8)
95002-02080
|
$1.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CLIP, TUBE (B10)
95002-02100
|
$1.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
