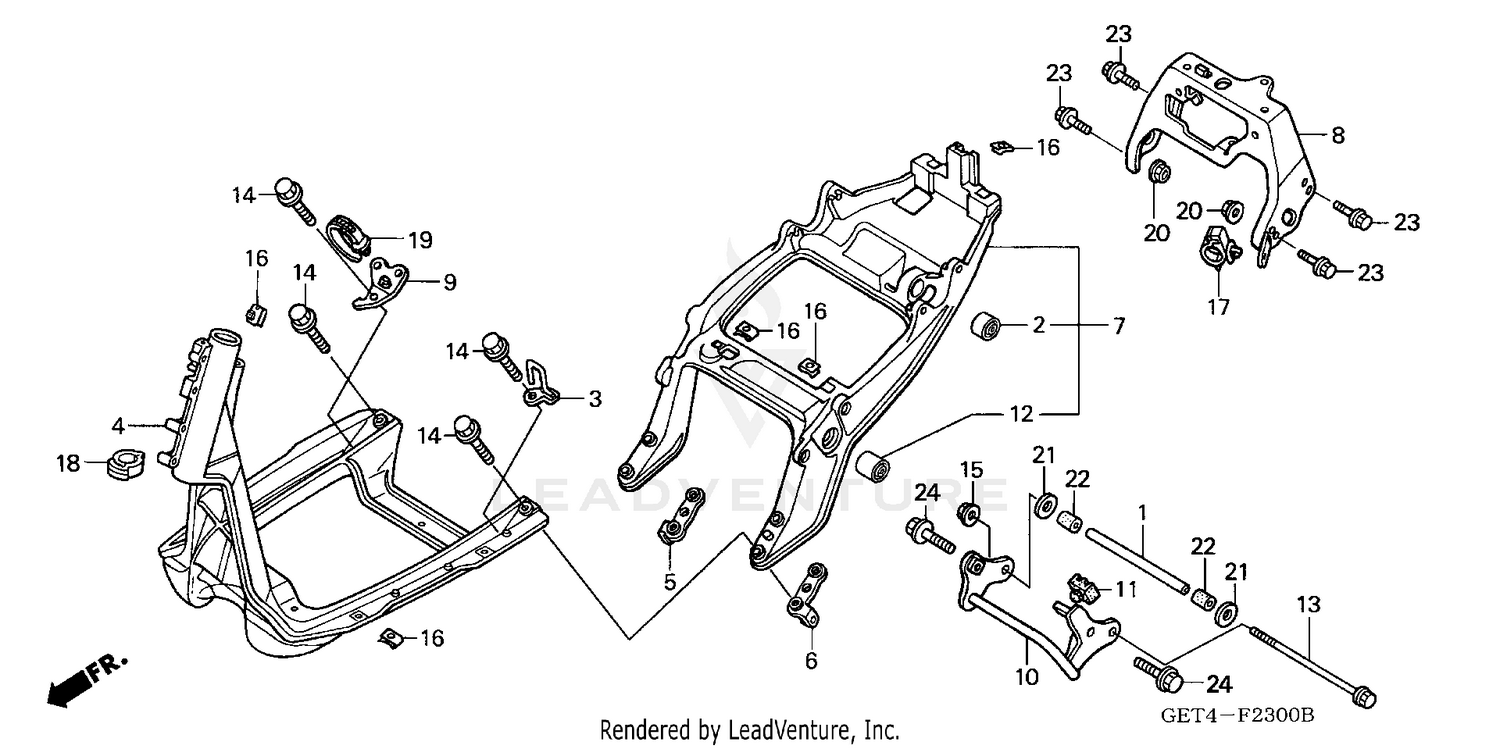

2005 Honda METROPOLITAN II FRAME OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, ENGINE MOUNT (UPPER)
11105-GET-000
|
$11.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BUSH, RR. CUSHION RUBBER (LOWER)
11203-GC7-300
|
$10.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
GUIDE, RR. BRAKE CABLE
43461-GET-000
|
$5.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
FRAME, FR.
50110-GEE-040
Superseded by 50110-GEE-050
|
$295.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
FRAME, FR.
50110-GEE-050
|
$295.35 | ||
|
Unavailable |
|||
|
#5
PLATE, R. FRAME JOINT
50111-GET-000
|
$10.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
PLATE, L. FRAME JOINT
50112-GET-000
|
$11.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
FRAME ASSY., RR.
50120-GET-010
Superseded by 50120-GET-020
|
$242.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
FRAME ASSY., RR.
50120-GET-020
|
$242.69 | ||
|
Unavailable |
|||
|
#8
PLATE, RR. CROSS
50126-GET-000
|
$41.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
STAY, WIRE HARNESS CLAMP
50150-GET-000
|
$6.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
LINK, ENGINE HANGER
50351-GET-000
Superseded by 50351-GET-010
|
$58.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
LINK, ENGINE HANGER
50351-GET-010
|
$58.33 | ||
|
Unavailable |
|||
|
#11
RUBBER, LINK STOPPER
50352-GW0-730
|
$6.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BUSH, ENGINE HANGER RUBBER
50356-KBN-900
|
$7.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT, FLANGE (10X230)
90101-GET-000
|
$6.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
BOLT, FLANGE (10X55)
90102-GET-000
|
$1.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
NUT, U (10MM) (FUSE RASHI)
90304-GE8-003
|
$3.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
NUT, CLIP (6MM)
90305-GEE-710
|
$1.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CLAMP, HARNESS
90652-HC4-003
|
$6.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CLIP, WIRE HARNESS
90683-KJ2-003
|
$3.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
CLIP, HARNESS BAND (151.5MM) (NATURAL)
91540-S30-003
|
$2.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
NUT, FLANGE (6MM)
94050-06000
|
$0.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
WASHER, PLAIN (10MM)
94101-10800
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
BULK HOSE, VINYL (16X19X3000) (16X19X20)
95003-50003-10M
|
$15.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X25)
95801-06025-00
|
$0.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
BOLT, FLANGE (10X50)
95801-10050-00
|
$6.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
