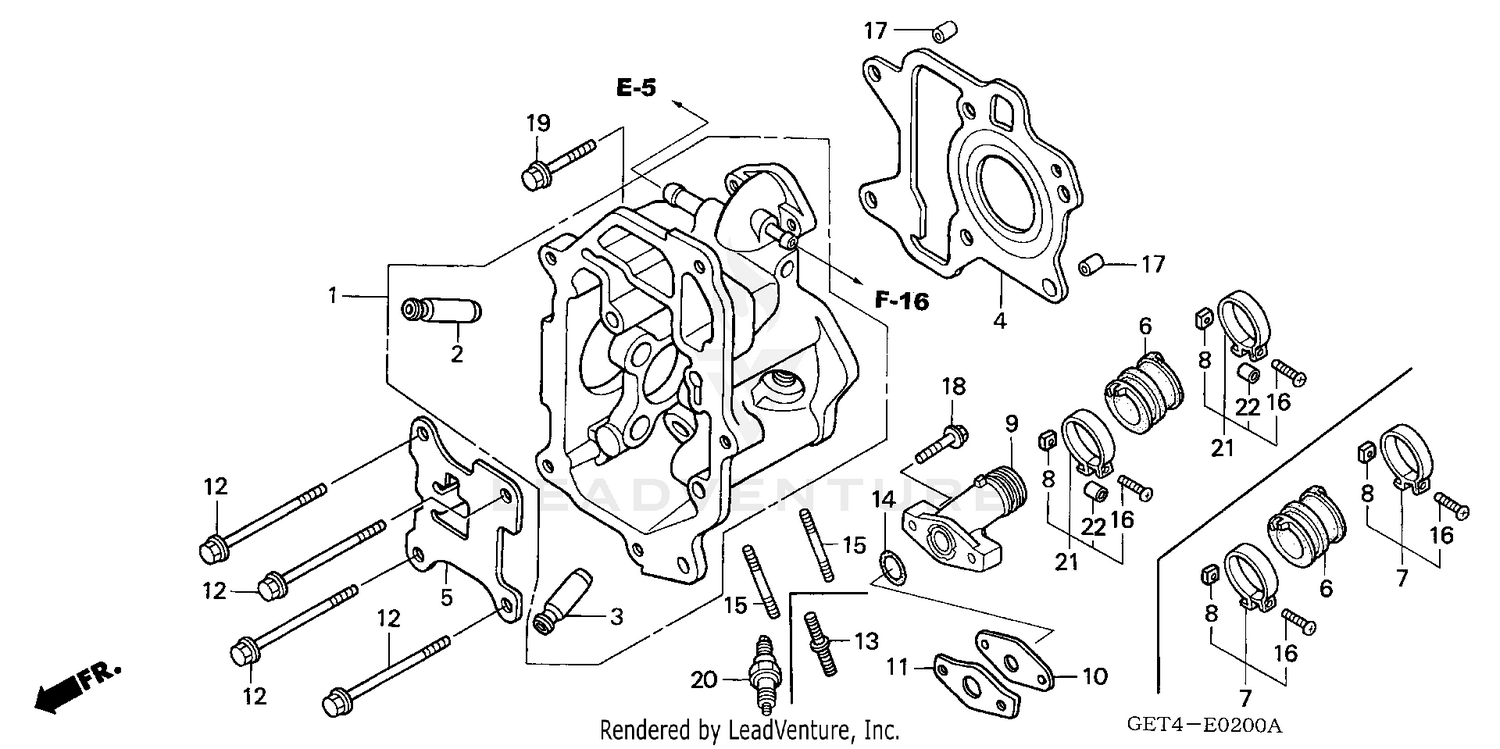

2005 Honda METROPOLITAN II CYLINDER HEAD OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 CYLINDER HEAD 12200-GET-000	$184.87
Available: Ships in 7-12 days. Add to View Price
#2 GUIDE, VALVE (OVER SIZE) 12204-GEE-305	$13.35
Available: Ships in 7-12 days. Add to View Price
#3 GUIDE, EX. VALVE (OVER SIZE) 12205-GEE-305	$13.35
Available: Ships in 7-12 days. Add to View Price
#4 GASKET, CYLINDER HEAD 12251-GET-003	$8.47
Available: Ships in 7-12 days. Add to View Price
#5 PLATE, CAMSHAFT STOPPER 12321-GET-000	$6.20
Available: Ships in 7-12 days. Add to View Price
#6 INSULATOR, CARBURETOR 16211-GEE-000	$27.91
Available: Ships in 7-12 days. Add to View Price
#8 NUT, SQUARE (5MM) 16222-MV4-300	$1.95
Available: Ships in 7-12 days. Add to View Price
#9 PIPE, INLET 17111-GET-010	$21.29
Available: Ships in 7-12 days. Add to View Price
#10 PLATE, IN. PIPE 17112-GET-770	$6.47
Available: Ships in 7-12 days. Add to View Price
#11 GASKET, IN. PIPE 17115-GET-770 Superseded by 17115-GET-771	$5.87
Available: Ships in 7-12 days. Add to View Price
#12 BOLT, FLANGE (6X119) 90001-GET-000	$2.45
Available: Ships in 7-12 days. Add to View Price
#13 BOLT, SPECIAL (6MM) 90012-GS7-980	$9.07
Available: Ships in 7-12 days. Add to View Price
#15 BOLT, STUD (6X16) 92900-06016-0E	$1.69
Available: Ships in 7-12 days. Add to View Price
#16 SCREW, PAN (5X25) 93500-05025-0H	$0.63
Available: Ships in 7-12 days. Add to View Price
#17 PIN, DOWEL (8X14) 94301-08140	$1.93
Available: Ships in 7-12 days. Add to View Price
#18 BOLT, FLANGE (6X25) 95701-06025-00	$1.53
Available: Ships in 7-12 days. Add to View Price
#19 BOLT, FLANGE (6X32) 95701-06032-00	$1.62
Available: Ships in 7-12 days. Add to View Price
#20 SPARK PLUG (CR8EH9) (NGK) 98059-58916	$9.86
Available: Ships in 7-12 days. Add to View Price
#21 BAND, INSULATOR 16217-GEE-010	$4.85
Available: Ships in 7-12 days. Add to View Price
#22 COLLAR 16223-GEE-300	$0.96
Available: Ships in 7-12 days. Add to View Price
