KTM Announces 2019 EXC And XC-W Lineup
has a
long tradition making high-end offroad competition motorcycles.
While the KTM 150 XC-W is equipped with a traditional carburetor,
the 250 and 300 cc XC-W TPI models are now both fitted with the
revolutionary TPI serial fuel injection and have set new standards
in the 2-stroke offroad segment. TPI stands for "transfer port
injection"; a global-first, groundbreaking technology for 2-stroke
racing engines that delivers a previously unattainable combination
of top performance and outstanding rideability. No more jetting
combined with a massive reduction of fuel consumption while the
lubrication is taken care by an electronically controlled oil pump
instead of using premix.
[caption id="attachment_68164" align="aligncenter"
width="300"]

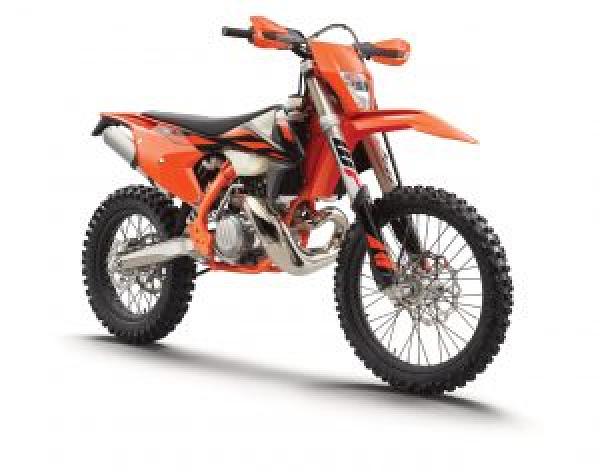

2019 KTM 250
XC-W-TPI[/caption]
On the 4-stroke side, KTM offers the well-known range from the
super easy to ride 250 EXC-F to the all-rounder 350 EXC-F to the
big thumper 500 EXC-F.
CHASSIS GENERAL
FRAME
The frames of all KTM off-road models are manufactured from
lightweight sections of top-quality chrome-molybdenum steel tubing
of various cross-sections. This type of frame design provides high
torsional rigidity for best handling and rideability, while a
certain longitudinal flexibility can absorb the wheel impact
energy, supporting the suspension for reduced rider fatigue. At the
same time, the frame triangle serves to deliver the coolant from
the cylinder head directly to the radiators. In the TPI models, the
frame design also serves to route engine oil from a filler cap
assembly, located between the fuel tank and the steering head, via
a hose inside the upper frame tube to the oil tank.
SWINGARM
This swing arm design allows for an optimal mounting position of
the PDS (progressive damping system) rear shock ensuring a high
progression rate. The single-component casting process eliminates
any inconsistencies and weak points that would be inherent in a
welded swing arm.
FORKS
All EXC models are fitted with the latest WP XPlor 48 upside-down
forks, a split fork design developed by WP Performance Systems and
KTM. It is fitted with springs on both sides but separate damping
functions. Compression damping is on the left and the rebound on
the right hand side without influencing each other. Therefore
damping can easily be adjusted via the dials on top of both fork
tubes with a range of 30 clicks each.
Already distinguished by outstanding response and damping
characteristics the fork features an updated slightly stiffer
setting for model year 2019 keeping the front end higher and
providing increased reserves against bottoming out.
NEW:
- Updated, slightly stiffer fork setting à improved feedback and
more bottoming resistance
SHOCK ABSORBER
Fitted to all EXC-F and XC-W models, the WP XPlor PDS shock
absorber is the key element of the proven and successful PDS rear
suspension design (Progressive Damping System) where the shock is
directly linked to the swing arm without an additional linkage
system. Optimal damping progression for offroad duty is achieved by
a second damping piston in combination with a closed cup towards
the end of the stroke, and supported by a progressive shock spring.
This means the XPlor PDS shock provides excellent damping
performance and a high resistance against bottoming out. An updated
main piston and new settings provide improved damping
characteristics and match perfectly the reworked front end set-up.
Fully adjustable including high- and low speed compression you can
set the shock to any track and riders preferences.
NEW:
- WP monoshock with reworked main piston and settings for all
models à More comfort and increased bottoming control
TRIPLE CLAMPS
The EXC-F and XC-W models are fitted with highly rigid, forged
triple clamps with an offset of 22 mm, providing a solid grip on
the forks for precise handling. They allow forwards and backwards
adjustment of the handlebars in four different positions for
optimum rider ergonomics.
WHEELS & BRAKES
The KTM wheels use lightweight, CNC machined hubs and high-end,
black GIANT rims to combine maximum stability and ruggedness with
minimum weight.
BRAKES
BREMBO brakes have been the standard equipment on KTM's off-road
range forever, and combined with the lightweight Wave discs with
diameters of 260 mm front and 220 mm on the rear wheel, they remain
the class-leading system when it comes to that crucial combination
of stopping power and a transparent brake feel.
COOLING SYSTEM
KTM's proven cooling system routes the coolant from the cylinder
head through the frame triangle directly to aluminum radiators made
by WP Performance Systems. Due to flow calculated internal
circulation and CFD optimized air ventilation, the system is
superbly efficient. In addition, well thought-out radiator guards
guarantee excellent protection against mud while at the same time
serve as efficient crash protectors. All EXC-F's are fitted with a
radiator fan as a standard feature.
EXHAUST SYSTEM
Noise limits have become challenging for every manufacturer to
meet, prompting KTM to put a lot of effort into the development of
their exhaust systems. All models are fitted with state-of-the-art
exhaust systems which guarantee maximum performance, low weight and
conformity with the mandated noise limits.
HANDLEBAR
The tapered Neken handlebar is made of high-strength aluminum and
can be is mounted in 4 different positions in order to suit
different rider sizes. ODI lock-on grips make grip changes easy and
do not require any wire or glue to be secured.
FOOTPEGS
KTM's advanced ´No Dirt´ foot pegs prevent clogging up the pegs,
even when digging into the side walls of deep ruts. With the
specifically designed pegs for the EXC models the rider stands six
millimeters higher than the ones used on SX versions for increased
ground clearance. They are easy to swap though if so desired in
case a rider prefers a lower position.
SEAT
Ergonomically perfect, the seat was shaped specifically for offroad
requirements and features a new seat cover with foam padded stripes
providing improved comfort and grip.
NEW:
- New seat cover for improved comfort and grip
FUEL TANK
The lightweight, polyethylene tank on 2 strokes and polyamide tank
on 4 strokes allows gauging the remaining fuel with just a quick
glance, thanks to its see-through plastic. The filler cap features
a ¼-turn bayonet mechanism with an orange quick-release button for
extra fast refueling. All fuel-injected models are fitted with an
integrated fuel pump system and an additional fuel level sensor,
which indicates low fuel level via a warning light in the
speedometer.
AIRBOX
The air box design combines maximum protection of the air filter
against soiling with maximum airflow and low intake noise. The
large Twin Air filter is mounted in a stiff cage, which at the same
time holds the system in place, allowing extremely quick filter
changes in the field without tools while minimizing the risk of
incorrect filter installation.
E-STARTER & BATTERY
All models are equipped with proven electric starter systems - a
super beneficial feature once the going gets tough. A new and more
capable, super lightweight 2 Ah Lithium-Ion starter battery
provides even better starting of the engine especially at cold
weather conditions and contributes to the low vehicle weight.
NEW:
- Stronger and super lightweight Lithium-Ion battery for better
starting
BODYWORK & ERGONOMICS
The bodywork design is a direct result of close co-operation
between the KTM development department, Kiska Design and all KTM
factory riders, achieving complete harmony between rider and bike.
The results are well-balanced ergonomics and ideally shaped contact
points, maximum freedom of movement for the rider, a low seat
height and astonishing levels of comfort. Intelligent design is
also manifest in details like the smart solution that guides the
brake hose in the headlight mask, or the I-beam structures of the
front and rear fenders, which help to ensure maximum stability, low
weight and reduced dirt accumulation.
GRAPHICS
A brand new, tailor-made kit of graphics in conjunction with the
Factory style orange frame lets the latest EXC-F and XC-W
generation stand out, making the new bikes immediately recognizable
at a single glance.
NEW:
- New graphics and orange frame for high-end Ready to Race
appearance
2019 KTM 150 XC-W

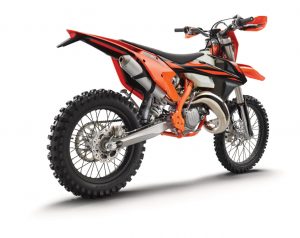

[caption id="attachment_68163" align="aligncenter"
width="300"]
2019 KTM 150 XC-W[/caption]
150 XC-W is the ideal model for youngsters and everybody looking
for the lightest offroad racing bikes on the market. 'XC' means
cross-country. 'W' represents their wide-ratio transmission. 'KTM',
as ever, stands for winning. While the KTM 150 XC-W may be the
lightest racing Enduro's money can buy, it remains a genuine KTM
heavyweight in terms of performance and quality.
CYLINDER
Within the heart of the 150 XC-W engine is a new cylinder that has
a bore of 58mm. Compared to the predecessor model they feature a
reworked exhaust port which is now CNC machined for more precise
timing and improved interaction with the main power valve, which is
made of a new raw part and CNC machined too. The result is improved
power delivery and class-leading performance over the entire
range.
NEW:
- Cylinder with machined exhaust port and new power valve and
high-end precision for improved power delivery and performance
CRANKCASE
The lightweight die-cast engine cases feature a high crankshaft
position located close to the center of gravity, which results in
optimum mass centralization for best ride ability. In addition, the
engine body is extremely compact and this contributes massively to
the low engine weight. For MY19 the seat of the kick start
intermediate gear has been reinforced for better reliability.
Thanks to a new clutch, the new clutch cover is narrower reducing
the engine width by 10mm.
NEW:
- Optimized seat of kick start intermediate gear à improved
reliability
- New clutch cover à reduced engine width
TRANSMISSION
The 6-speed transmission is now made by PANKL. All gears are
totally reworked for optimum function and improved reliability. It
has unchanged gear ratios fitting perfectly to the characteristics
of the engine. An advanced "NO DIRT" gear lever design prevents
dirt from blocking the joint of the lever guaranteeing safe
activation of the transmission.
NEW:
- Reworked 6-speed transmission à better function, improved
reliability
CLUTCH
A newly developed DS (diaphragm steel) clutch features a one-piece
clutch basket combined with the primary gear made of high-strength
billet steel. It guarantees unbeatable reliability and allows a
reduction of the engine width by 10mm due to its compact rivet-less
design. It is fitted with extremely heat-resistant steel carrier
friction discs, which ensure a good disengagement of the clutch.
These are pre-tensioned by means of a diaphragm spring,
substantially reducing the operating force required to pull the
clutch. The Brembo hydraulic system provides easy and precise
operation.
NEW:
- Newly designed DS clutch à very compact and reliable clutch
system, reduced engine width by 10mm
CARBURETOR
The 38 mm Mikuni TMX flat slide carburetor provides smooth and
controllable power all the way up to the rev limitation.
250/300 XC-W TPI
[caption id="attachment_68165" align="aligncenter"
width="300"]

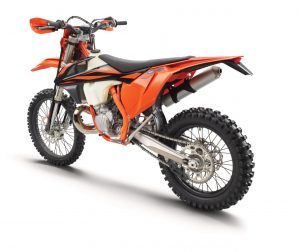

2019 KTM 300 XC-W
TPI[/caption]
THE FUTURE OF 2-STROKE RACING
Combining top performance and outstanding rideability, the KTM 250
and 300 EXC TPI are distinguished by the lowest weight in their
class, intuitive handling, and a unique style, along with the
awesome READY TO RACE performance. TPI stands for "transfer port
injection", and the groundbreaking new 2-stroke technology
represents another major step forward on a global scale, once again
demonstrating KTM's unrelenting and continuous commitment to
2-strokes as such. The benefits to owners are clear: besides huge
improvements in fuel efficiency and clean exhaust emissions, the
electronics do away with the need for re-jetting, no matter the
elevation of the race venue, prevailing weather conditions and the
like. Also, engine lubrication on the TPI models is automatic from
a separate oil tank and electronically controlled oil pump,
obviating the use of pre-mixed fuel-oil mixture.
2019 KTM 250 XC-W TPI
[caption id="attachment_68157" align="aligncenter"
width="300"]

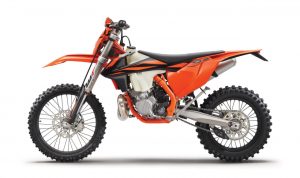

2019 KTM 250 XC-W
TPI[/caption]
A state-of-the-art 2-stroke engine featuring the revolutionary TPI
fuel injection combined with a lightweight and agile chassis make
the 250 EXC TPI the prime choice for extreme offroad use. No
pre-mix thanks to an electronic oil pump, no jetting, but also low
purchase and ownership costs make this bike the absolute top of its
segment.
2019 KTM 300 XC-W TPI
The 300 EXC TPI with its state-of-the-art TPI fuel injection and
its super-agile chassis sets a clear benchmark. Thanks to its
unrivaled performance and rideability it is the first choice when
the going gets really difficult. There is no better power-to-weight
ratio on the market in a standard bike.
ENGINE
The 250cc and 300cc 2-stroke generations have been known and
respected for offering the most powerful 2-stroke performance in
its segment. For MY2018 though, KTM underscored its continuous
commitment to 2-stroke technology with its revolutionary TPI fuel
injection. In combination with its state-of-the-art engine design,
these power plants are even more refined than ever. The compact
2-strokes are a great choice for advanced off-road rider's
conscious of their purchasing and maintenance budget.
CYLINDER
The 250/300cc cylinders are fitted with the sophisticated TVC
exhaust control and have a bore diameter of 66.4 and 72.0 mm. For
the fuel injection, they feature two lateral domes holding the fuel
injectors that inject fuel into the rear transfer ports. This
downstream injection guarantees excellent atomization of the fuel
with the upstreaming air for a highly efficient combustion and
significantly reduced losses of unburned fuel. The engine
management system's intake pressure sensor is connected via a
small-diameter tube in the back of the cylinder.
THROTTLE BODY
The TPI engines are fitted with a 39 mm throttle body made by
Dell'Orto. Power is controlled by a throttle valve while intake air
data is provided to the engine management system by a throttle
position sensor. An adjusting screw allows the idle speed to be set
and a cold start device is provided, opening a bypass to supply
extra air. Oil supplied by the automatic oil pump via an oil
suction pipe is mixed with the incoming air to lubricate the moving
engine parts.
OIL PUMP
An oil pump mounted underneath the
oil tank delivers the lubricant to the throttle body, where minute
quantities are mixed with the incoming air in order to lubricate
the moving engine parts. Using engine speed and throttle position
sensor data, the engine management system's precise electronic
control of the oil pump ensures the perfect amount of oil for any
given conditions, loads and engine speeds is added.
The filler cap assembly for the oil tank is located between the
fuel tank and steering head, utilizing a hose in the upper frame
tube to conduct the oil to the storage container. Automatic,
electronically controlled oil injection reduces exhaust smoke by up
to 50% over conventional pre-mix lubrication, with an average
fuel-to-oil ratio of 1:80. This means the oil capacity of about
three quarters of a quart is sufficient for at least five tanks of
fuel.
BALANCER SHAFT
For optimal mass centralization, the lightweight, die-cast
crankcases hold the clutch shaft and the crankshaft
in a high position close to the center of gravity supporting the
handling of the bike. In addition, this design allows the
implementation of a lateral balancer shaft to minimize vibrations,
enhancing comfort and reducing rider fatigue during long and
demanding offroad events and rallies.
CLUTCH
The KTM XC-W TPI models employ the KTM-developed DDS clutch (damped
diaphragm steel) with a highly resilient steel basket and extremely
heat resistant clutch plates, a design distinguished by a
considerably easier clutch operation than with conventional coil
springs. The diaphragm spring also leaves sufficient space for a
damping system integrated into the clutch hub, which benefits both
traction and durability.
The hydraulic Brembo clutch mechanism is synonymous with a light
action and highly controlled clutch modulation.
ENGINE MANAGEMENT SYSTEM
The KTM 250 XC-W TPI and 300 XC-W TPI models feature the most
modern engine management system (EMS) of any 2-stroke off-road
motorcycle. The electronic control unit is located below the seat
utilizing various sensor data such as intake and ambient air
pressure, throttle valve position and water temperature, the
control unit optimizes ignition timing and the amount of fuel to
inject. Thanks to its automatic altitude and temperature
compensation, there is no need for the rider or mechanic to set up
the bike for the prevailing environmental conditions. An optional
map select switch allows the rider to select an alternate map,
providing a smoother power delivery. In
addition, for the 300 XC-W TPI the dealer can flash a RACE map
to be activated as the alternative
map.
GENERATOR
In order to accommodate the power requirements of the upgraded
engine management system, the TPI models are fitted with a powerful
generator, rated at 196 W, just like on the EXC-F 4-stroke models,
as well as the EXC-F voltage regulator.
TRANSMISSION
The rugged 6-speed transmission features widely spaced gear ratios
optimized for offroad duty. It provides precise and easy shifting.
The KTM 'No Dirt' gear shift lever design prevents dirt from
blocking the joint of the gear shift lever for safe and reliable
shifting in any conditions.
4-STROKES EXC-F DUAL SPORT MODEL RANGE
Offering highly competitive extreme off-road bikes while meeting
the requirements to be 50 state street legal. The comprehensive
line-up of KTM 4-stroke EXC-F ranges from the nimble 250 EXC-F and
350 EXC-F to the extraordinary 500 EXC-F powerhouse.
State-of-the-art engines featuring the latest electronic fuel
injection provide not only the customary, high power levels
expected from a genuine KTM Dual Sport. With a compact architecture
optimized down to minute details, the powerhouses also contribute
significantly to the latest round of weight savings and centralized
masses, supporting the state-of-the-art chassis in delivering
previously inconceivable levels of rideability. EXC-F Intake
Sophisticated Velocity Focused Intake reed Valve Set in the Intake
Boot increases torque and throttle response and reduces noise.
Comprising three models which are very different and yet united by
KTM's pursuit of quality, the EXC-F range of off-road models are
street legal.
2019 KTM 250 EXC-F
[caption id="attachment_68156" align="aligncenter"
width="300"]

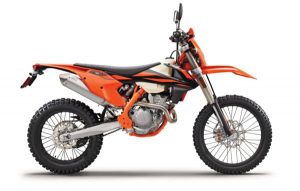

2019 KTM 250 EXC-F[/caption]
The smallest model of the KTM 4-stroke range is a great choice for
motivated amateurs and ambitious pros alike, with its super
compact, powerful engine, minimal weight and well-centered masses
providing a lively performance and fantastic handling. Sharing many
components with the successful 350 EXC-F engine, this power plant
offers class-leading performance with plenty of torque thanks to
its advanced fuel injection system. The 250 is easy to ride, agile
and highly controllable for complete rider confidence, with state
of the art technology for great throttle response and controlled
power delivery.
ENGINE
The 250 EXC-F DOHC engine has a very compact and lightweight design
and delivers class-leading torque and power figures across the
entire power band all the way up to 12,800rpm. Its compact
architecture contributes to an excellent mass centralization,
supporting the ride ability of the bike. In addition, it only
weighs 60.8 lb. That is including the incredibly beneficial
electric starter.
CYLINDER HEAD
The centerpiece of the compact DOHC (double overhead camshaft)
engine is the cutting-edge cylinder head. It features two overhead
camshafts, which activate the titanium valves via super-light
finger followers with a hard DLC coating.
TRANSMISSION
The 250 4-stroke transmits its unrelenting power through a 6-speed
transmission with gear ratios specifically optimized for its power
delivery. An advanced KTM 'No Dirt' gear lever design prevents dirt
from blocking the joint of the lever, contributing to secure gear
engagement. All KTM 4-stroke EXC-F's feature a gear sensor to sync
up the engine's power curve to the currently selected gear as well
as the surface conditions.
CLUTCH
Actuated by BREMBO hydraulics, the clutch is distinguished by
consistently precise control across the entire operating
temperature range. The KTM-developed DDS clutch employs a diaphragm
spring instead of the usual coil springs for a significantly easier
clutch action, while providing sufficient space for a damping
system to be integrated into the clutch hub. The added benefit is
increased traction and outstanding clutch durability.
ELECTRIC STARTER
The standard E-starter provides the 250 EXC-F with a clear
advantage in dicey race situations. Engaged by the proven KTM
starter drive and powered by an even stronger, high capacity and
lightweight lithium ion battery, a reliable Mitsuba starter motor
makes sure the 250 is fired up reliably and easily in any
conditions at the push of a button.
ENGINE MANAGEMENT SYSTEM
The state-of-the-art Keihin Engine Management System with
electronic fuel injection features a 42mm throttle body. Its unique
injector position ensures a very responsive power delivery.
Separate systems automatically take care of cold starts and idle
adjustment.
2019 KTM 350 EXC-F
[caption id="attachment_68160" align="aligncenter"
width="300"]

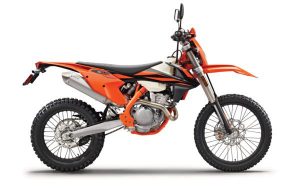

2019 KTM 350 EXC-F[/caption]
When optimum ride ability and maximum offroad performance are
called for, there is no substitute for the KTM 350 EXC-F. Combining
the handling of a 250 with power closely approaching 450 levels,
its compact, powerful DOHC engine, low weight and perfectly tuned
suspension make sure this machine masters each and every challenge
with ease. And thanks to its playful agility, the 350 EXC-F retains
the advantage when the going gets really tough. The longer the
distance, the more riders on all levels benefit from its
low-fatigue design for maximum riding fun.
ENGINE
The 350 cm³ 4-stroke engine with a state-of-the-art electronic fuel
injection system offers a very wide power band and is distinguished
by a dynamic but low-fatigue power delivery. At the core: a highly
sophisticated DOHC cylinder head with DLC-coated finger followers
and flow-optimized ports, as well as a highly rigid, box-type, 88
mm piston. At the same time, the engine's compact architecture
helps to group the masses tightly around the bike's center of
gravity for outstanding ride ability. All of this makes the 350
EXC-F brilliantly suited to both amateur riders as well as
consummate pros.
CYLINDER HEAD
The centerpiece of the compact DOHC (double overhead camshaft)
engine is the cutting-edge cylinder head. It features two overhead
camshafts, which activate the titanium valves via super-light
finger followers with a hard DLC coating.
TRANSMISSION
A rugged 6-speed transmission, wide gear ratios and a special
low-friction coating on the shift forks serves to transmit the
power of the 350 EXC-F to the rear wheel. The gear lever is
protected by its advanced KTM 'No Dirt' design, preventing debris
from blocking its joint for a secure gear engagement at all times.
A gear sensor syncs up the engine's power curve to the currently
selected gear as well as the surface conditions.
CLUTCH
Actuated by BREMBO hydraulics, the clutch is distinguished by
consistently precise control across the entire operating
temperature range. The KTM-developed DDS clutch employs a diaphragm
spring instead of the usual coil springs for a significantly easier
clutch action, while providing sufficient space for a damping
system to be integrated into the clutch hub. The added benefit is
increased traction and outstanding clutch durability.
ELECTRIC STARTER
Fitted as standard with a rugged electric starter, the 350 EXC-F
will fire up with the greatest reliability, a great benefit
especially in demanding offroad races. The powerful Mitsuba starter
motor is powered by a new, even stronger lightweight lithium ion
battery. Riders insisting on a mechanical back-up may retrofit the
KTM PowerParts kick-starter kit.
ENGINE MANAGEMENT SYSTEM
The state-of-the-art Keihin Engine Management System with
electronic fuel injection features a 42mm throttle body. Its unique
injector position ensures a very responsive power delivery.
Separate systems automatically take care of cold starts and idle
adjustment.

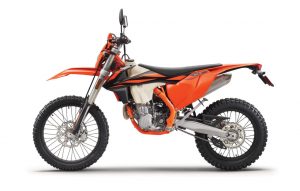

2019 KTM 500 EXC-F
[caption id="attachment_68161" align="aligncenter"
width="300"]
2019 KTM 500 EXC-F[/caption]
The most powerful off-road competition bike on the market, the KTM
500 EXC-F combines raw 4-stroke punch with outstanding rideability,
thanks to its high tech, large-displacement engine sitting in a
chassis optimized for low weight and outstanding agility. With an
incredible power-to-weight ratio, this awesome 510 cm³ SOHC single
provides nothing less than the most dynamic enduro experience
available, not the least due to its sophisticated mass
centralization and geometry, made possible in part by a highly
compact engine layout. The extended levels of rideability afforded
by the expert-grade chassis are a necessity in order to
successfully tame this kind of performance, for a true racing
advantage.
ENGINE
The 500 EXC-F's fuel-injected powerhouse is the most compact and
lightest 500 on the market, while delivering awesome torque and
power across the power band. The four valves of the SOHC cylinder
head are controlled by extremely rigid rocker arms while flow
optimized ports ensure an efficient gas exchange. Vibrations are
kept in check by a carefully optimized crank drive with plain
bearings, as well as a multifunctional balancer shaft. The cutting
edge Keihin engine management system with electronic fuel injection
and a 42 mm throttle body ensure an astonishing response.
CYLINDER HEAD
Inside the SOHC cylinder head, an overhead camshaft controls four
ultra-lightweight titanium valves via extremely rigid rocker arms,
which are DLC-coated on the intake side. A configuration like this
allows high engine speeds and powerful engine characteristics.
TRANSMISSION
The 6-speed transmission of the 500 EXC-F is fitted with all the
latest trimmings, from the gear sensor supporting the engine
management, to friction optimized shift forks and gear wheels, to
the ingenious KTM 'No Dirt' gear lever, unfazed by any kind of
debris for a secure gear engagement.
CLUTCH
Actuated by BREMBO hydraulics, the clutch is distinguished by
consistently precise control across the entire operating
temperature range. The KTM-developed DDS clutch employs a diaphragm
spring instead of the usual coil springs for a significantly easier
clutch action, while providing sufficient space for a damping
system to be integrated into the clutch hub. The added benefit is
increased traction and outstanding clutch durability.
ELECTRIC STARTER
The standard E-starter provides the 500 EXC-F with a clear
advantage in dicey race situations. Engaged by the proven KTM
starter drive and powered by an even stronger, high-capacity and
lightweight lithium ion battery, a reliable starter motor makes
sure the engine is fired up reliably and easily in any conditions
at the push of a button.
ENGINE MANAGEMENT SYSTEM
The state-of-the-art Keihin Engine Management System with
electronic fuel injection features a 42mm throttle body. Its unique
injector position ensures a very responsive power delivery.
Separate systems automatically take care of cold starts and idle
adjustment.
